Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .
  2. Remove the fold-down seat back from the seat frame.
  3. Open the J-retainer at the bottom edge of the seat back.

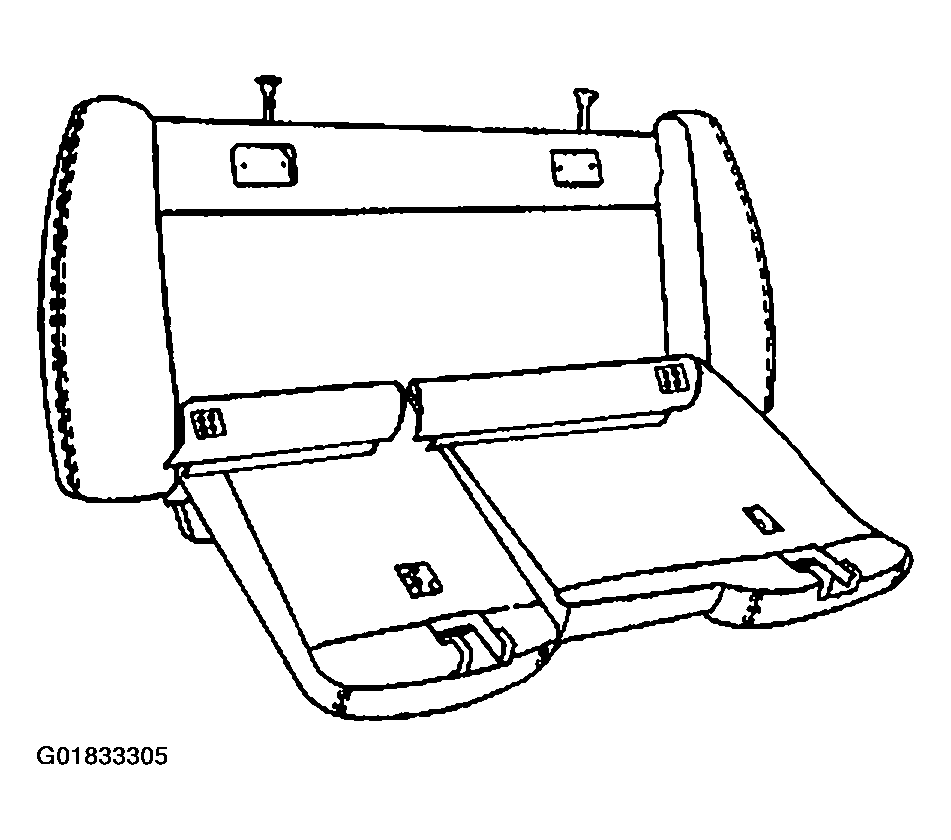

    Fig 1: Removing Fold-Down Seat Back From Seat Frame
    G01833305Courtesy of GENERAL MOTORS CORP.
  4. Remove the trim staples.

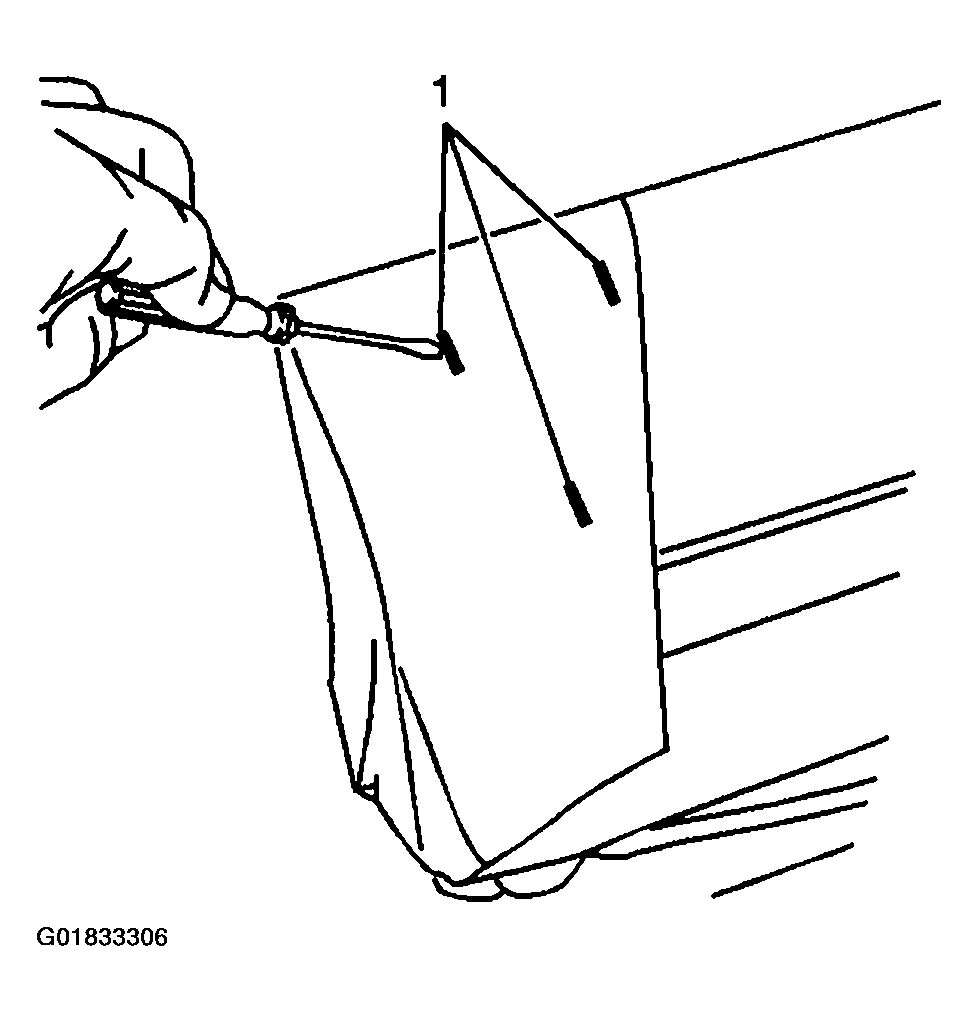

    Fig 2: Removing Trim Staples
    G01833306Courtesy of GENERAL MOTORS CORP.
  5. Pull up the seat trim to expose the latch.
  6. Remove the seat back pad.

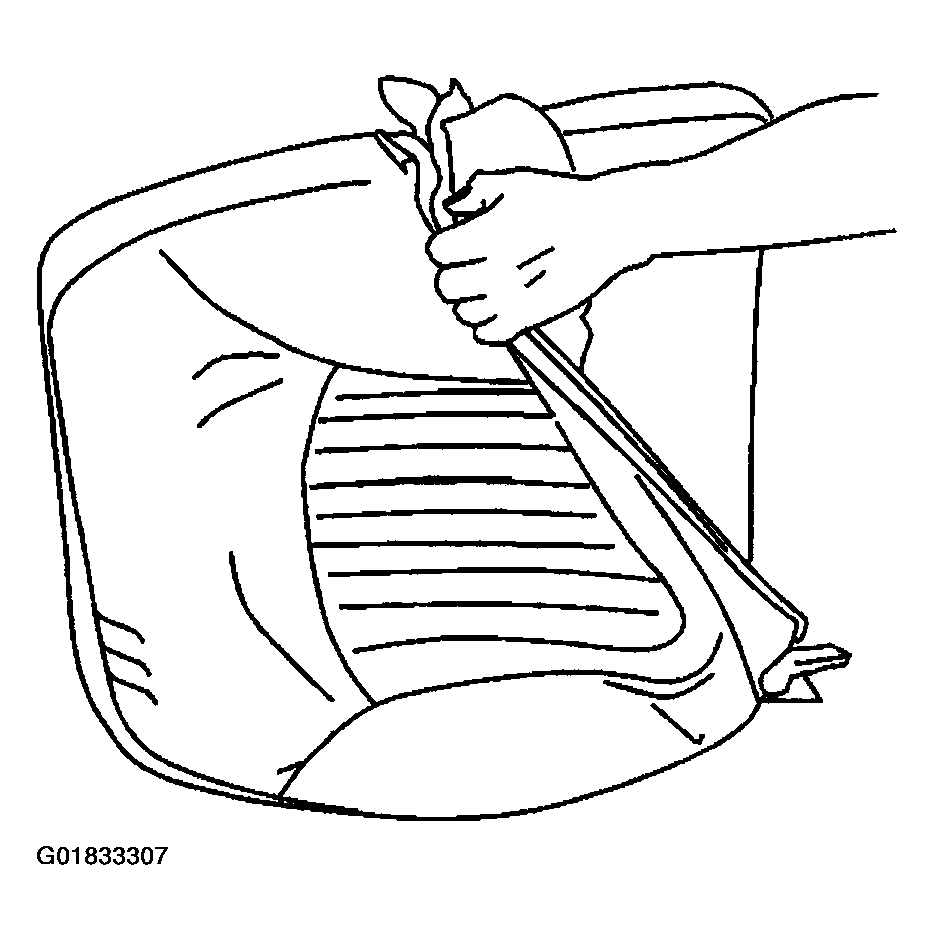

    Fig 3: Removing Seat Back Pad
    G01833307Courtesy of GENERAL MOTORS CORP.
  7. Remove the latch screws (1).
  8. Lift up the latch and disconnect the release cable.
  9. Remove the latch.
  10. Drill out the rivets (2) on the cable strap anchor.

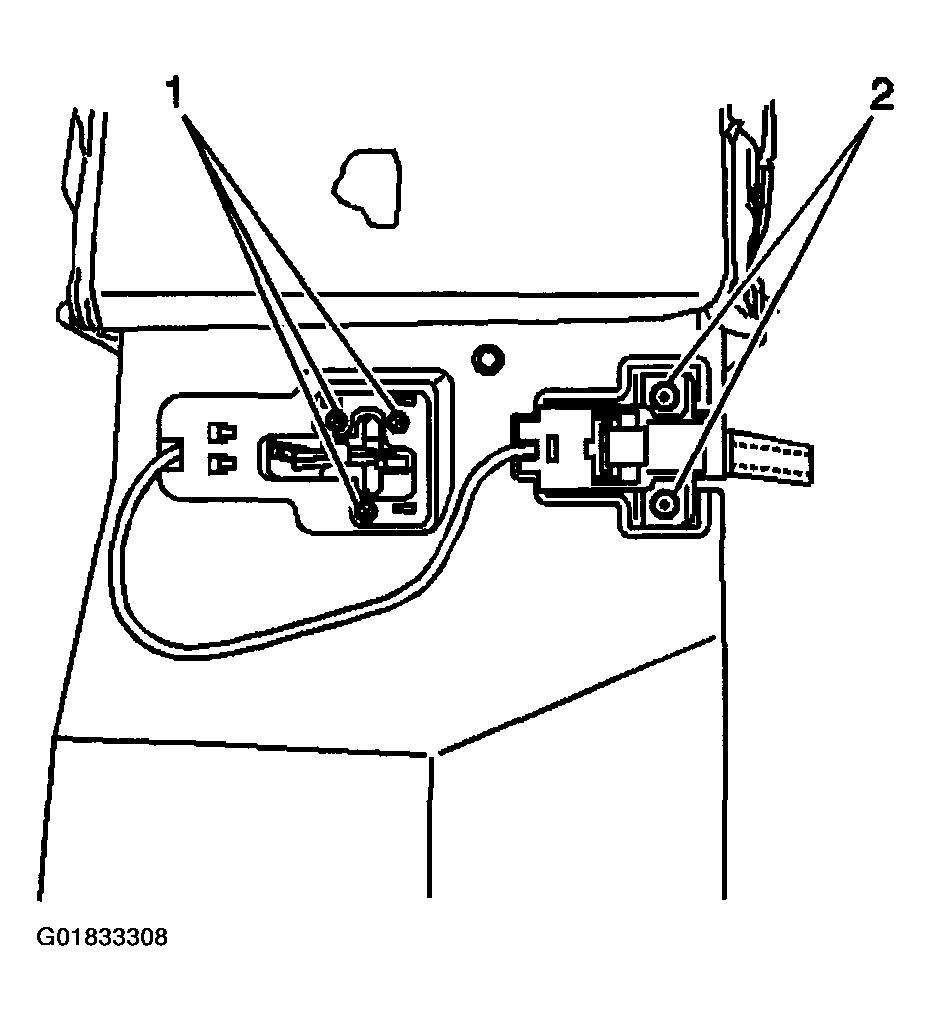

    Fig 4: Removing Latch Screws And Rivets
    G01833308Courtesy of GENERAL MOTORS CORP.
  11. Use a flat-bladed tool to pry the cable (2) from the bracket (1).
  12. Remove the cable assembly from the seat back.

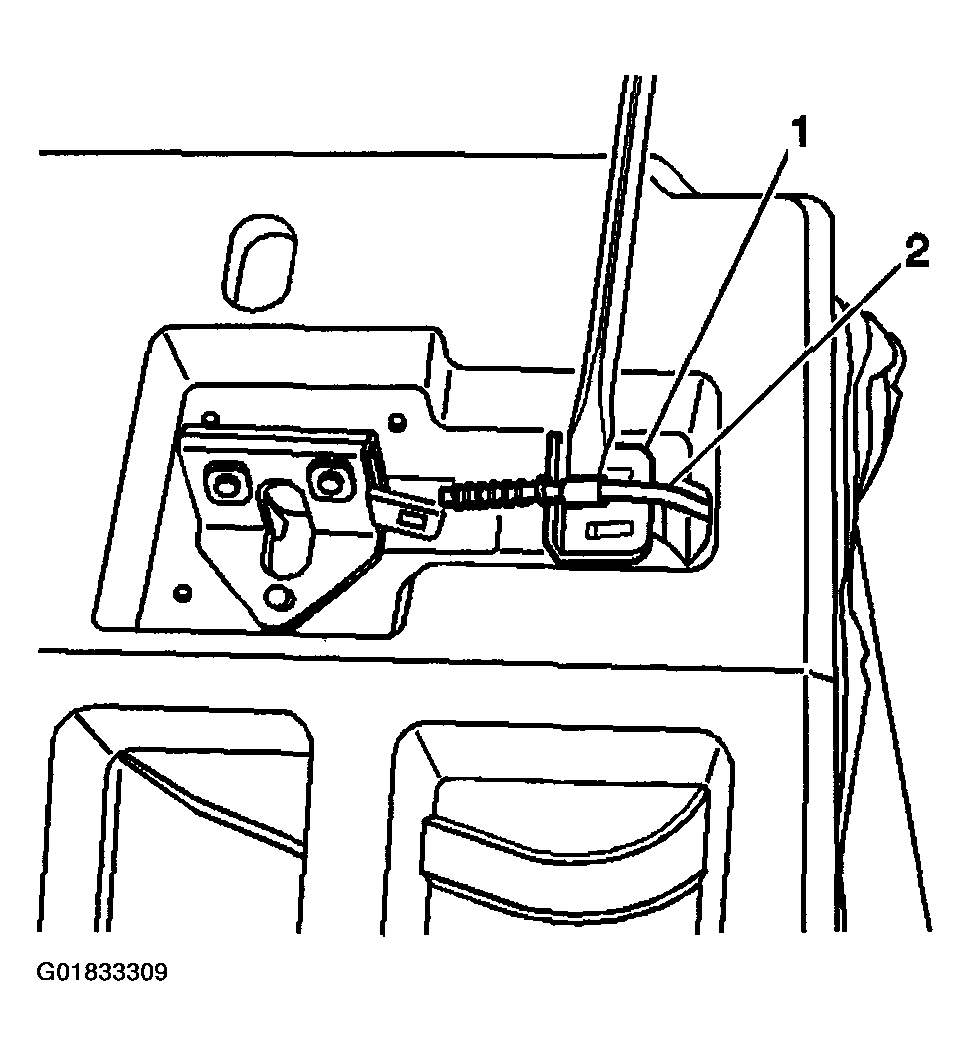

    Fig 5: Using A Flat-Bladed Tool To Pry Cable From Bracket
    G01833309Courtesy of GENERAL MOTORS CORP.
