Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cable assembly in the seat back.
  2. Install rivets (2) in the cable assembly anchor.
  3. Connect the latch to the release cable.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the latch screws (1).

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  5. Install the seat back pad.

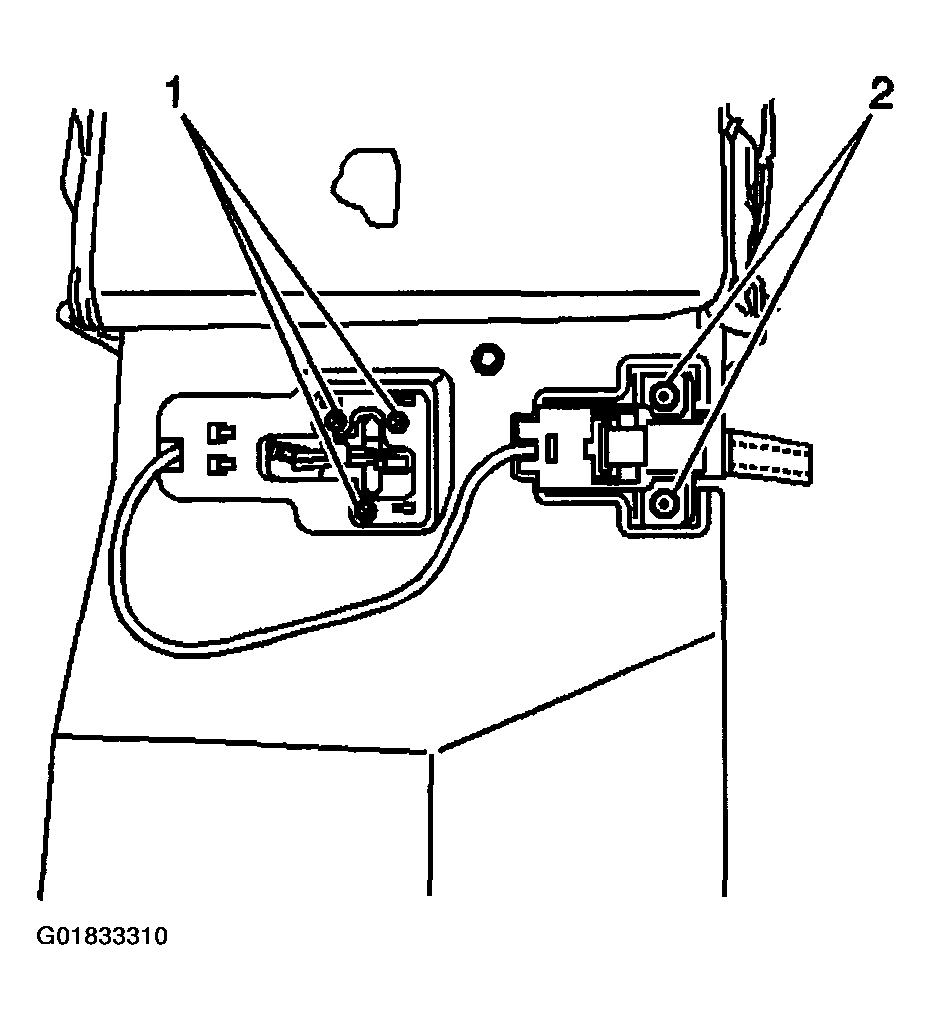

    Fig 1: Installing Latch Screws And Rivets
    G01833310Courtesy of GENERAL MOTORS CORP.
  6. Pull down the seat back trim.

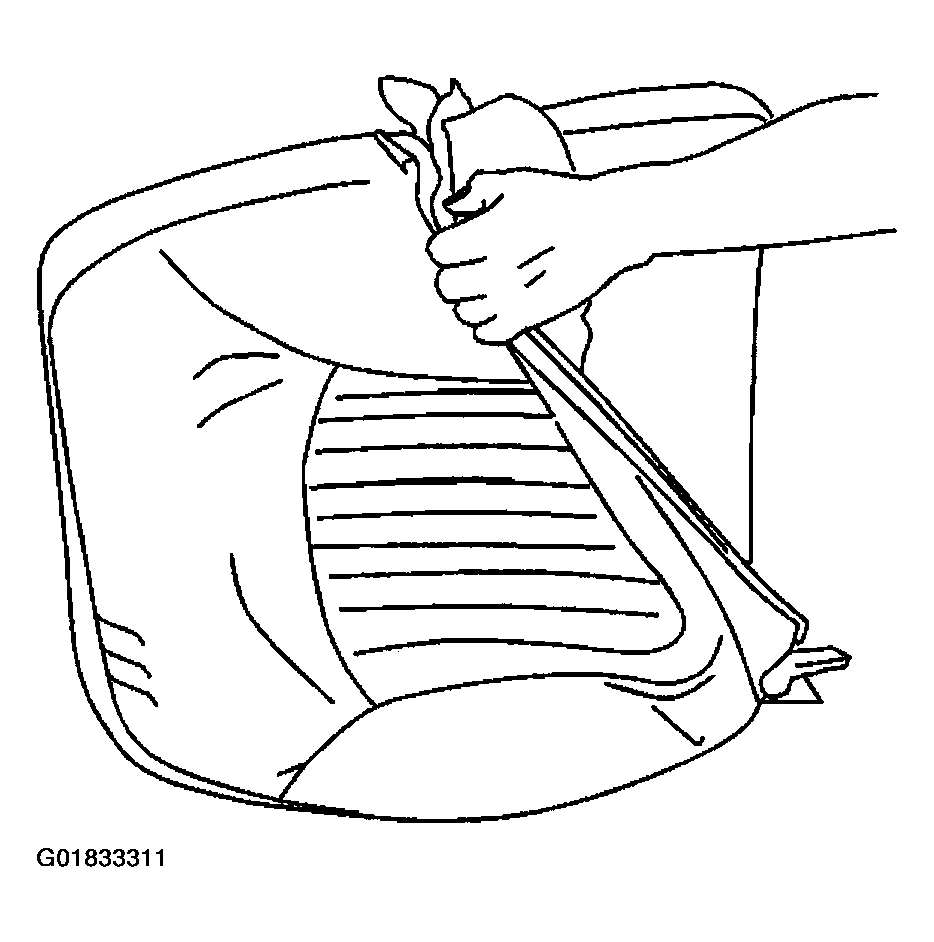

    Fig 2: Pulling Down Seat Back Trim
    G01833311Courtesy of GENERAL MOTORS CORP.
  7. Install the trim staples (1).
  8. Install the J-retainer at the bottom of the seat back.
  9. Install the fold-down seat back on the seat frame.
  10. Install the seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .

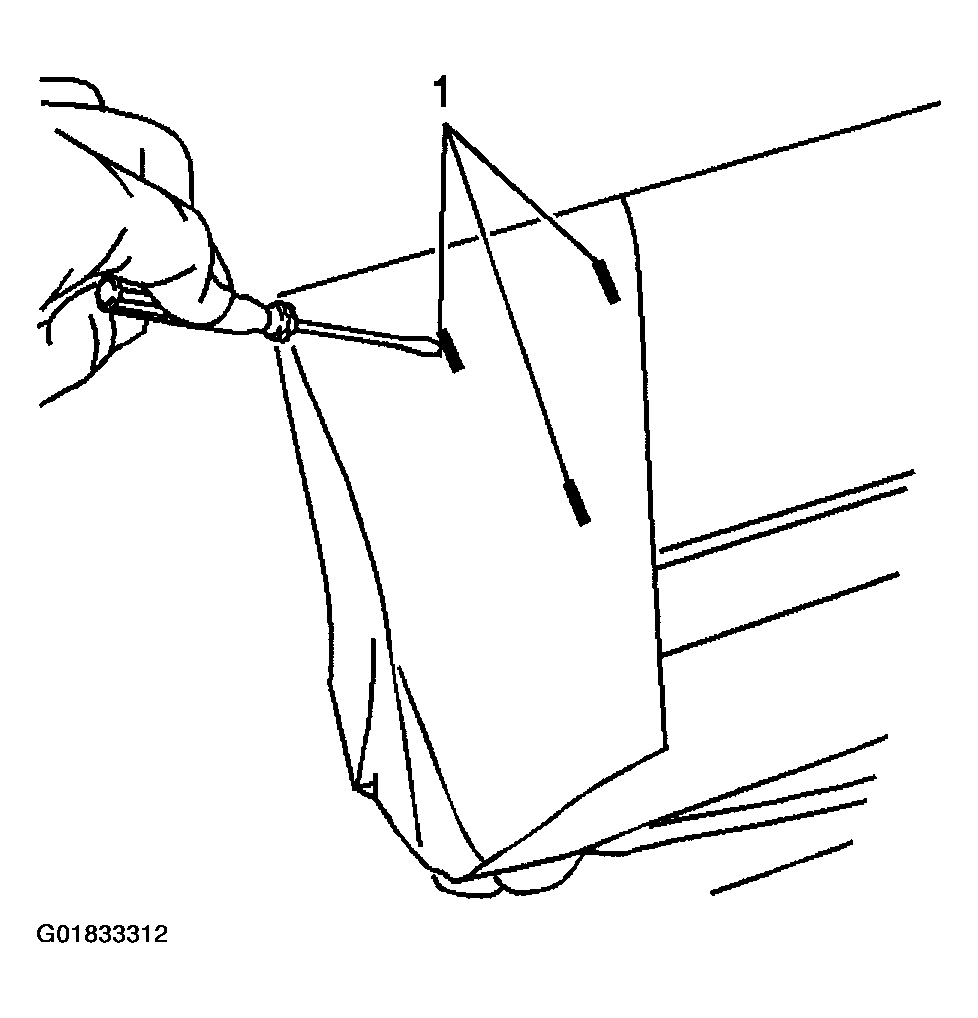

    Fig 3: Installing Trim Staples
    G01833312Courtesy of GENERAL MOTORS CORP.
