Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .
  2. Remove the rear seat back pad. Refer to Seat Back Replacement - Rear (Folding)  or Seat Back Pad Replacement - Rear (Non-Folding) .
  3. Remove the seat back pad frame.

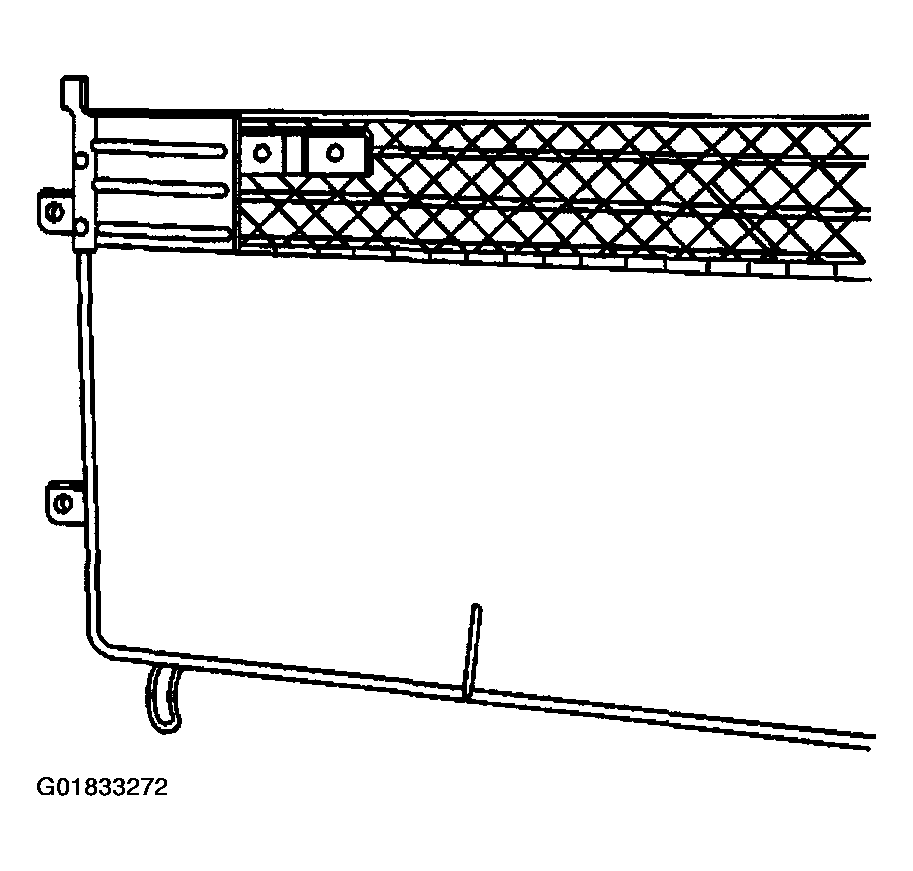

    Fig 1: Removing Seat Back Pad Frame
    G01833272Courtesy of GENERAL MOTORS CORP.
