Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back frame.
  2. Install the rear seat back pad. Refer to Seat Back Replacement - Rear (Folding)  or Seat Back Pad Replacement - Rear (Non-Folding) .
  3. Install the rear seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .

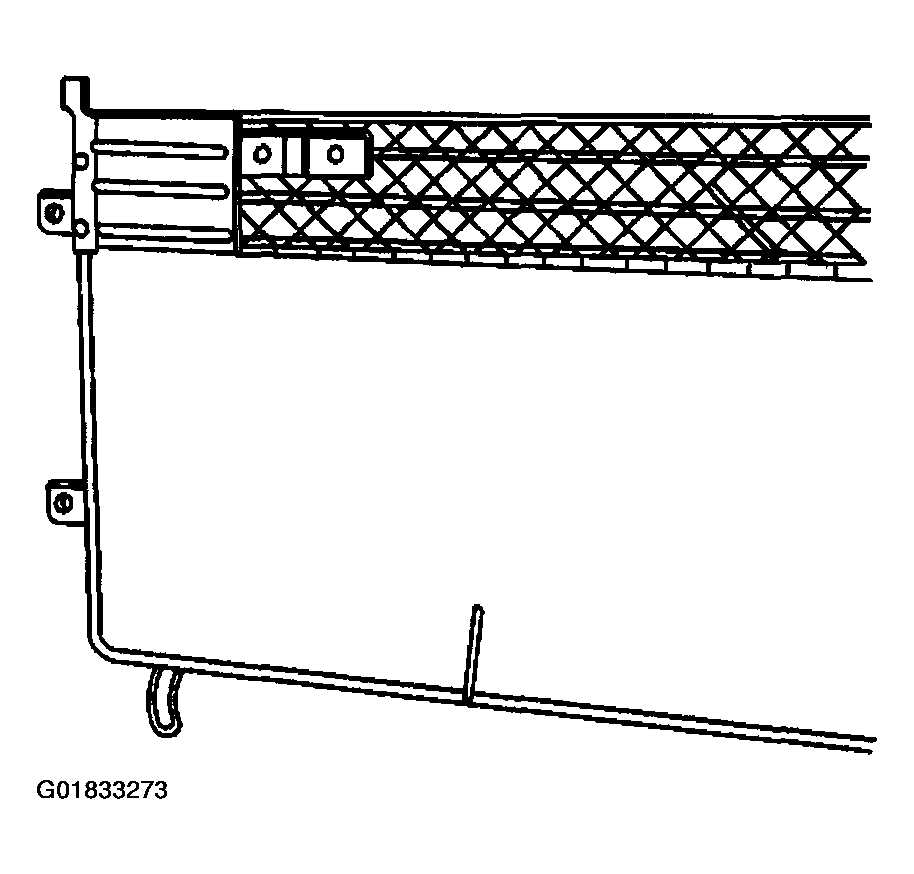

    Fig 1: Installing Seat Back Frame
    G01833273Courtesy of GENERAL MOTORS CORP.
