Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .
  2. Use J 38778  to remove each seat back from the center pivot bracket.

    Remove the rear fold down seat backs from the seat frame.

  3. Remove the seat back latch striker. Refer to Seat Back Latch Striker Replacement - Rear Folding .
  4. Remove the bolsters from the seat back frame. Refer to Seat Back Bolster Replacement - Rear Split Folding .

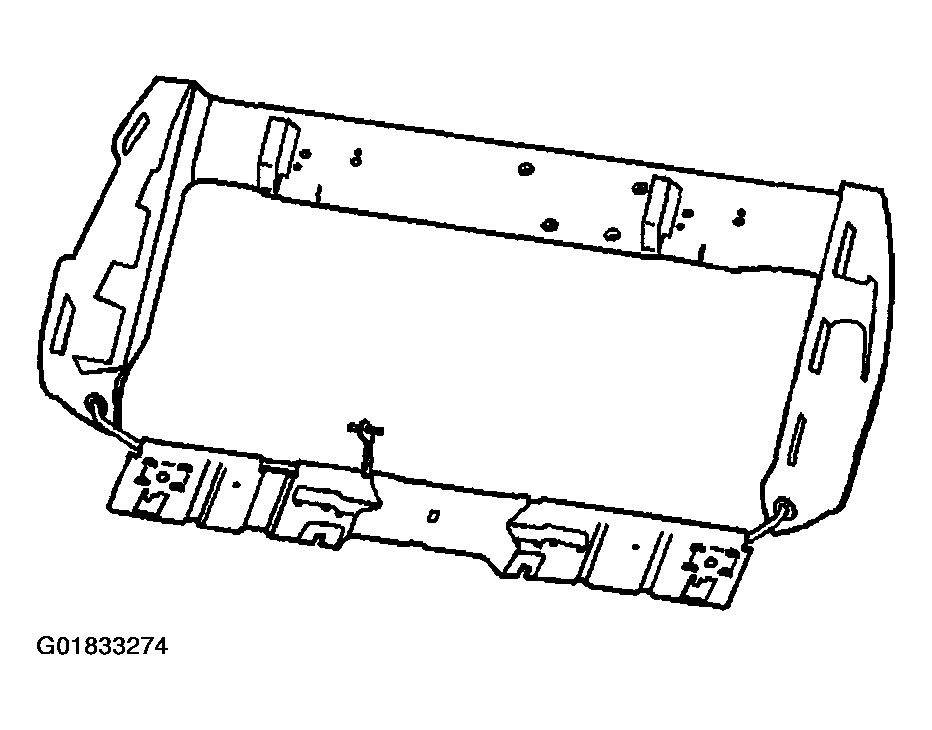

    Fig 1: Removing Bolsters From Seat Back Frame
    G01833274Courtesy of GENERAL MOTORS CORP.
