Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back recliner. Refer to Seat Back Recliner Replacement - Front .
  2. Remove the front seat back cover. Refer to Seat Back Cover Replacement - Front .
  3. Remove the front seat back frame from the seat back pad.

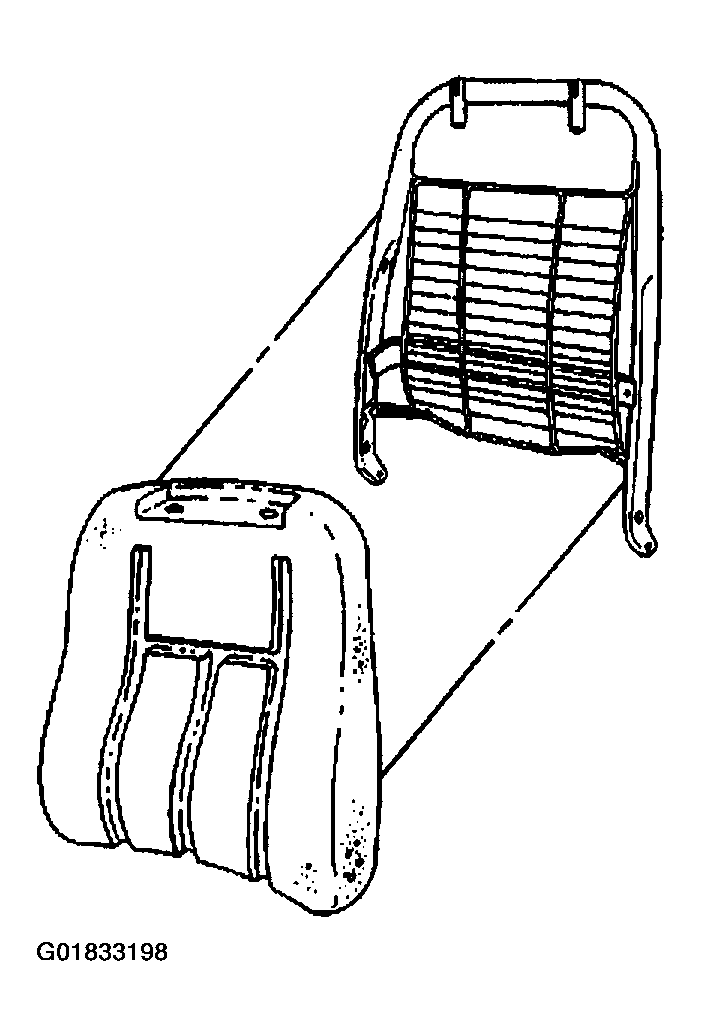

    Fig 1: Removing Front Seat Back Frame From Seat Back Pad
    G01833198Courtesy of GENERAL MOTORS CORP.
