Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .
  2. Remove the hog rings connecting the cover to the frame.

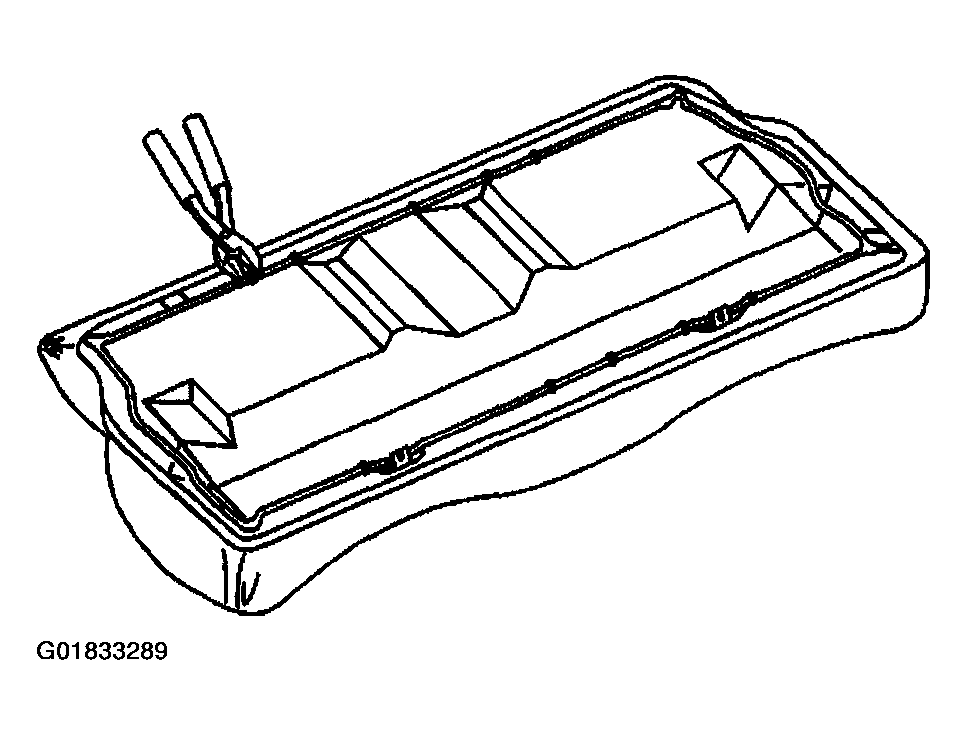

    Fig 1: Removing Hog Rings Connecting Cover To Frame
    G01833289Courtesy of GENERAL MOTORS CORP.
  3. Reach inside of the rear seat back cover and unfasten the hook and loop retainers securing the seat back cover to the pad.
  4. Remove the cover from the frame.

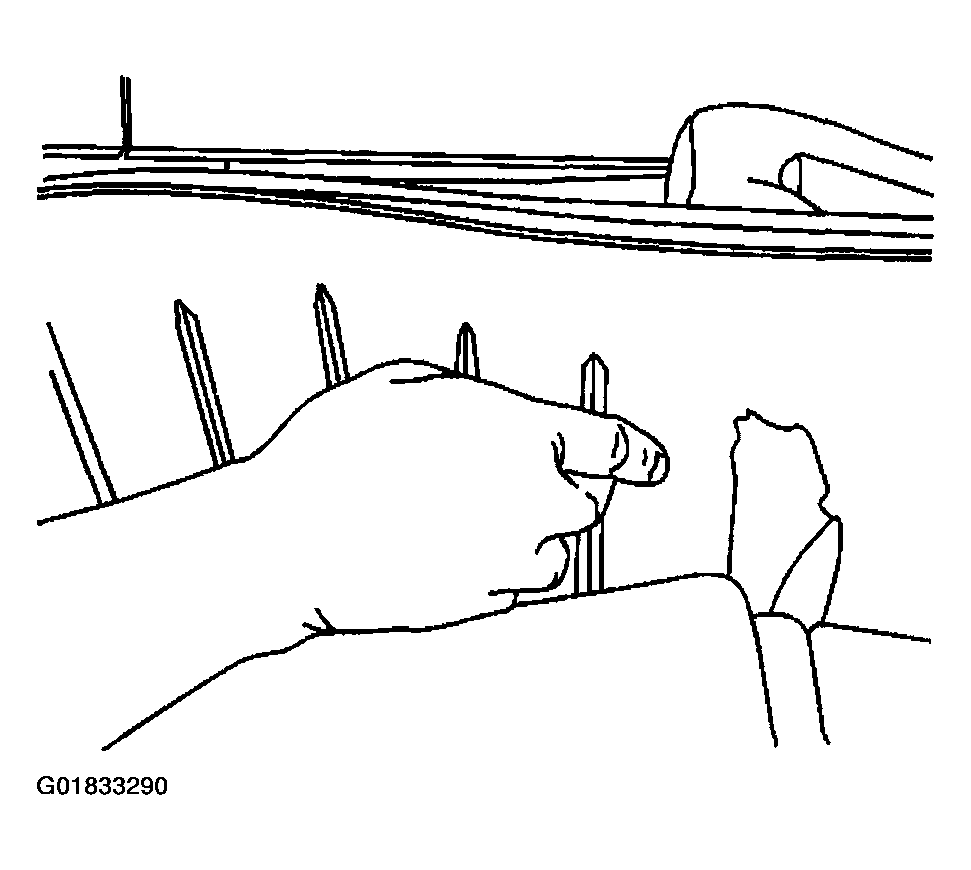

    Fig 2: Unfastening Hook And Loop Retainers Securing Seat Back Cover To Pad
    G01833290Courtesy of GENERAL MOTORS CORP.
