Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cover over the frame.

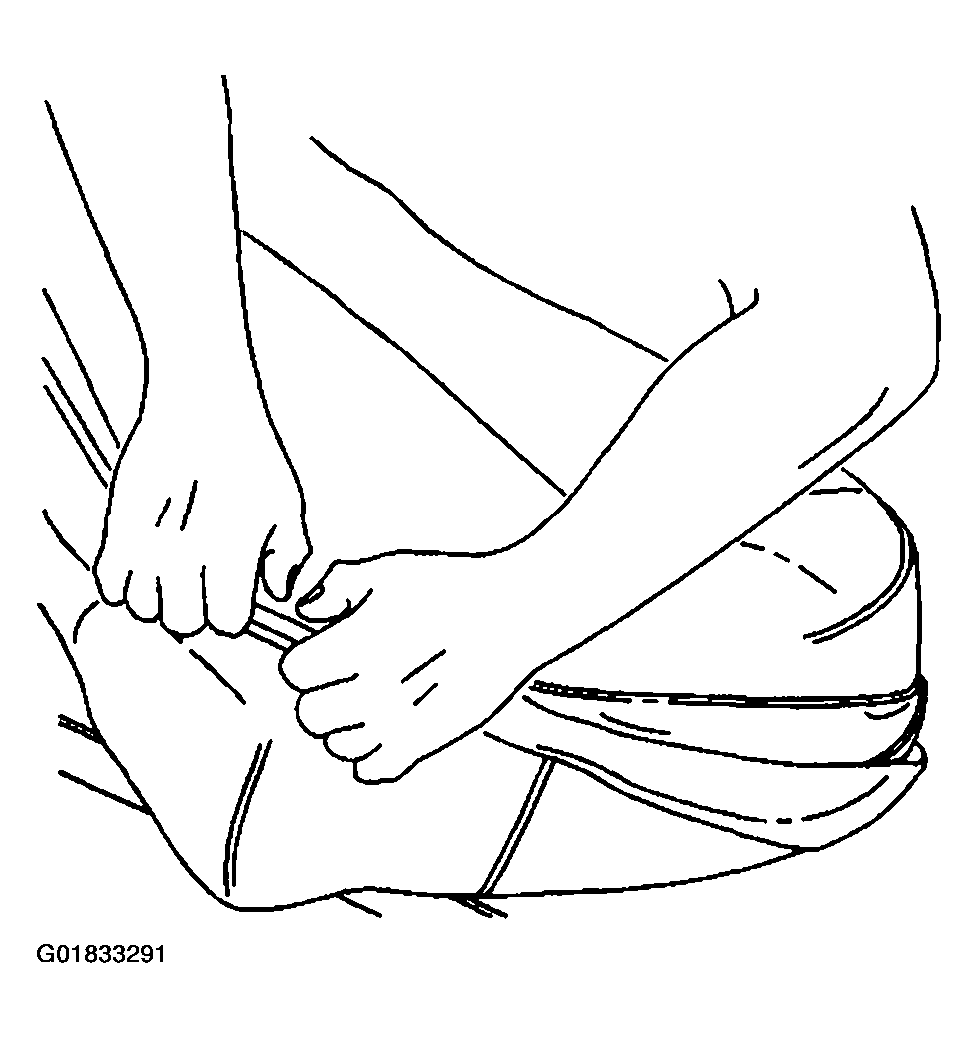

    Fig 1: Installing Cover Over Frame
    G01833291Courtesy of GENERAL MOTORS CORP.
  2. Install the hog rings.
  3. Close the J-retainers on the seat back support bolsters.
  4. Install the seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .

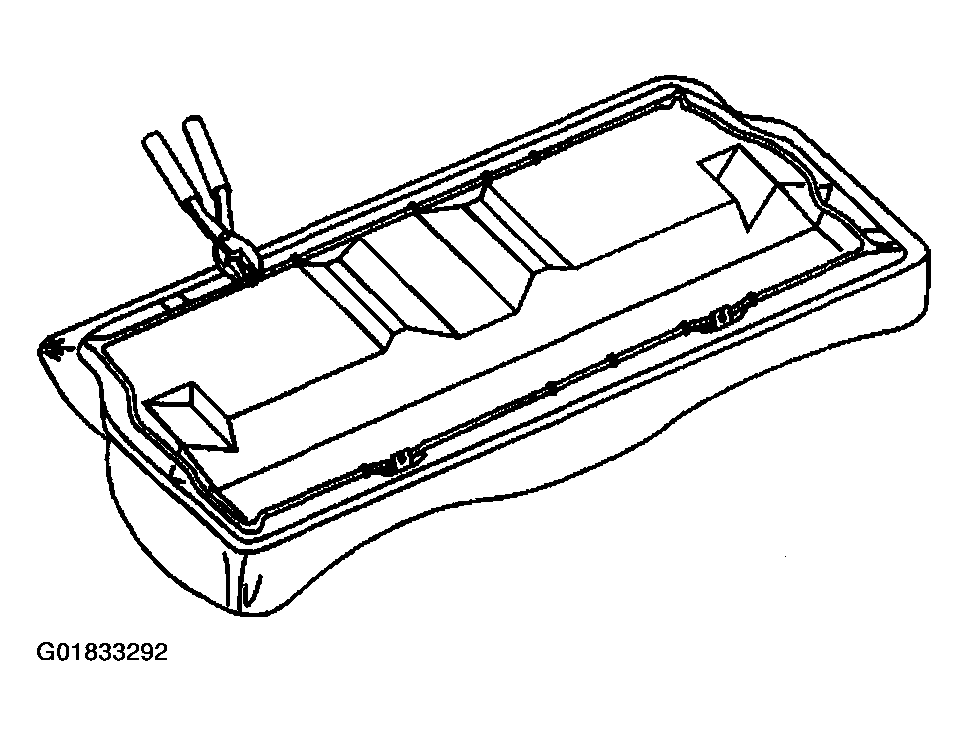

    Fig 2: Closing J-Retainers On Seat Back Support Bolsters
    G01833292Courtesy of GENERAL MOTORS CORP.
