Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .
  2. Remove the rear seat back from the frame.
  3. Remove the J-hook retainer at the bottom of the seat.
  4. If seat with armrest, remove the seat back armrest. Refer to Armrest Replacement - Rear Seat (Folding)  or Armrest Replacement - Rear Seat (Non-Folding) .

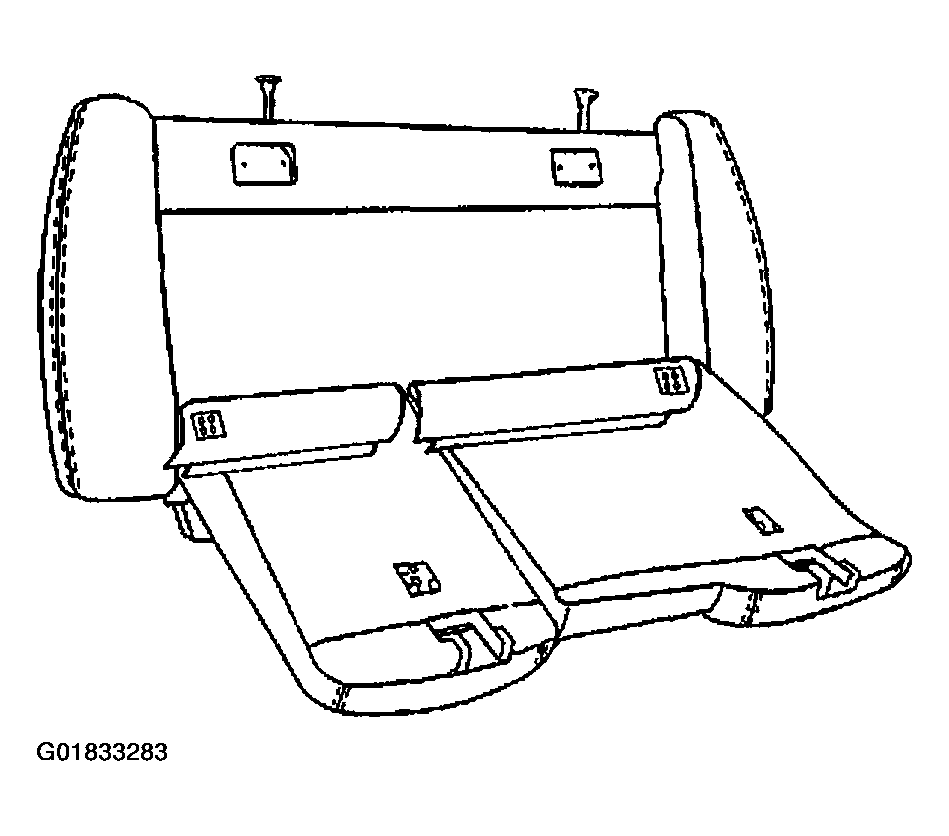

    Fig 1: Removing Rear Seat Back From Frame
    G01833283Courtesy of GENERAL MOTORS CORP.
  5. Remove the trim staples from the seat back cover.

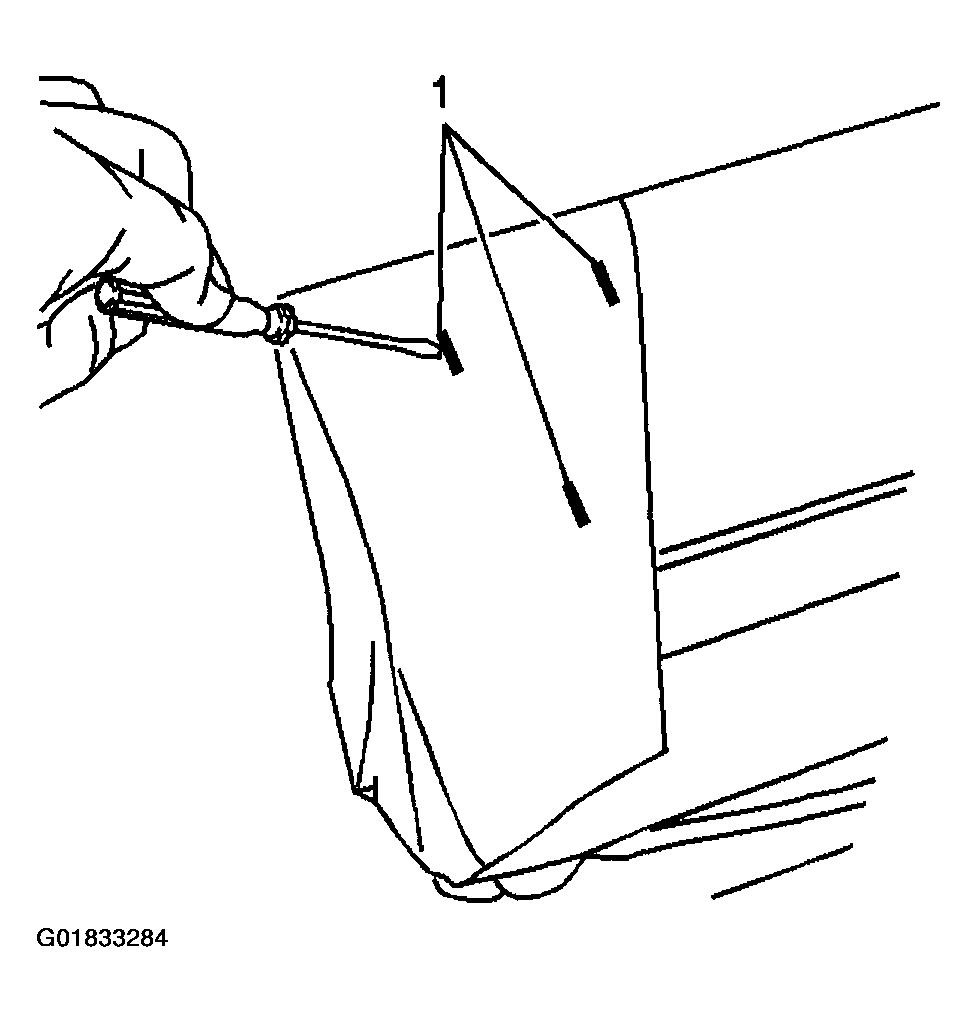

    Fig 2: Removing Trim Staples From Seat Back Cover
    G01833284Courtesy of GENERAL MOTORS CORP.
  6. Carefully separate the hook and loop retainers securing the seat back cover to the seat back pad.

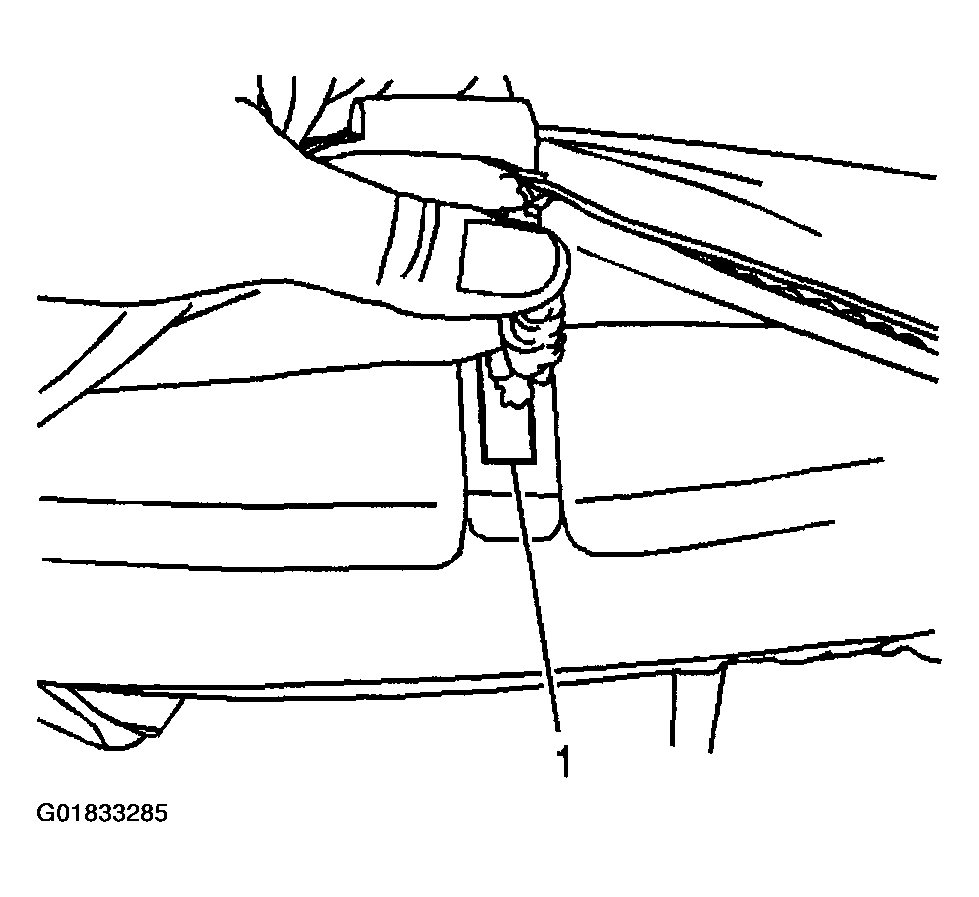

    Fig 3: Carefully Separating Hook And Loop Retainers Securing Seat Back Cover To Seat Back Pad
    G01833285Courtesy of GENERAL MOTORS CORP.
  7. Pull the seat back cover up and off the seat back.

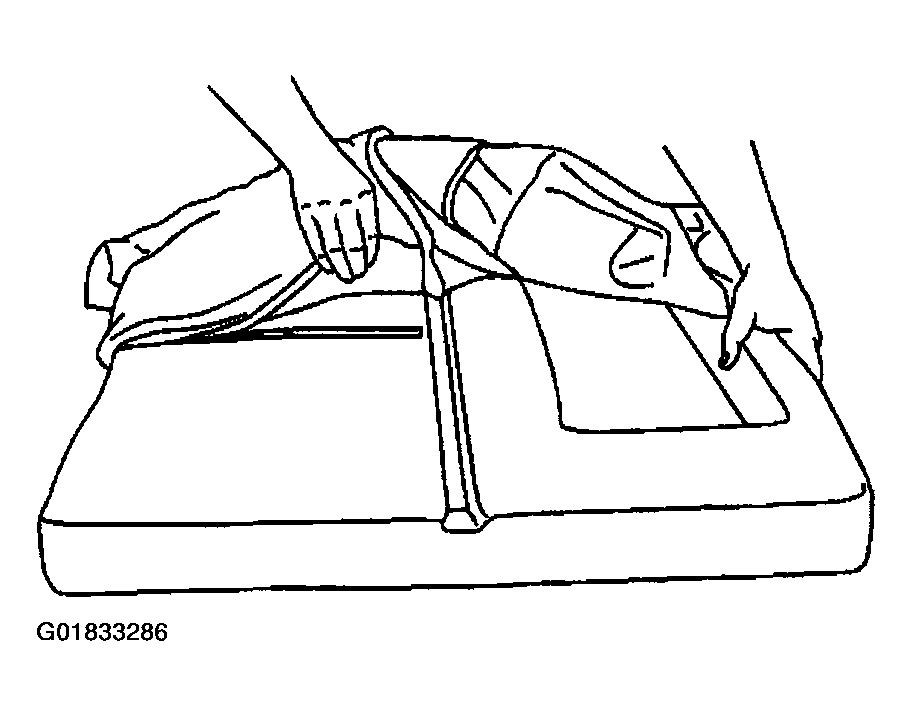

    Fig 4: Pulling Seat Back Cover Up And Off Seat Back
    G01833286Courtesy of GENERAL MOTORS CORP.
