Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the seat back cover down over the seat back.

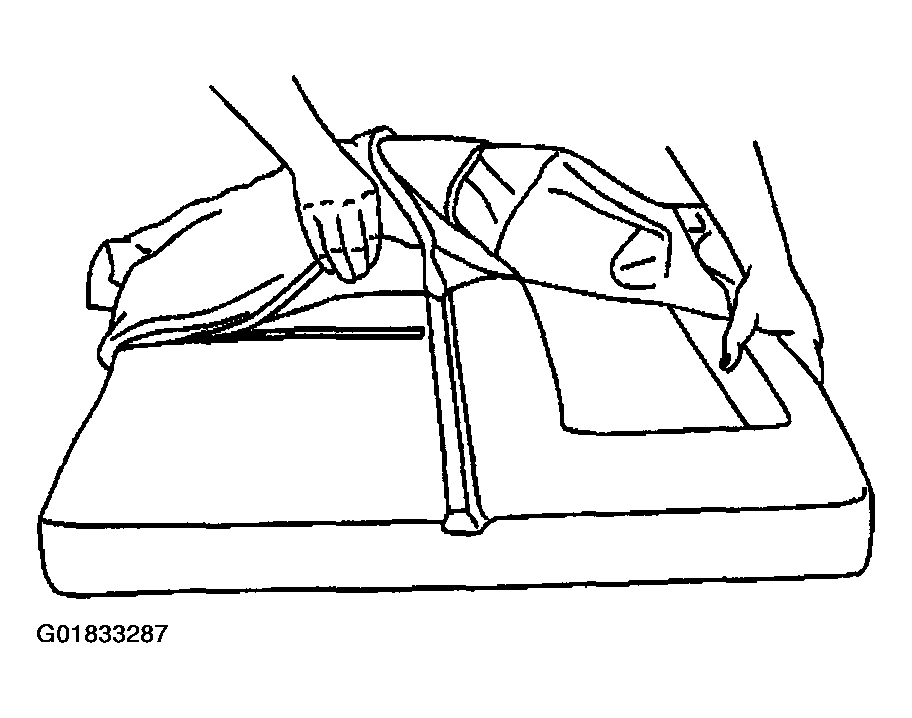

    Fig 1: Pulling Seat Back Cover Down Over Seat Back
    G01833287Courtesy of GENERAL MOTORS CORP.
  2. Firmly press the seat back cover to the seat back pad to secure the hook and loop retainers.
  3. Install the trim staples to the seat back cover.
  4. Install the J-hook retainer at the bottom of the seat back.
  5. If equipped, install the seat back armrest. Refer to Armrest Replacement - Rear Seat (Folding)  or Armrest Replacement - Rear Seat (Non-Folding) .
  6. Install the rear seat back to the frame.
  7. Install the seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .

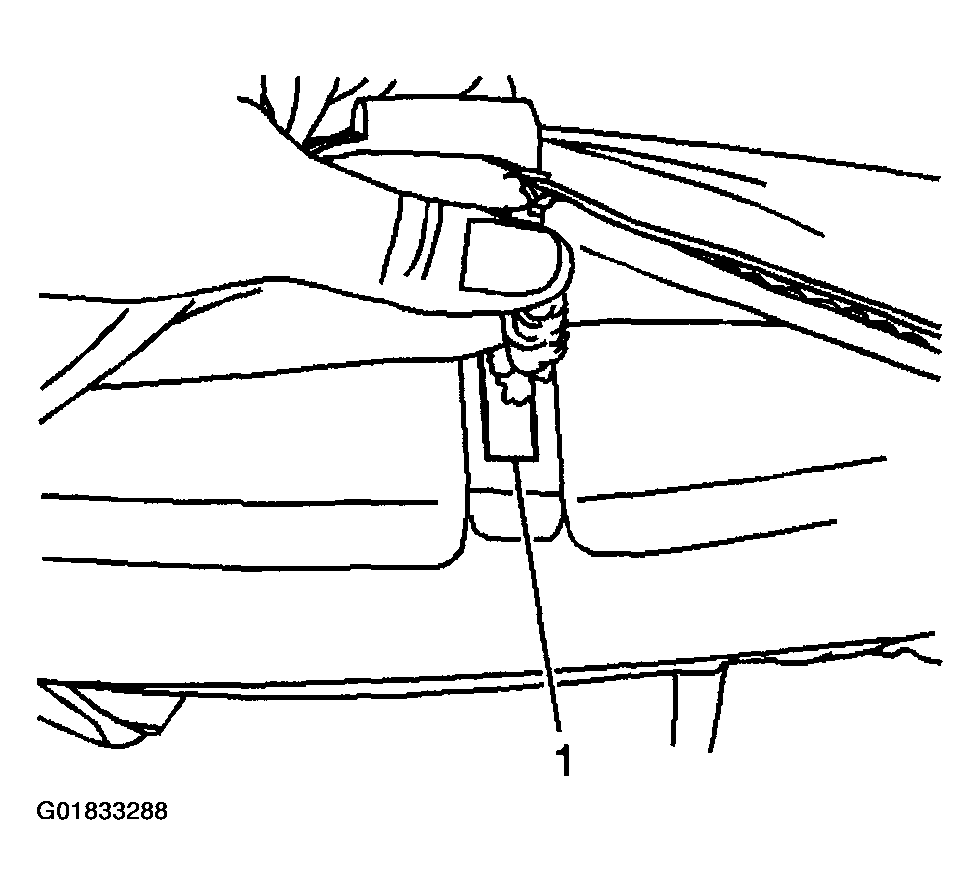

    Fig 2: Firmly Pressing Seat Back Cover To Seat Back Pad To Secure Hook And Loop Retainers
    G01833288Courtesy of GENERAL MOTORS CORP.
