Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the bolster covers and the frame cover on the seat back frame.
  2. Install the bolster foam pads (1).

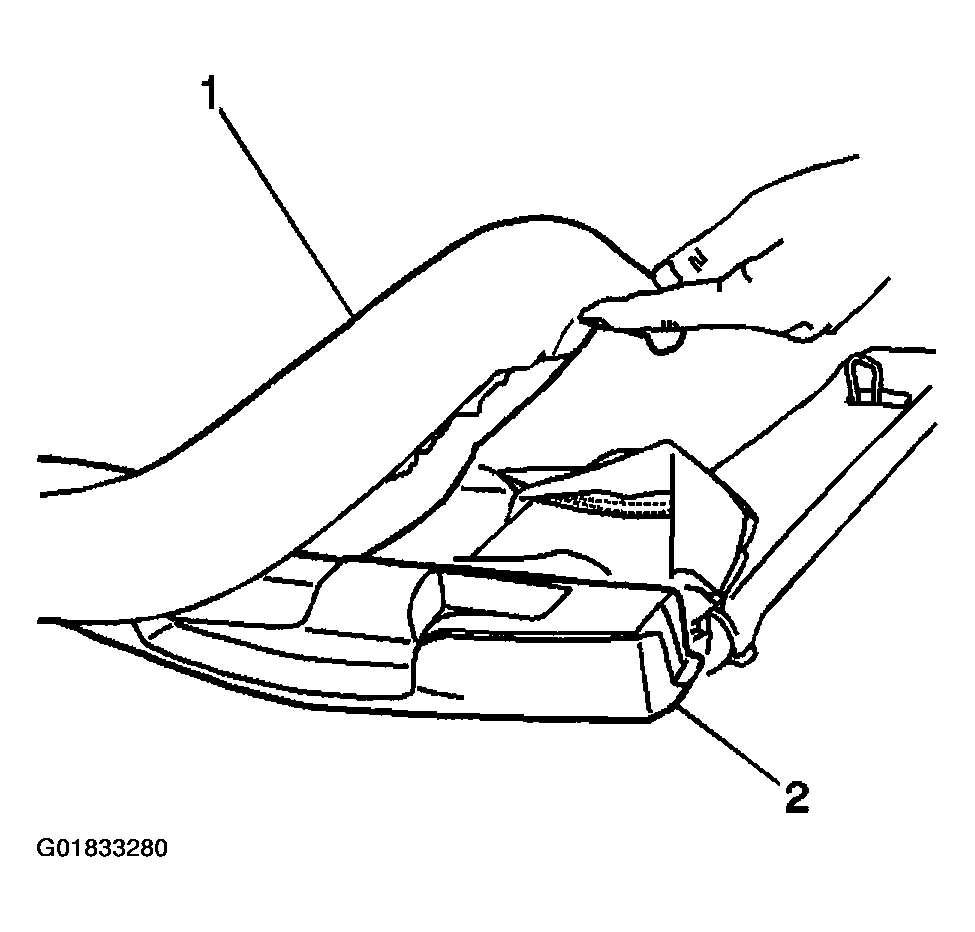

    Fig 1: Installing Bolster Foam Pads
    G01833280Courtesy of GENERAL MOTORS CORP.
  3. Install the bolster trim covers and connect the J-hooks.

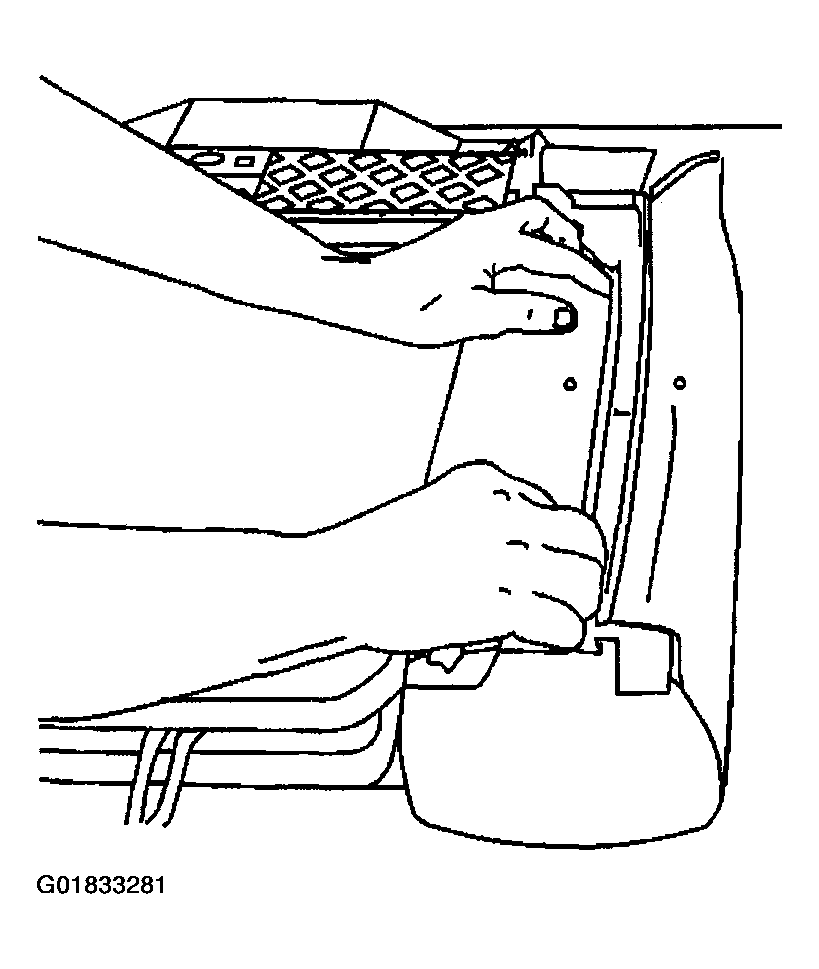

    Fig 2: Installing Bolster Trim Covers And Connecting J-Hooks
    G01833281Courtesy of GENERAL MOTORS CORP.
  4. Install the frame trim hook and loop retainers (2).
  5. Install the staples to the trim covering on the seat back frame.
  6. Install the seat back strikers. Refer to Seat Back Frame Replacement - Rear (Folding) .
  7. Install the fold down seat backs on the seat back frame.
  8. Install the rear seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .

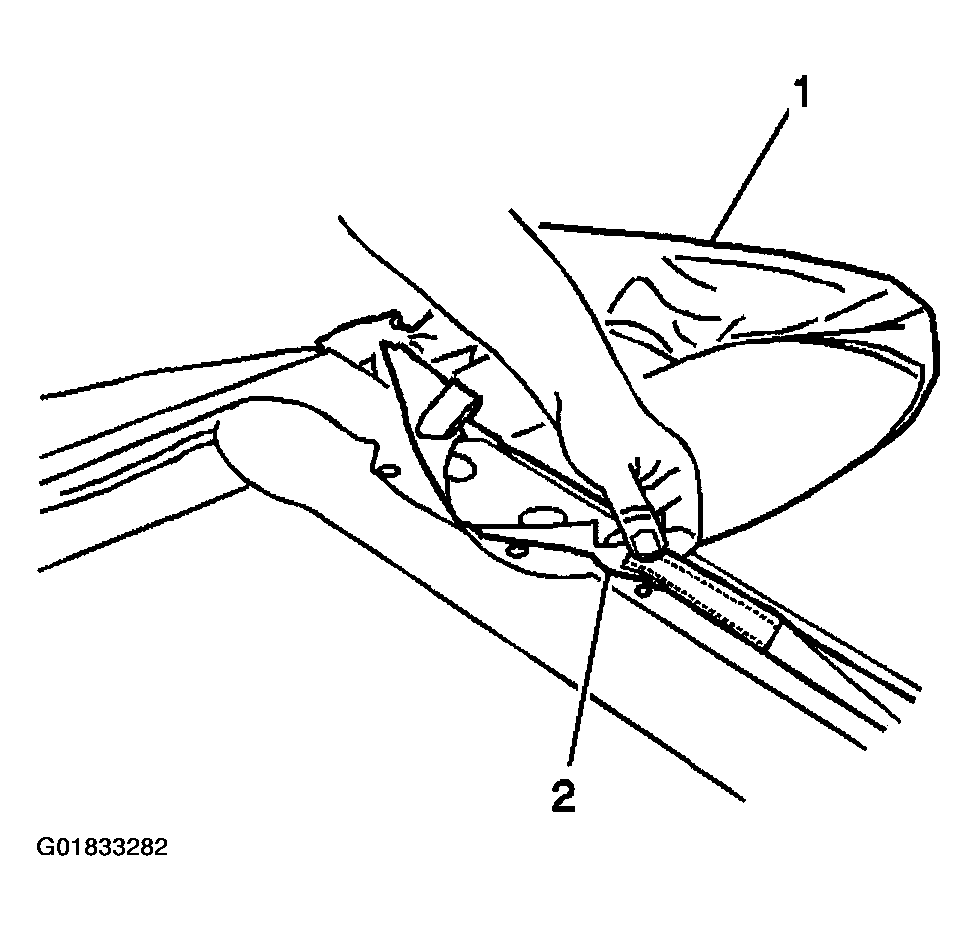

    Fig 3: Installing Frame Trim Hook And Loop Retainers
    G01833282Courtesy of GENERAL MOTORS CORP.
