Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

For the power seat, install the rear track adjuster covers to the rear of the adjuster.

Fig 1: Installing Rear Track Adjuster Covers To Rear Of Adjuster
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the rear manual seat adjuster track cover retaining screw to the rear adjuster track cover, manual seat.
Tighten

Tighten the rear manual seat adjuster track cover retaining screw to 2 N.m (18 lb in).

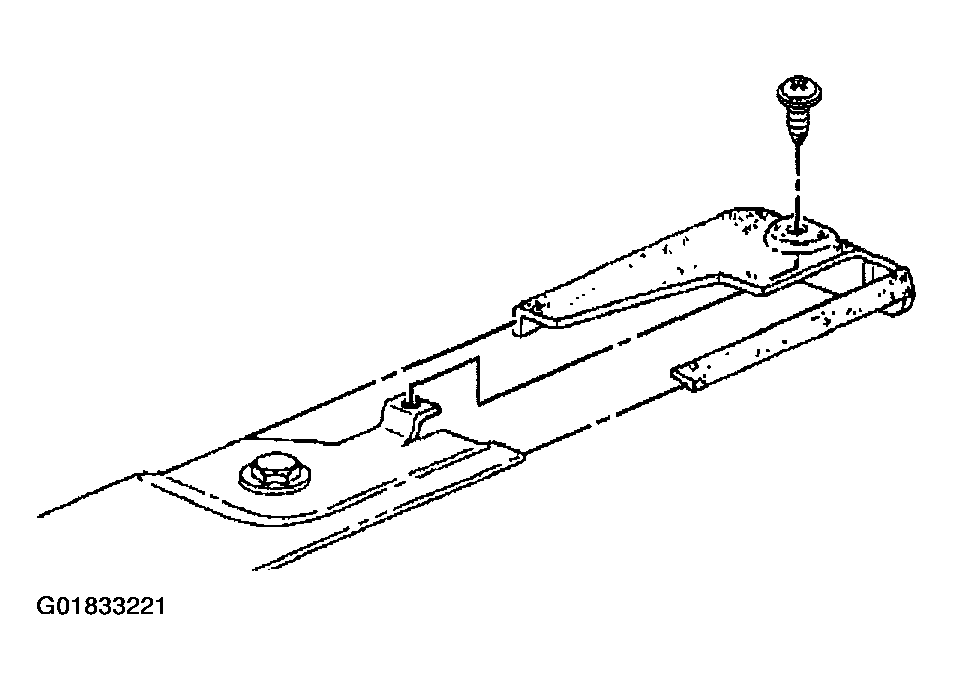

Fig 2: Installing Rear Manual Seat Adjuster Track Cover Retaining Screw To Rear Adjuster Track Cover (Manual Seat)
Courtesy of GENERAL MOTORS CORP.
Install the front seat track adjuster cover to the front seat adjuster for both manual and power seats.

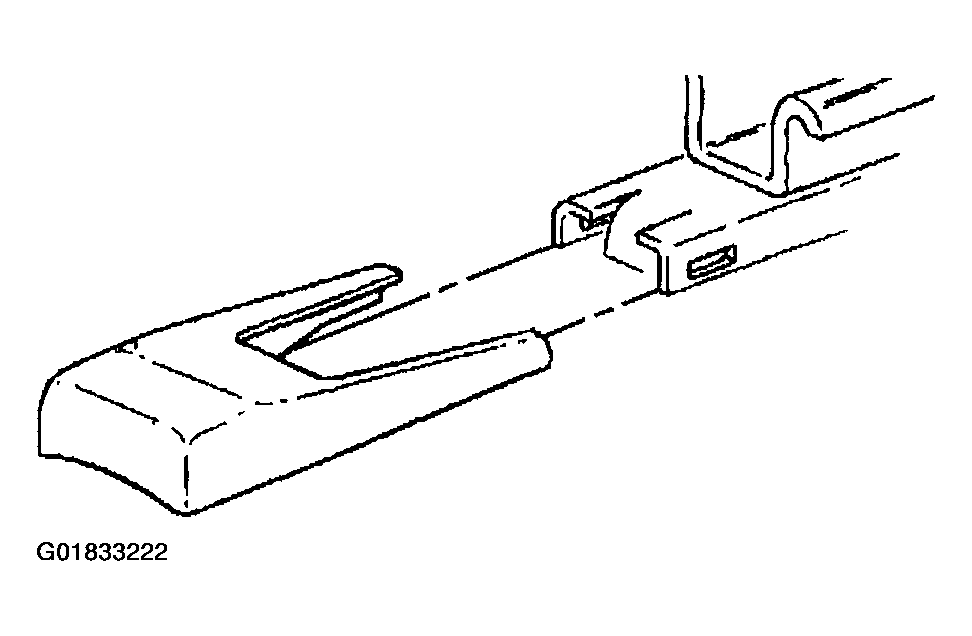

Fig 3: Installing Front Seat Track Adjuster Cover To Front Seat Adjuster For Both Manual And Power Seats
Courtesy of GENERAL MOTORS CORP.
