Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement - Front Bucket .
  2. Place the seat upside down on a clean, protected surface.
  3. Remove the trim finish panels. Refer to Trim Panel Replacement - Front Seat .
  4. Remove the seat adjuster to seat cushion frame bolts.
  5. Remove the seat adjuster from the seat cushion frame.
  6. Remove the cross-wire and assist springs from the seat adjuster.
  7. Remove the cross-brace bolts.
  8. Separate the left and right seat adjusters.

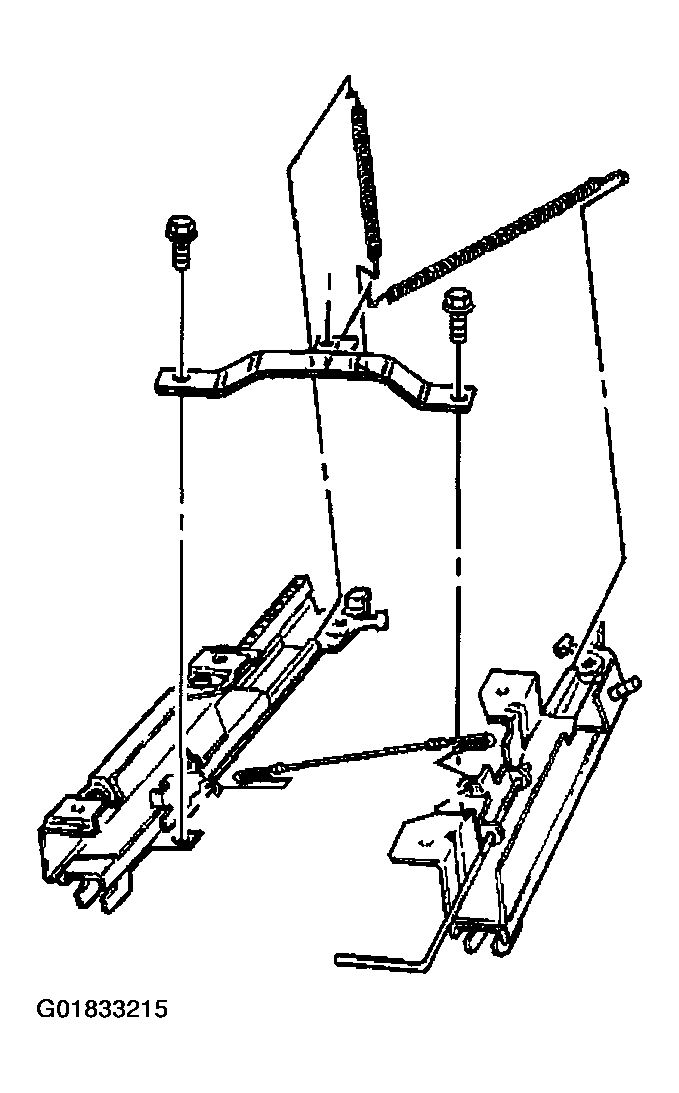

    Fig 1: Removing Seat Assembly From Seat Adjuster
    G01833215Courtesy of GENERAL MOTORS CORP.
