Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

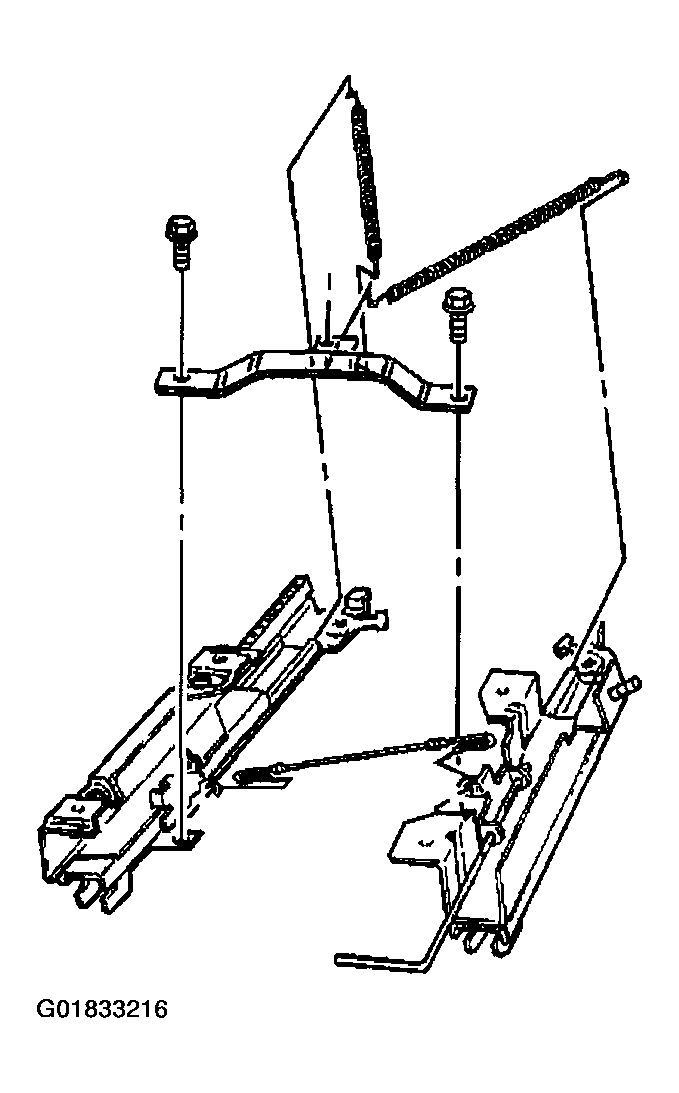

Important: Before assembling the seat adjusters, make sure the tab bending downward at the center of the cross-brace faces towards the rear of the adjusters.

Attach the cross-brace to the seat adjusters.
NOTE: Refer to FASTENER NOTICE .
Install the cross-brace bolts.
Tighten

Tighten the cross-brace bolts to 6 N.m (18 lb ft).
Install the cross-wire and assist springs to the seat adjuster.
Important: To ensure proper two-way seat adjuster alignment, install the adjuster assembly to the floor pan before attaching the adjuster to the seat cushion frame. The floor pan will act as an alignment fixture.
Install the seat adjuster to the floor pan.
Install the seat adjuster to floor pan bolts.
Tighten

Tighten the seat adjuster bolts to 42 N.m (31 lb ft).
Install the seat assembly to the seat adjuster.

Fig 1: Installing Seat Assembly To Seat Adjuster
Courtesy of GENERAL MOTORS CORP.
Install the seat adjuster to cushion frame bolts.
Tighten

Tighten the seat adjuster to cushion frame bolts to 24 N.m (18 lb ft).
Install the trim finish panels. Refer to Trim Panel Replacement - Front Seat .
Install the front seat. Refer to Seat Replacement - Front Bucket .
Connect any electrical connectors, if removed.
