Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to Seat Replacement - Front Bucket .
  2. Remove the seat belt buckle nut. Remove the seat belt from the seat.
  3. Remove the J-hooks holding the seat trim cover to the seat frame.
  4. Remove the front seat trim panel. Refer to Trim Panel Replacement - Front Seat .

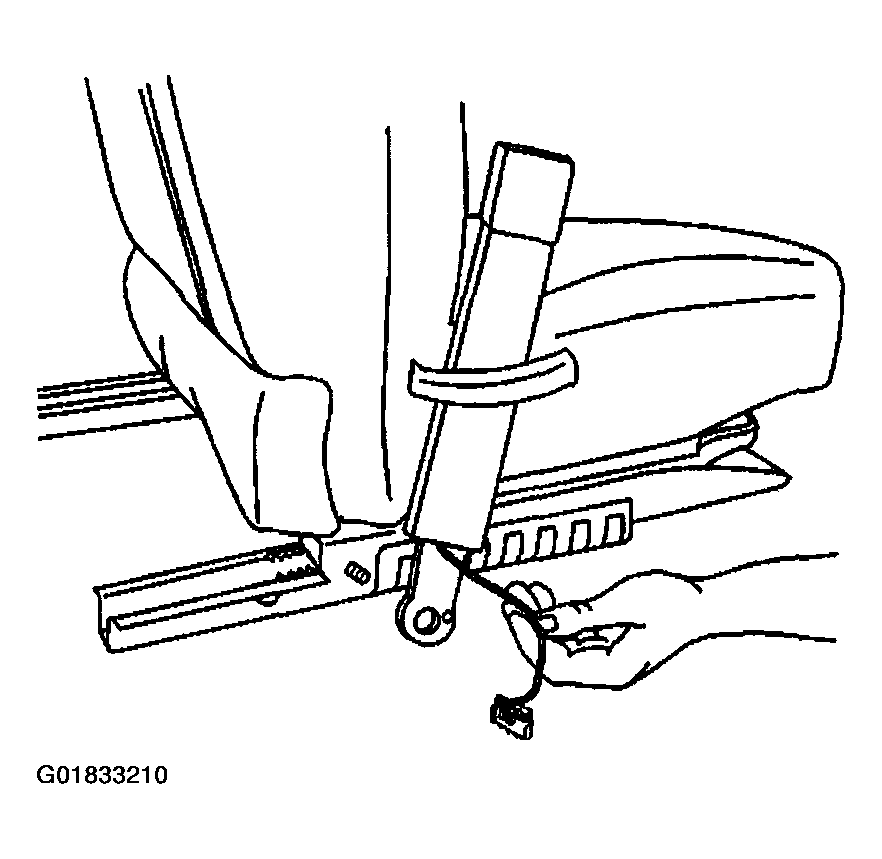

    Fig 1: Disconnecting Seat Belt Electrical Harness
    G01833210Courtesy of GENERAL MOTORS CORP.
  5. Position the seat back all the way down.
  6. Lift up on the cushion trim cover and pad to access the seat frame to adjuster bolts.
  7. Remove the adjuster to seat cushion frame bolts.
  8. Disconnect the electrical harness from the adjuster cross brace.
  9. Disconnect the seat belt electrical harness, drivers seat only.
  10. Disconnect the electrical harness from the 3 electric motors.
  11. Remove the lumbar adjuster relays from the motor bracket.
  12. Remove the adjuster from the seat cushion frame.
  13. Remove the seat adjuster motor assembly from the seat adjuster. Refer to Seat Adjuster Motor Replacement - Front .
  14. Separate the left and right adjusters by removing the crossbrace bolts and the crossbrace.

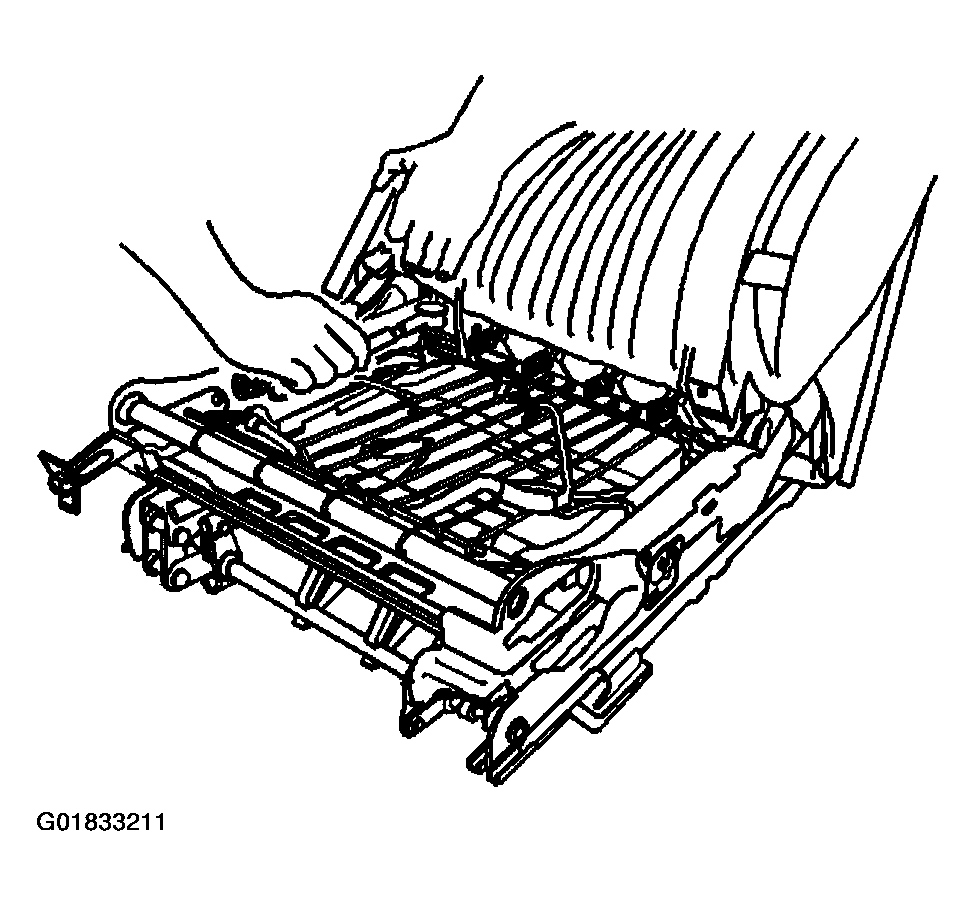

    Fig 2: Removing Adjuster To Seat Cushion Frame Bolts
    G01833211Courtesy of GENERAL MOTORS CORP.
