Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power seat adjuster. Refer to Seat Adjuster Replacement - Front (Six-Way Power)  or Seat Adjuster Replacement - Front (Two-Way Manual) .
  2. Remove the power seat adjuster actuator motor bracket to seat adjuster nut.
  3. Remove the drive cables. Refer to Drive Cable Replacement - Horizontal and Vertical .
  4. Remove the power seat adjuster actuator motor from the seat adjuster.

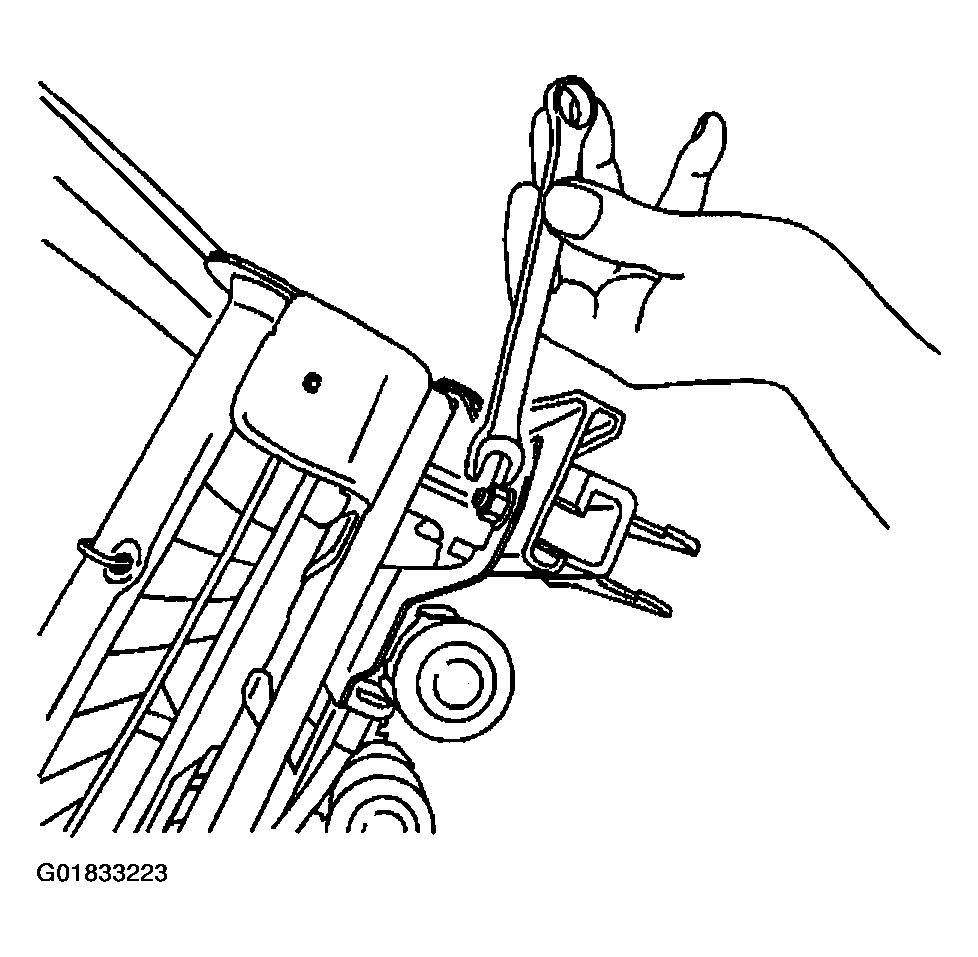

    Fig 1: Removing Power Seat Adjuster Actuator Motor Bracket To Seat Adjuster Nut
    G01833223Courtesy of GENERAL MOTORS CORP.
