Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power seat adjuster actuator motor to the seat adjuster.
  2. Install the drive cables. Refer to Drive Cable Replacement - Horizontal and Vertical .
    NOTE: Refer to FASTENER NOTICE .
  3. Install the power seat adjuster actuator motor bracket to seat adjuster nut.

    Tighten

    Tighten the power seat adjuster actuator nut to 10 N.m(89 lb in).

  4. Install the power seat adjuster. Refer to Seat Adjuster Replacement - Front (Six-Way Power)  or Seat Adjuster Replacement - Front (Two-Way Manual) .

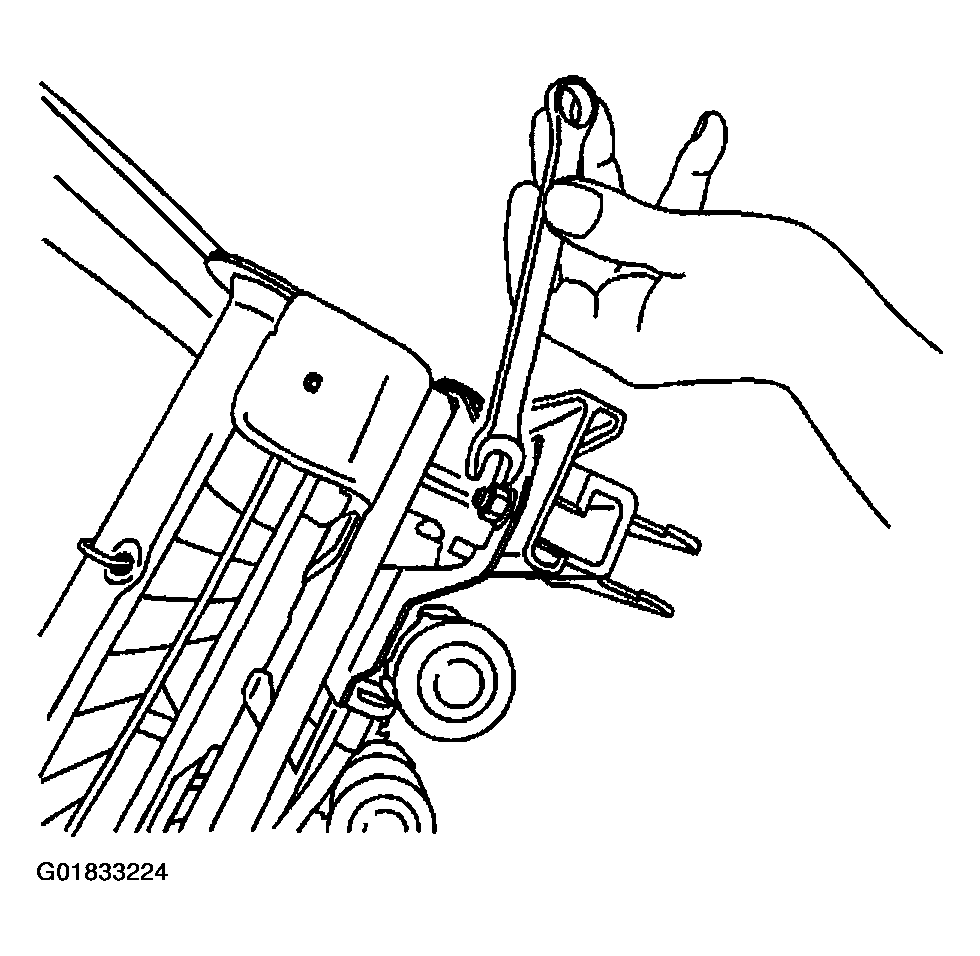

    Fig 1: Tightening Power Seat Adjuster Nut
    G01833224Courtesy of GENERAL MOTORS CORP.
