Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE in Instrument Panel, Gages and Console.
  2. Pull the instrument panel (IP) accessory trim plate away from the IP trim pad.
  3. Disconnect the black connector from the driver heated seat switch. Disconnect the blue connector from the passenger heated seat switch.

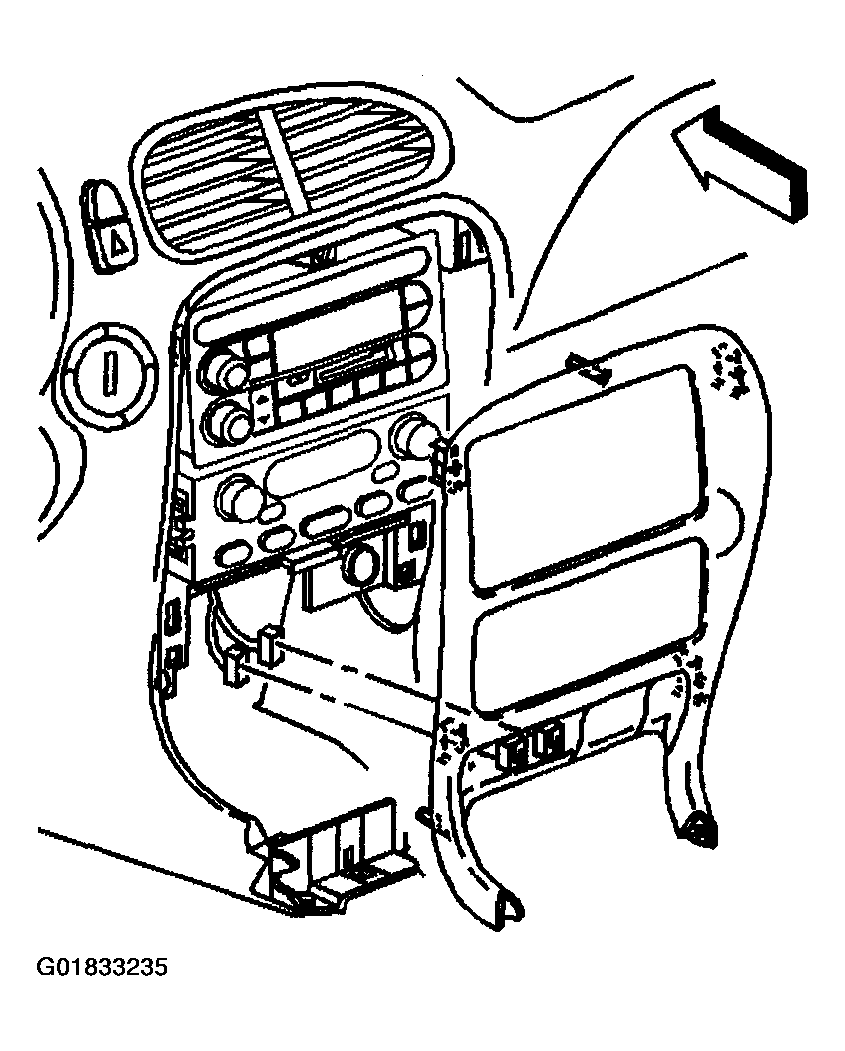

    Fig 1: Removing Front Floor Console Trim Plate
    G01833235Courtesy of GENERAL MOTORS CORP.
  4. Remove the heated seat switch screws.
  5. Remove the heated seat switches from the IP accessory trim plate.

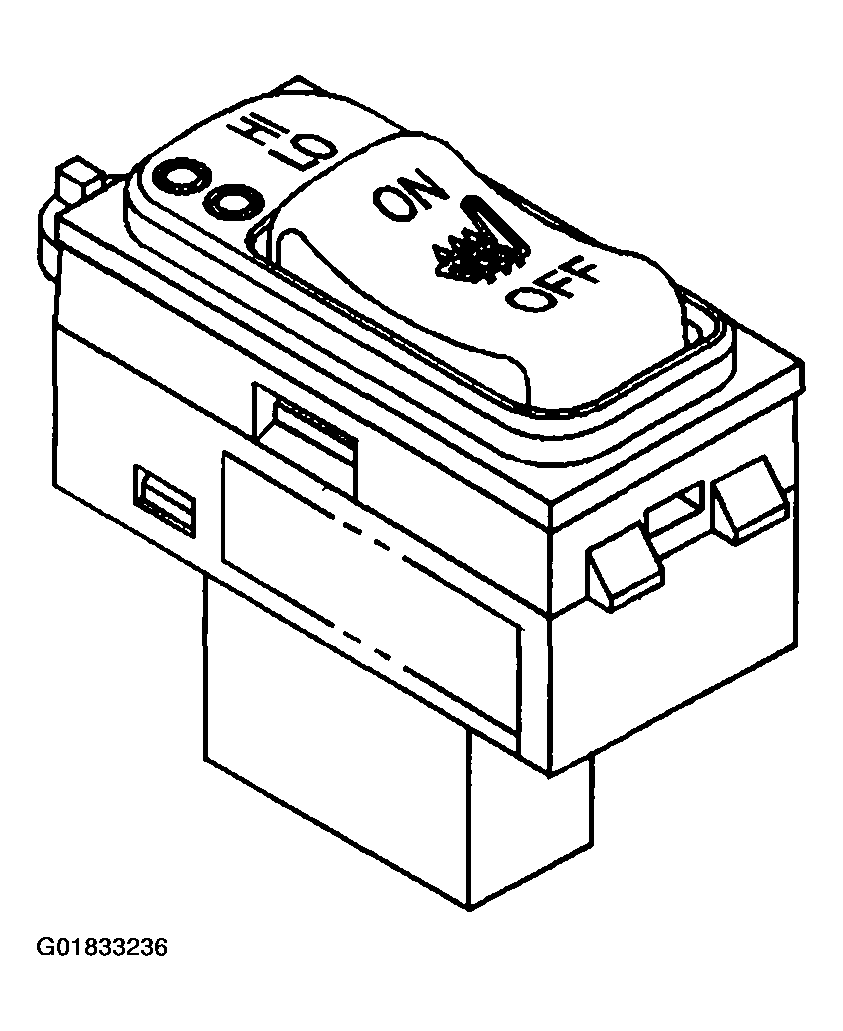

    Fig 2: Removing Heated Seat Switches From IP Accessory Trim Plate
    G01833236Courtesy of GENERAL MOTORS CORP.
