Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heated seat switches to the IP accessory trim plate.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the heated seat switch screws.

    Tighten

    Tighten the heated seat switch screws to 2 N.m(18 lb in).

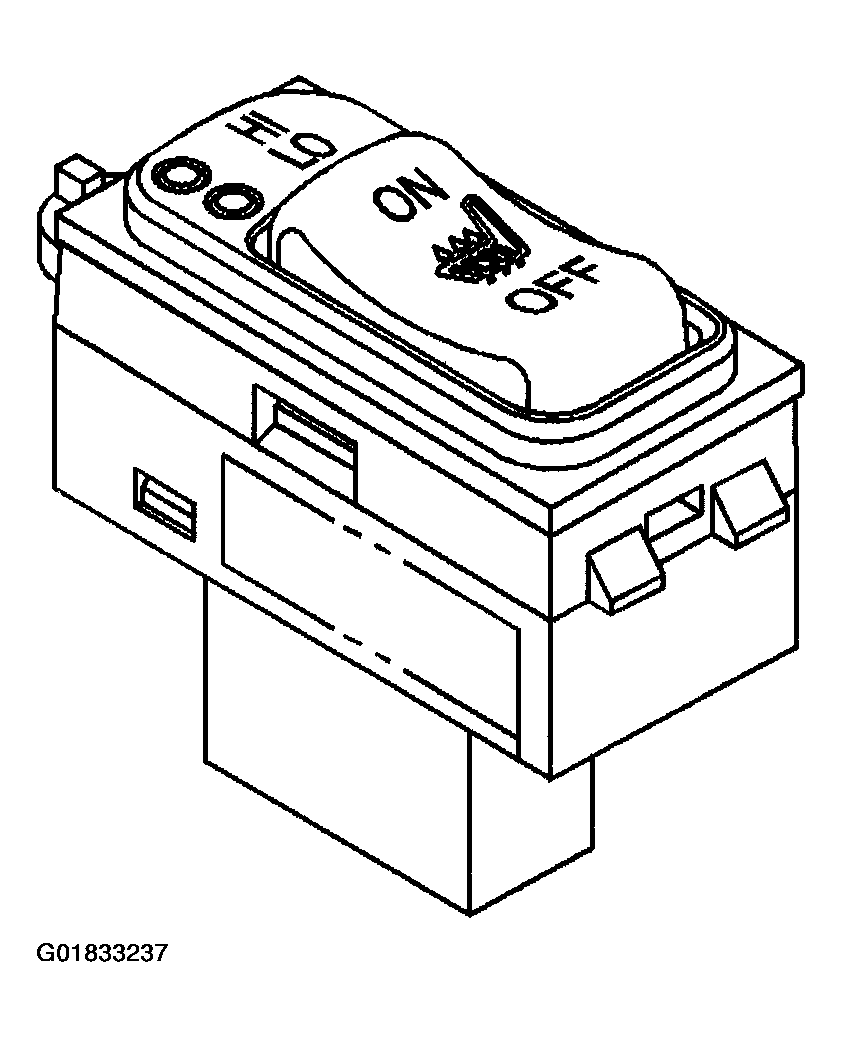

    Fig 1: Installing Heated Seat Switches To IP Accessory Trim Plate
    G01833237Courtesy of GENERAL MOTORS CORP.
  3. Connect the blue connector to the passenger heated seat switch. Connect the black connector to the driver heated seat switch.
  4. Align the retainers on the IP accessory trim plate to the openings in the IP trim pad.
  5. Press the IP accessory trim plate to the IP trim pad. Fully seat the retainers.
  6. Install the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE in Instrument Panel, Gages and Console.

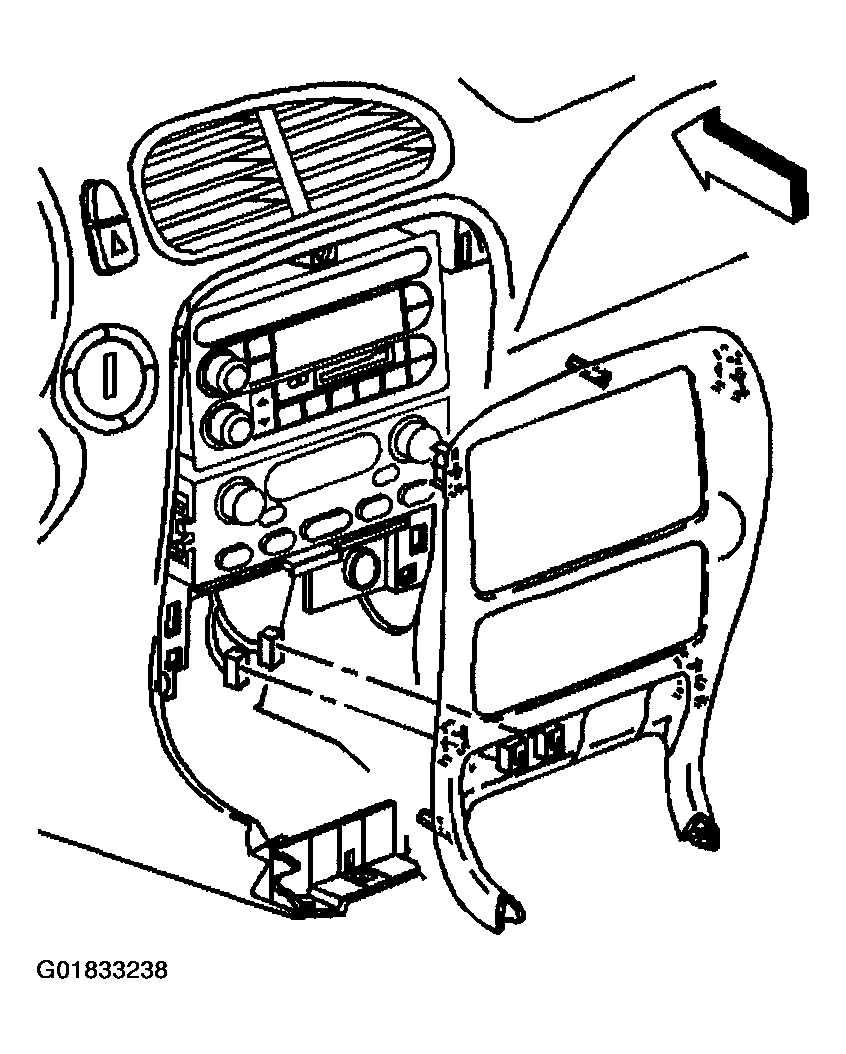

    Fig 2: Installing Front Floor Console Trim Plate
    G01833238Courtesy of GENERAL MOTORS CORP.
