Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the head restraint. Refer to Head Restraint Replacement - Front Seat .
  2. Position the front seat back to the full-up position.
  3. Unhook the front seat back trim cover J-retainer.
  4. Carefully reach inside the seat back between the seat back cover and the seat back pad.

    Pinch the bottom of the guide together.

  5. Pull the guide upwards from the seat back frame.

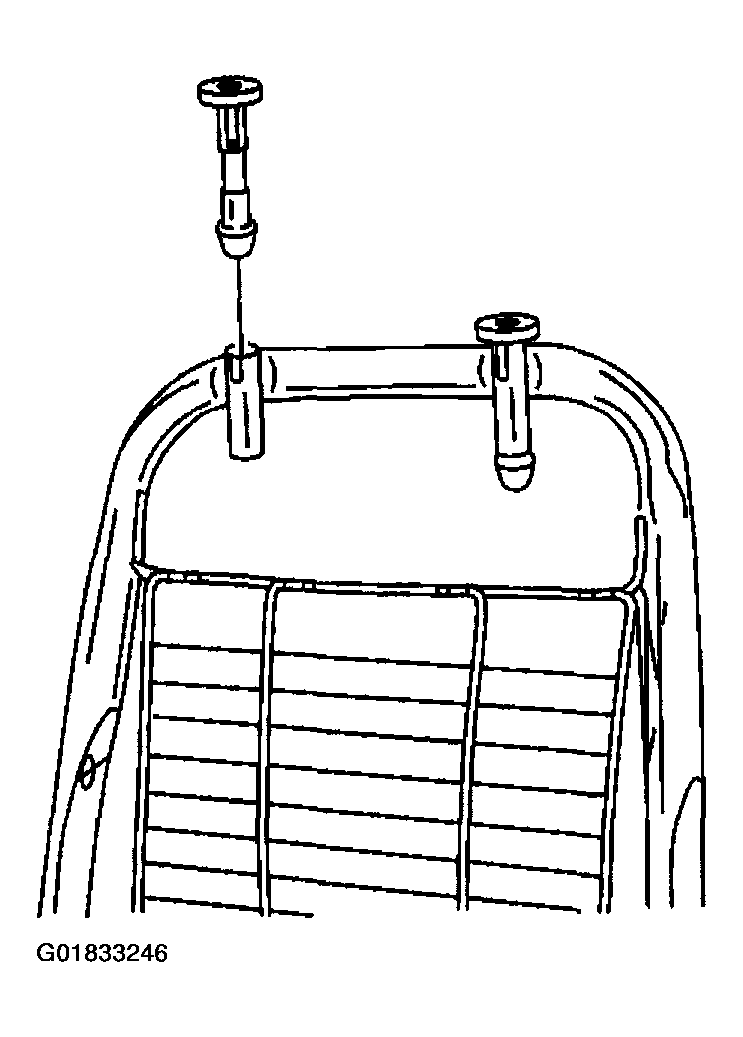

    Fig 1: Pulling Guide Upwards From Seat Back Frame
    G01833246Courtesy of GENERAL MOTORS CORP.
