Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the head restraint completely.
  2. Insert the small rounded tool into the small hole on the side of the head restraint guide.

    Push the small rounded tool inwards to release the locking tab.

  3. Lift the head restraint out of the head restraint guides.
  4. Use the following procedure to remove the two support rods from the head restraint:
    • Firmly grasp each rod and rotate it 90 degrees.
    • Pull the rods out of the head restraint.

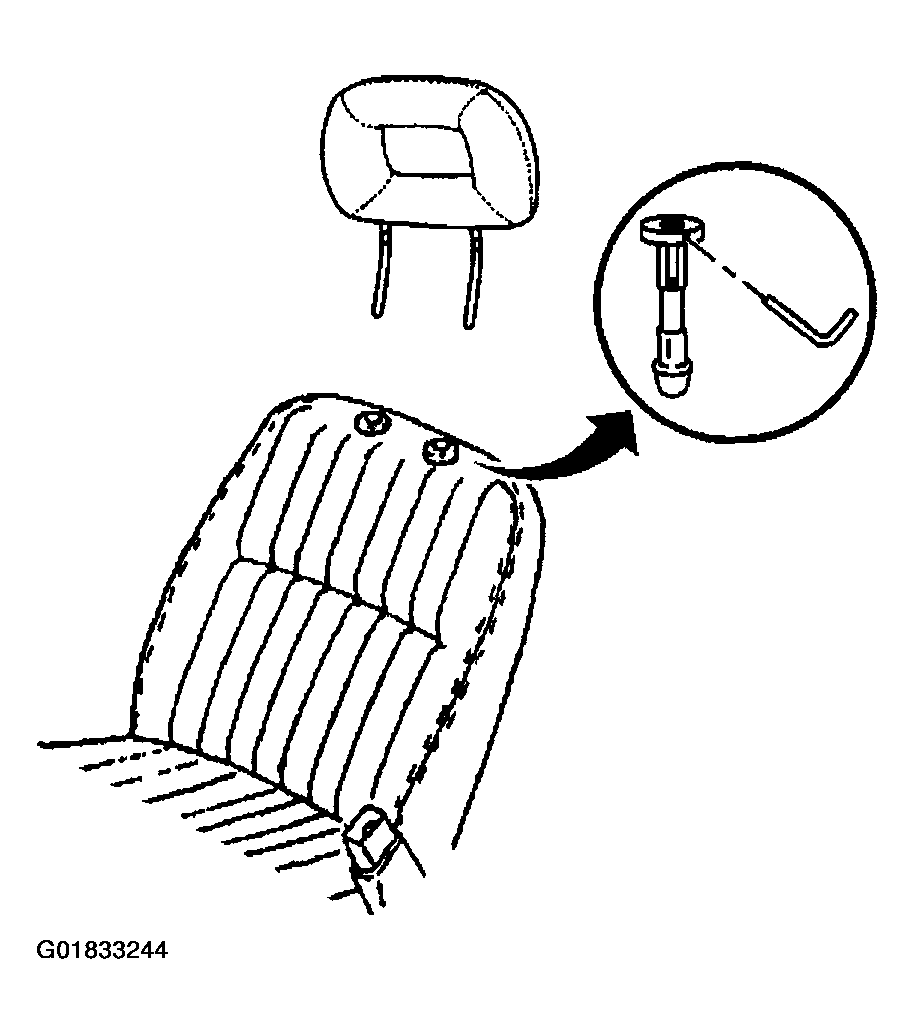

    Fig 1: Lifting Head Restraint Out Of Head Restraint Guides
    G01833244Courtesy of GENERAL MOTORS CORP.
