Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the notches facing the front, push the support rods fully into the head restraint.
  2. Install the head restraint posts into the head restraint guides.
  3. Lower the head restraint completely.
  4. Raise the head restraint to ensure the restraint is locked into the guides.
  5. Return the head restraint to its original position.

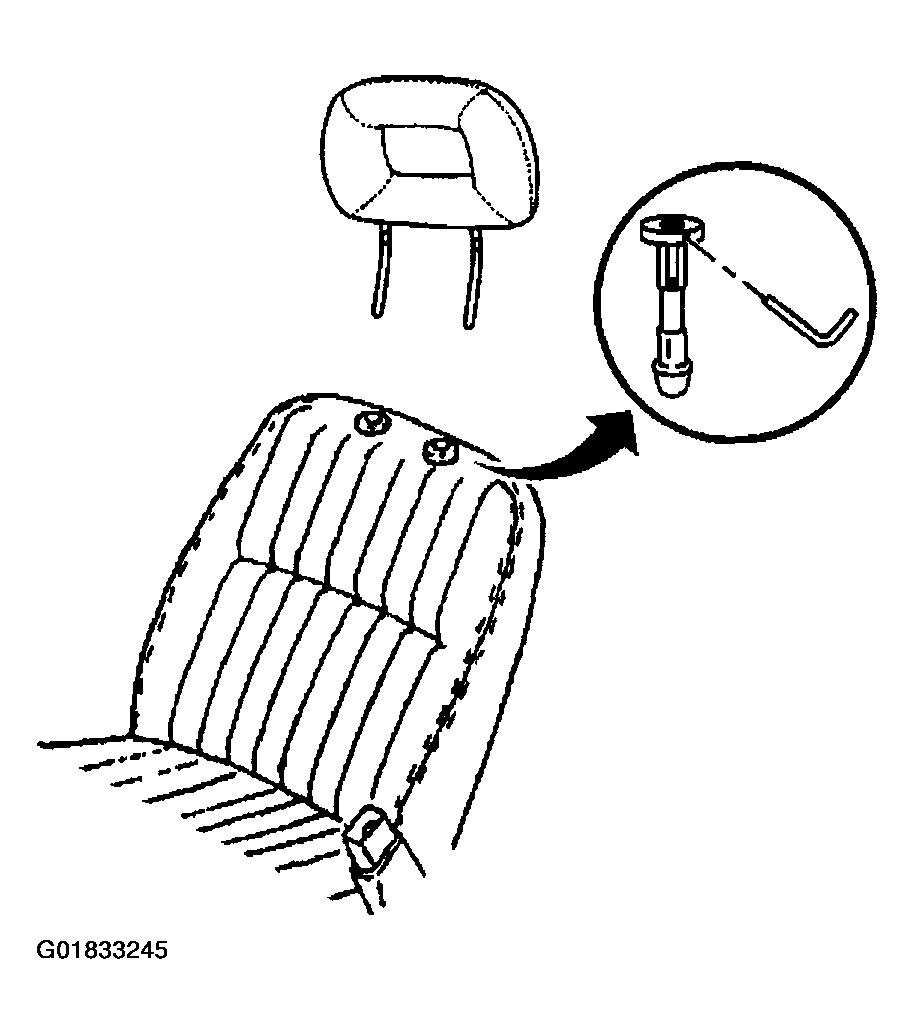

    Fig 1: Installing Head Restraint Posts Into Head Restraint Guides
    G01833245Courtesy of GENERAL MOTORS CORP.
