Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement - Front Bucket .
  2. Squeeze the oblong connector at the end of the drive cable that you are replacing. Carefully flex the cable and remove the cable from the motor and from the horizontal/vertical actuator.

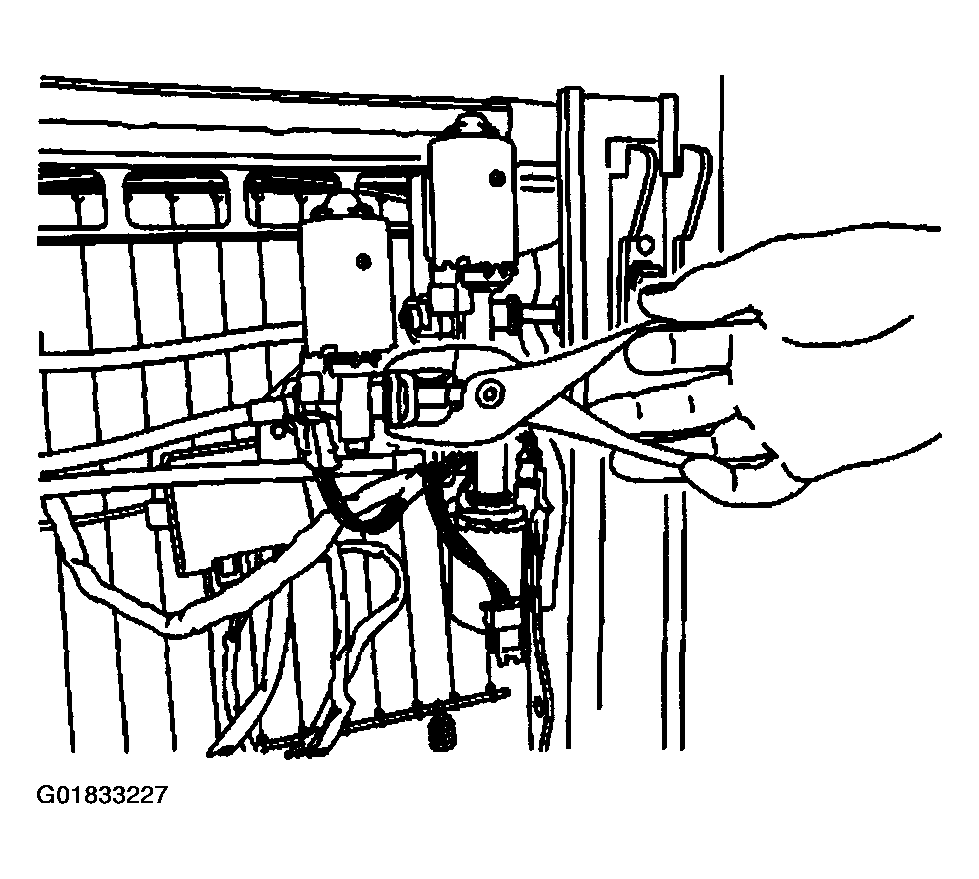

    Fig 1: Removing Cable From Motor And From Horizontal/Vertical Actuator
    G01833227Courtesy of GENERAL MOTORS CORP.
