Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully flex the cable and install the cable to the motor and to the horizontal/vertical actuator.
  2. Firmly squeeze the oblong connector at each end of the cable, and press the connector onto the motor and onto the actuator.
  3. Install the front seat. Refer to Seat Replacement - Front Bucket .

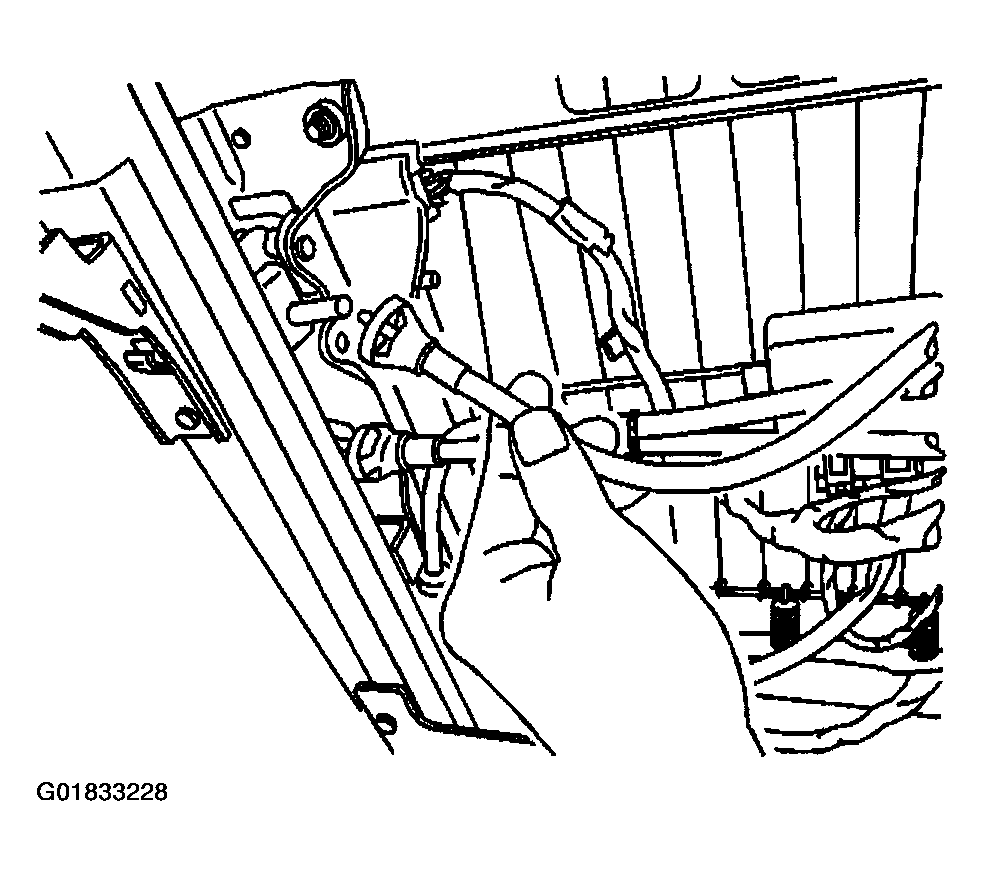

    Fig 1: Installing Cable To Motor And To Horizontal/Vertical Actuator
    G01833228Courtesy of GENERAL MOTORS CORP.
