Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fixed seat back with armrest. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .
  2. Remove the seat back armrest nuts.

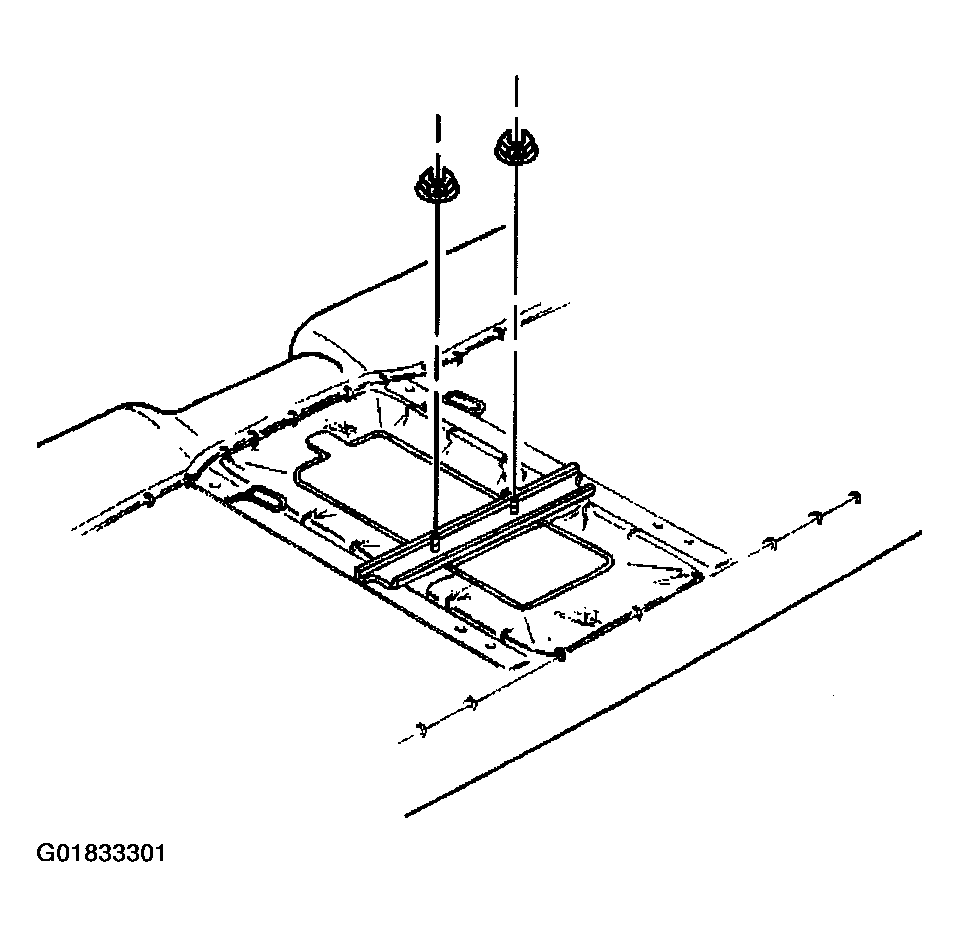

    Fig 1: Removing Seat Back Armrest Nuts
    G01833301Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat back armrest from the seat back.

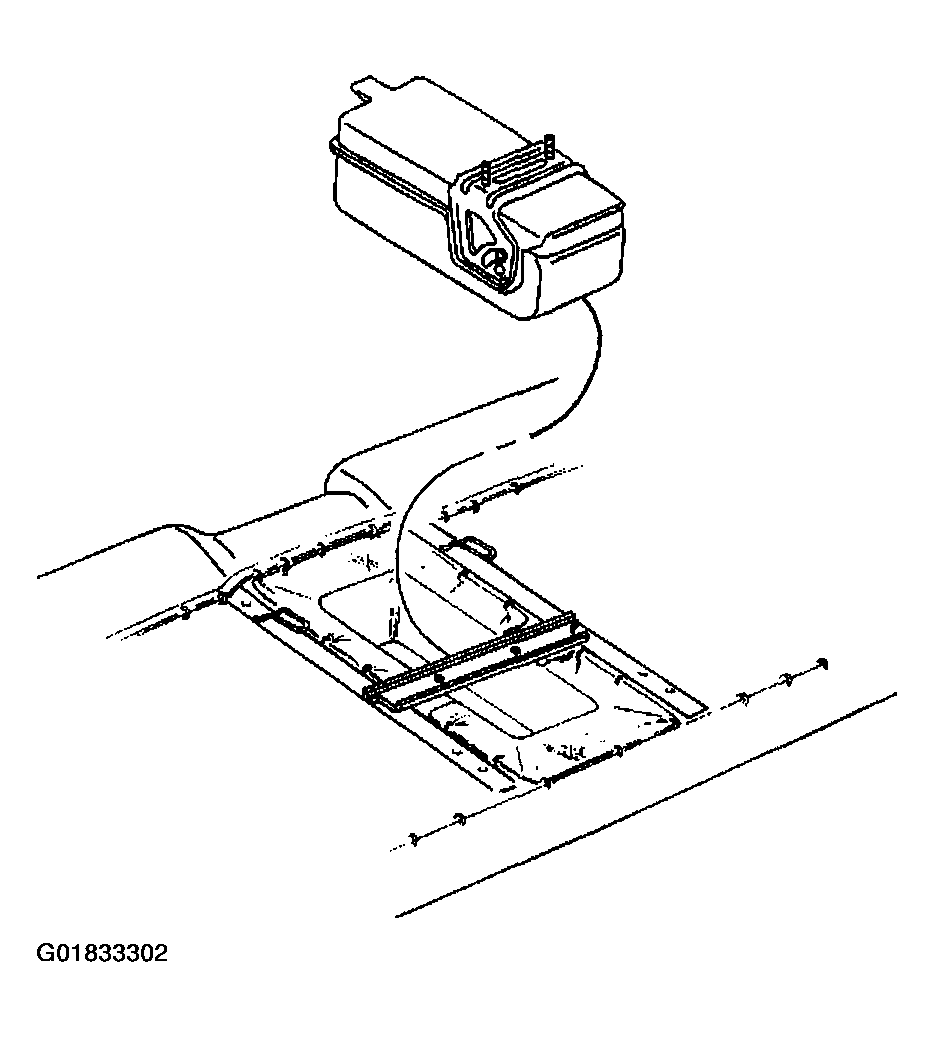

    Fig 2: Removing Seat Back Armrest From Seat Back
    G01833302Courtesy of GENERAL MOTORS CORP.
