Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back armrest to the seat back.

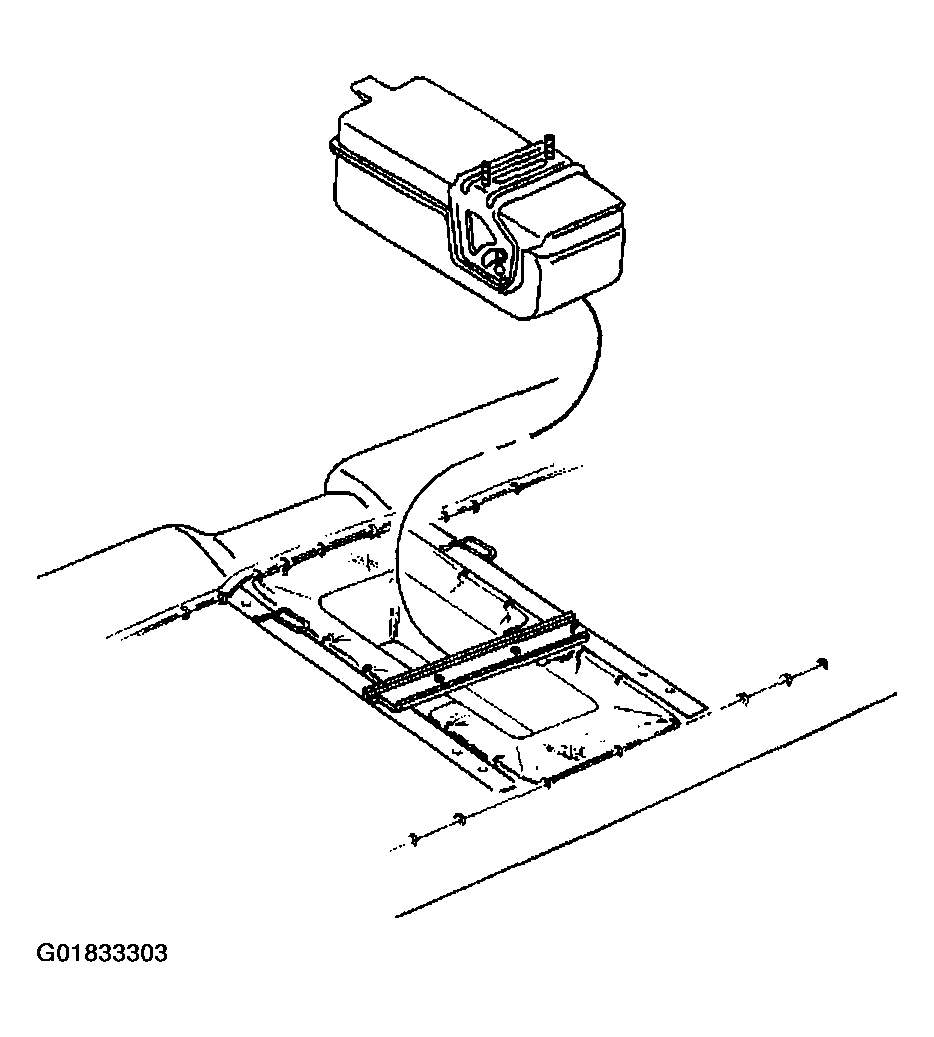

    Fig 1: Installing Seat Back Armrest To Seat Back
    G01833303Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the seat back armrest nuts.

    Tighten

    Tighten the seat back armrest nuts to 3 N.m (27 lb in).

  3. Install the fixed seat back with armrest. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .

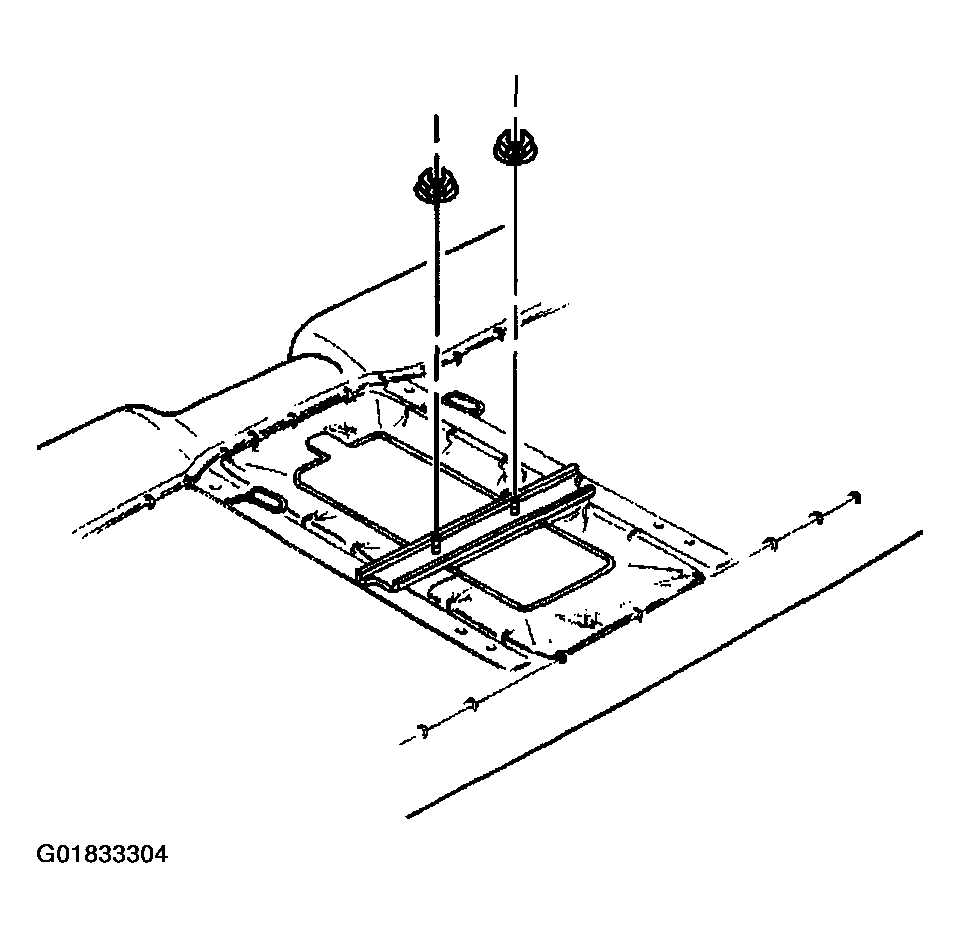

    Fig 2: Installing Seat Back Armrest Nuts
    G01833304Courtesy of GENERAL MOTORS CORP.
