Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold down the seat back with the armrest.
  2. Open the J-retainer at the bottom of the seat back cover.
  3. Remove the seat back armrest nuts.

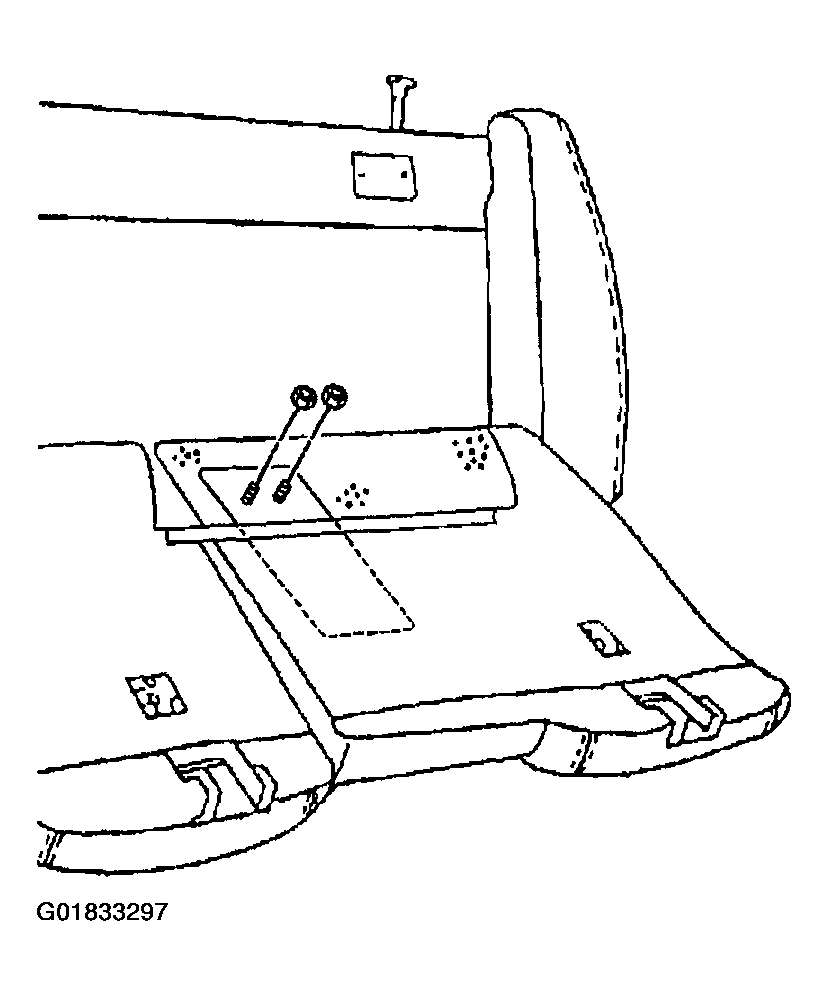

    Fig 1: Removing Seat Back Armrest Nuts
    G01833297Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat back armrest from the rear seat back.

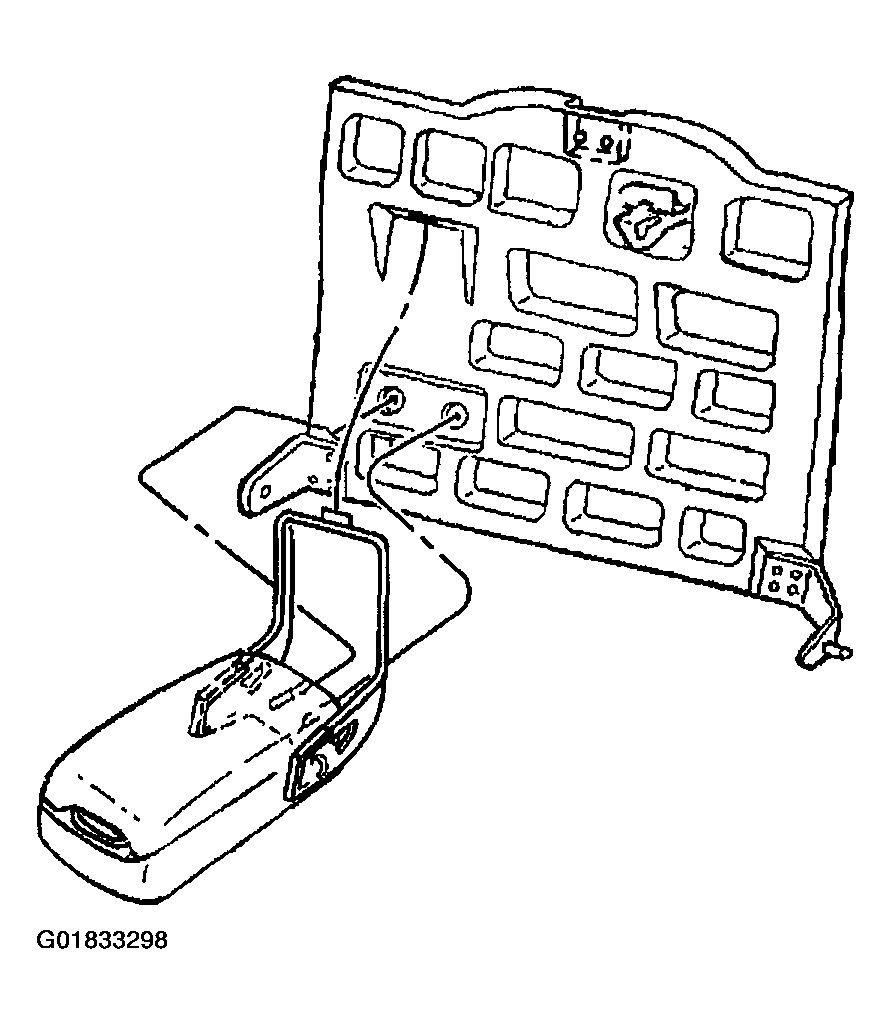

    Fig 2: Removing Seat Back Armrest From Rear Seat Back
    G01833298Courtesy of GENERAL MOTORS CORP.
