Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back armrest to the rear seat back.

    Make sure the seat back cover in neatly tucked underneath the armrest.

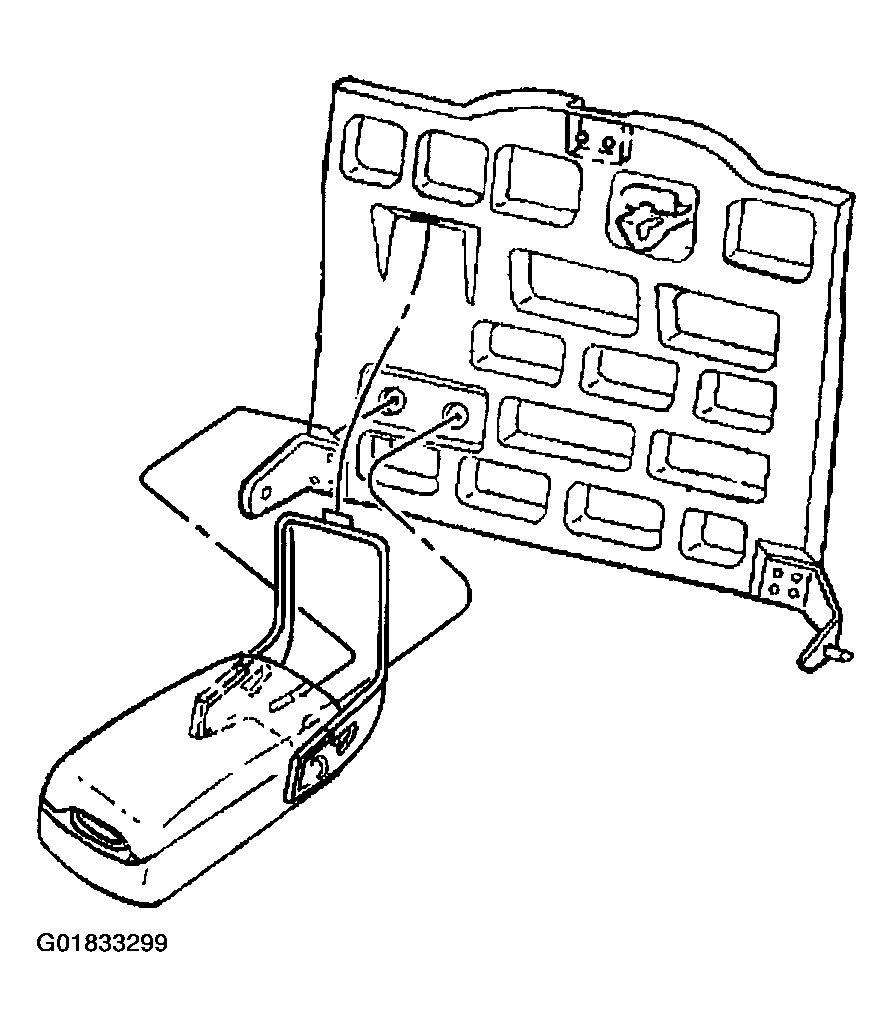

    Fig 1: Installing Seat Back Armrest To Rear Seat Back
    G01833299Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the seat back armrest nuts.

    Tighten

    Tighten the seat back armrest nuts to 10 N.m(89 lb in).

  3. Close the J-retainer at the bottom of the seat back cover.
  4. Fold up the seat back with the armrest.

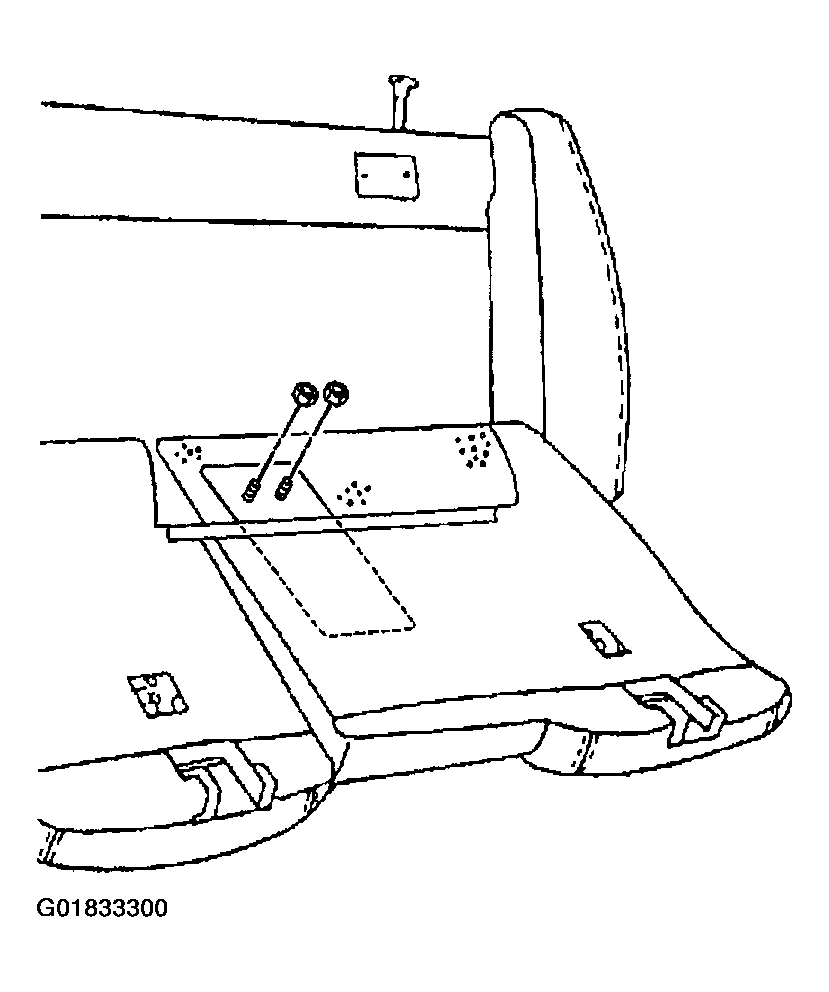

    Fig 2: Installing Seat Back Armrest Nuts
    G01833300Courtesy of GENERAL MOTORS CORP.
