Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the power seat adjusters to full-up and full forward.
  2. Remove the front seat.
  3. Place the seat on a bench lying on its back.
  4. Remove the horizontal and vertical drive cables from the adjuster motors.

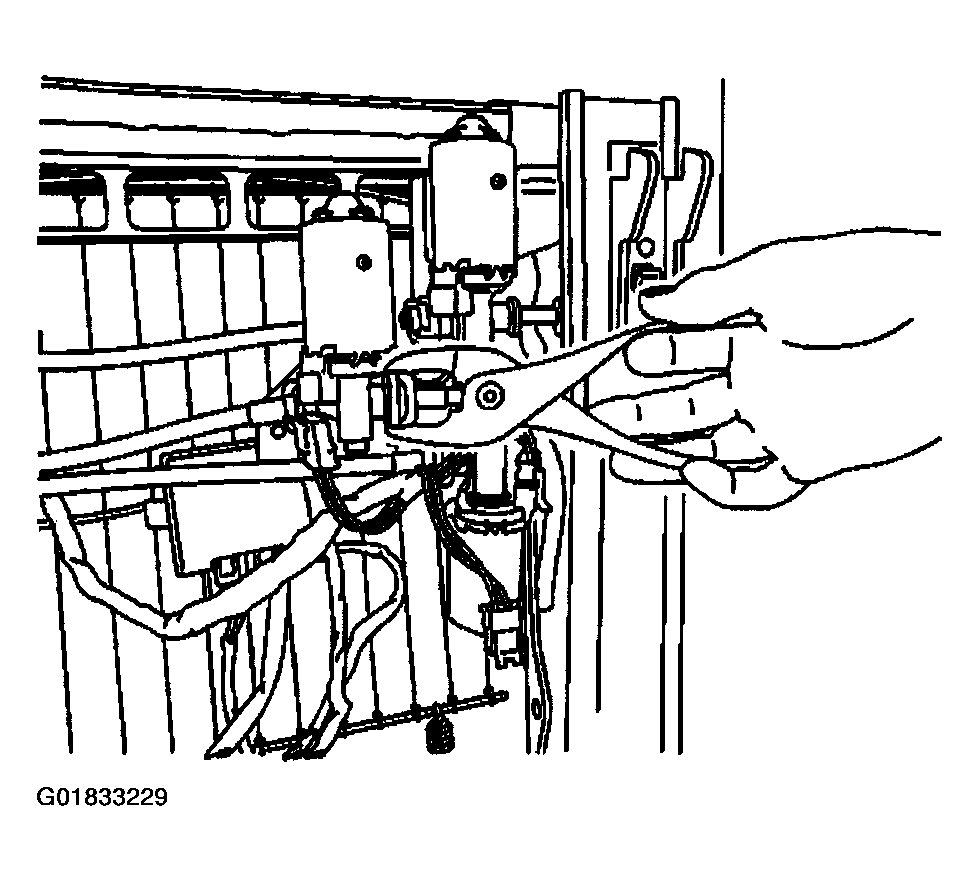

    Fig 1: Removing Horizontal And Vertical Drive Cables From Adjuster Motors
    G01833229Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connectors to the actuators.
  6. Disconnect the harness rosebud from the actuator bracket.

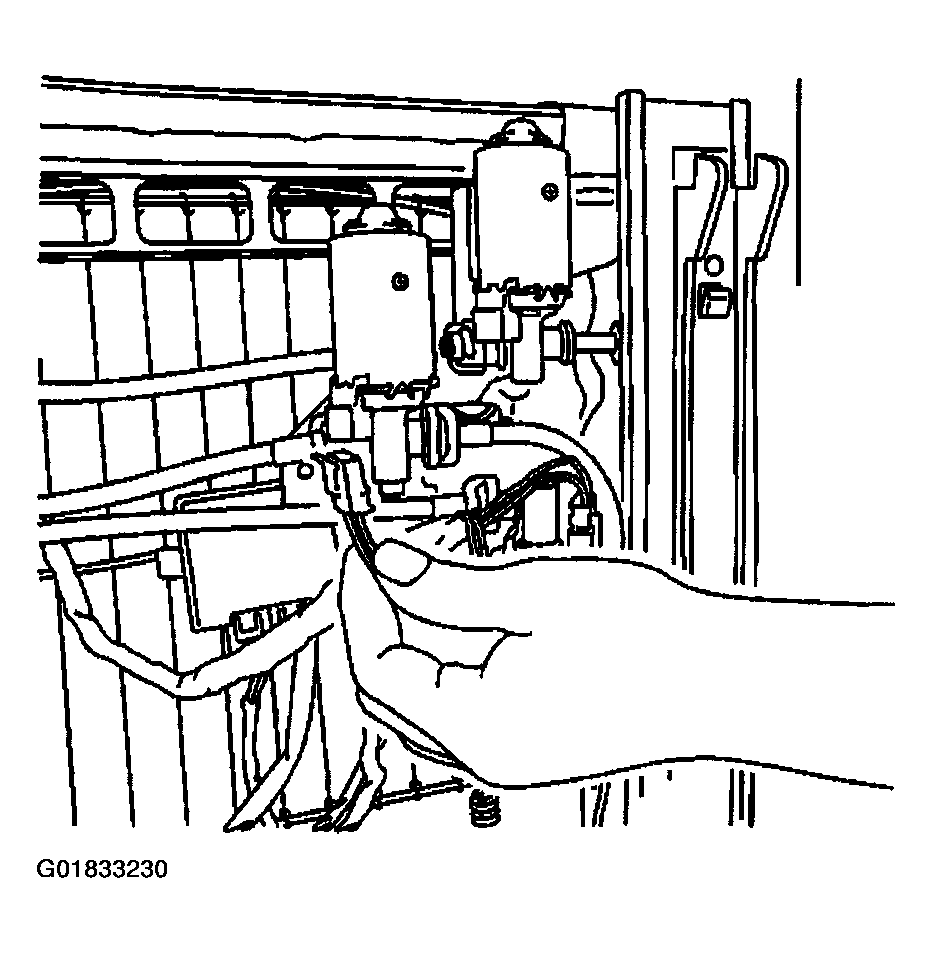

    Fig 2: Disconnecting Electrical Connectors To Actuators
    G01833230Courtesy of GENERAL MOTORS CORP.
  7. Remove the seat adjuster support bracket nut.
  8. Remove the support bracket and actuators.

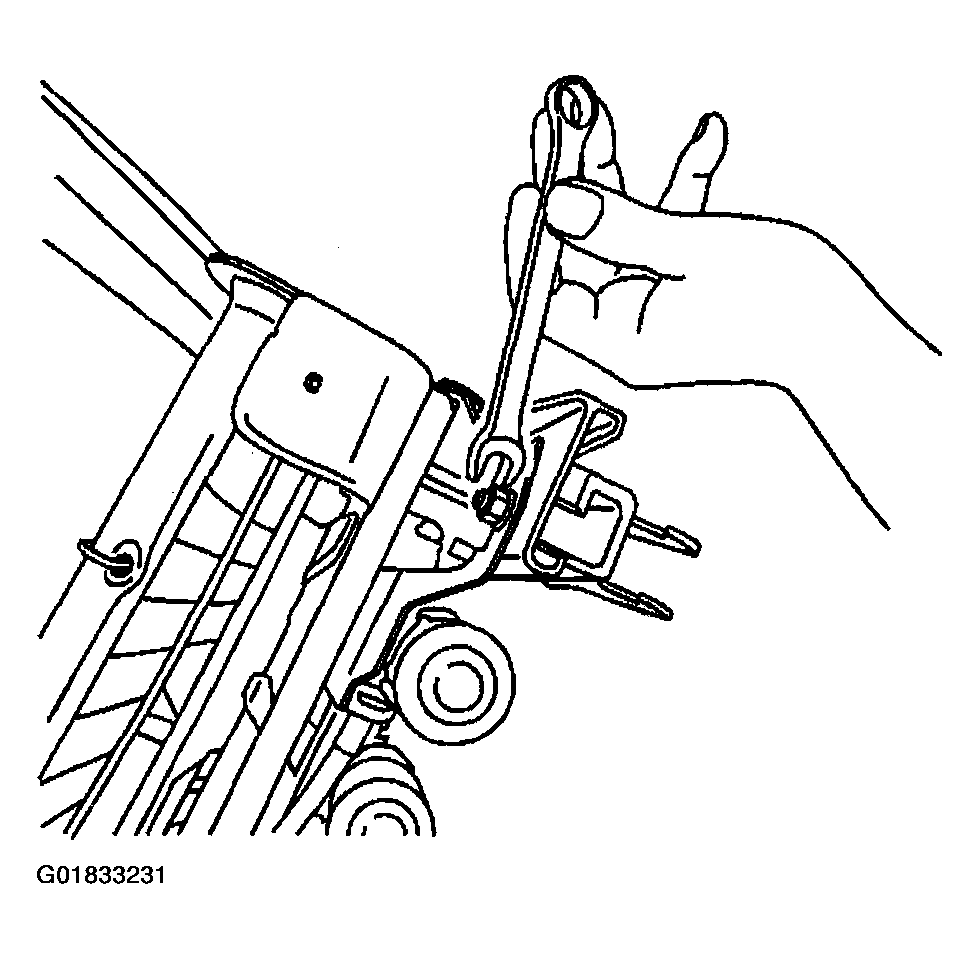

    Fig 3: Removing Seat Adjuster Support Bracket Nut
    G01833231Courtesy of GENERAL MOTORS CORP.
