Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the support bracket and actuators by the seat.
  2. Connect the horizontal and vertical drive cables.

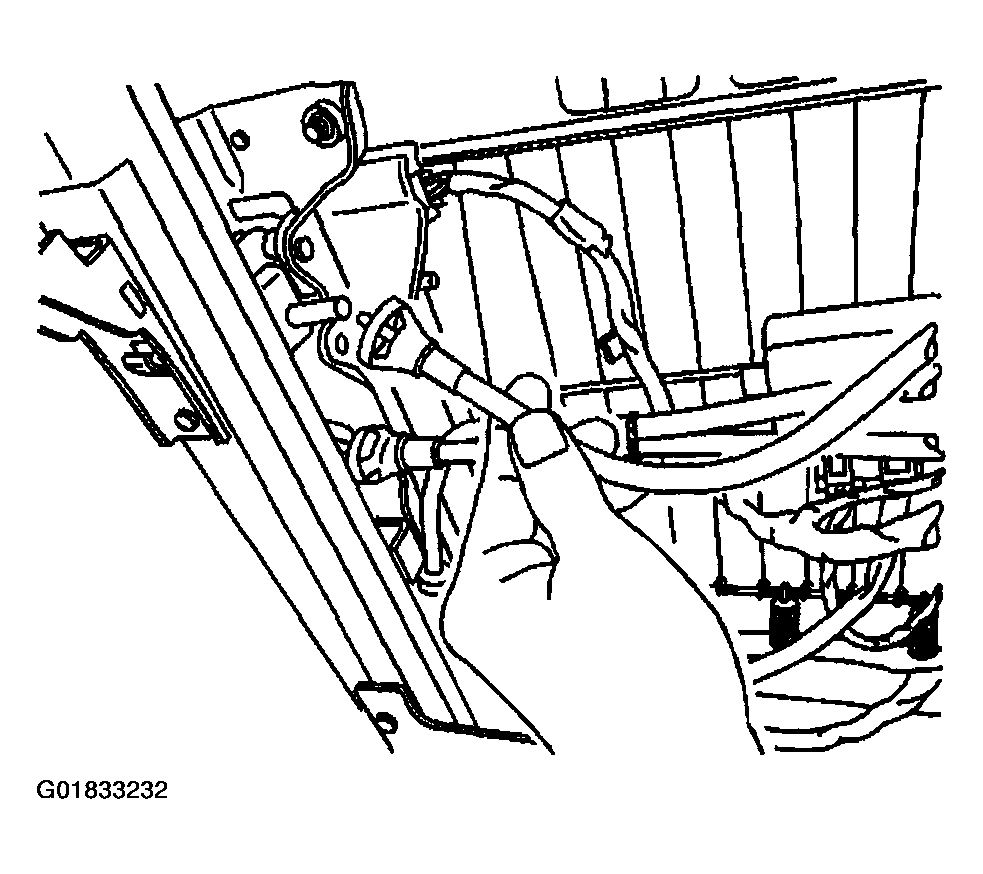

    Fig 1: Connecting Horizontal And Vertical Drive Cables
    G01833232Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the seat adjustor support bracket nut.

    Tighten

    Tighten the seat adjustor support bracket nut to 10 N.m (89 lb in).

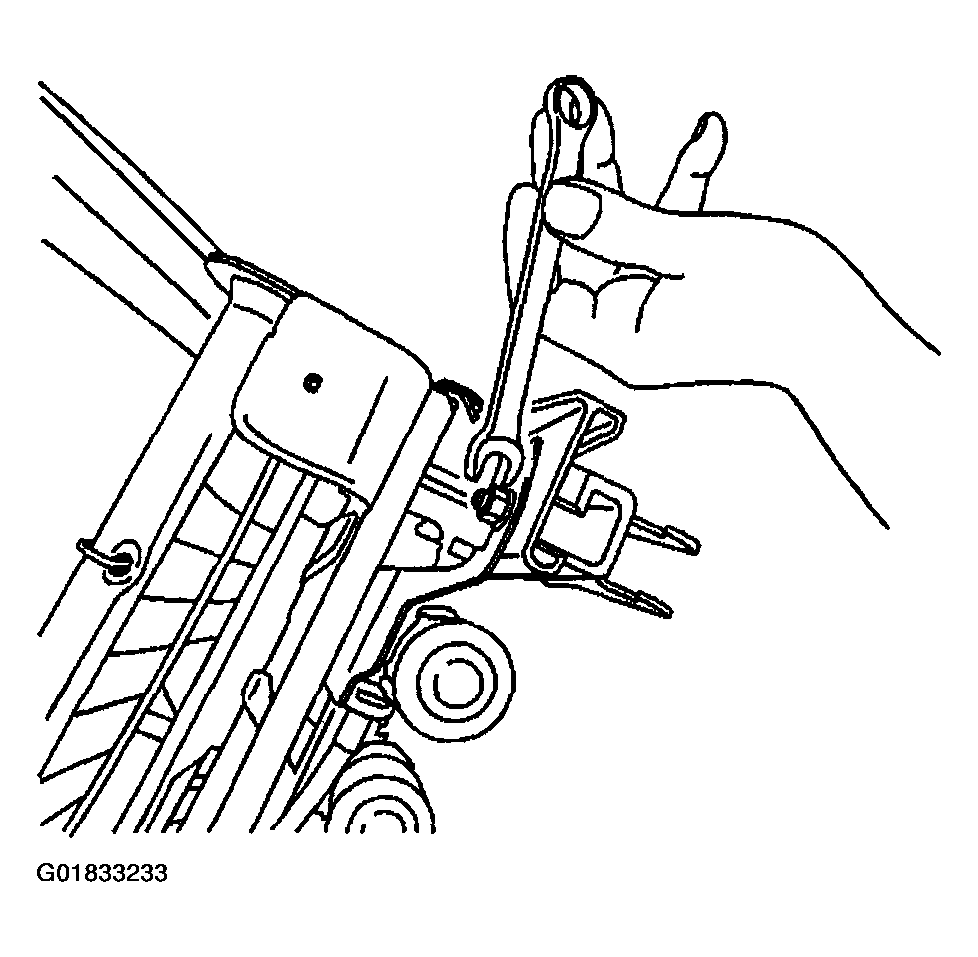

    Fig 2: Tightening Seat Adjustor Support Bracket Nut
    G01833233Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical harness rosebud to the support bracket.
  5. Connect the electrical connectors to the actuators.
  6. Install the front seat.

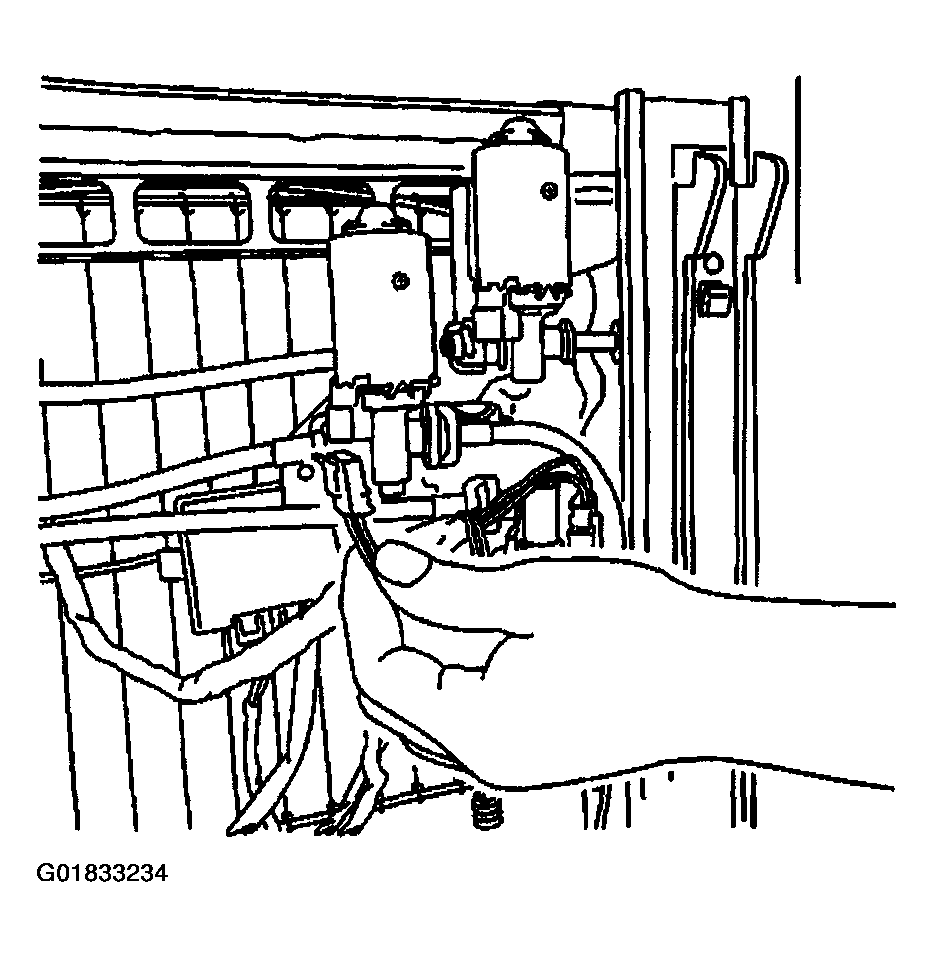

    Fig 3: Connecting Electrical Connectors To Actuators
    G01833234Courtesy of GENERAL MOTORS CORP.
