Seats - Adjuster Track Locks Ahead of Other Track

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

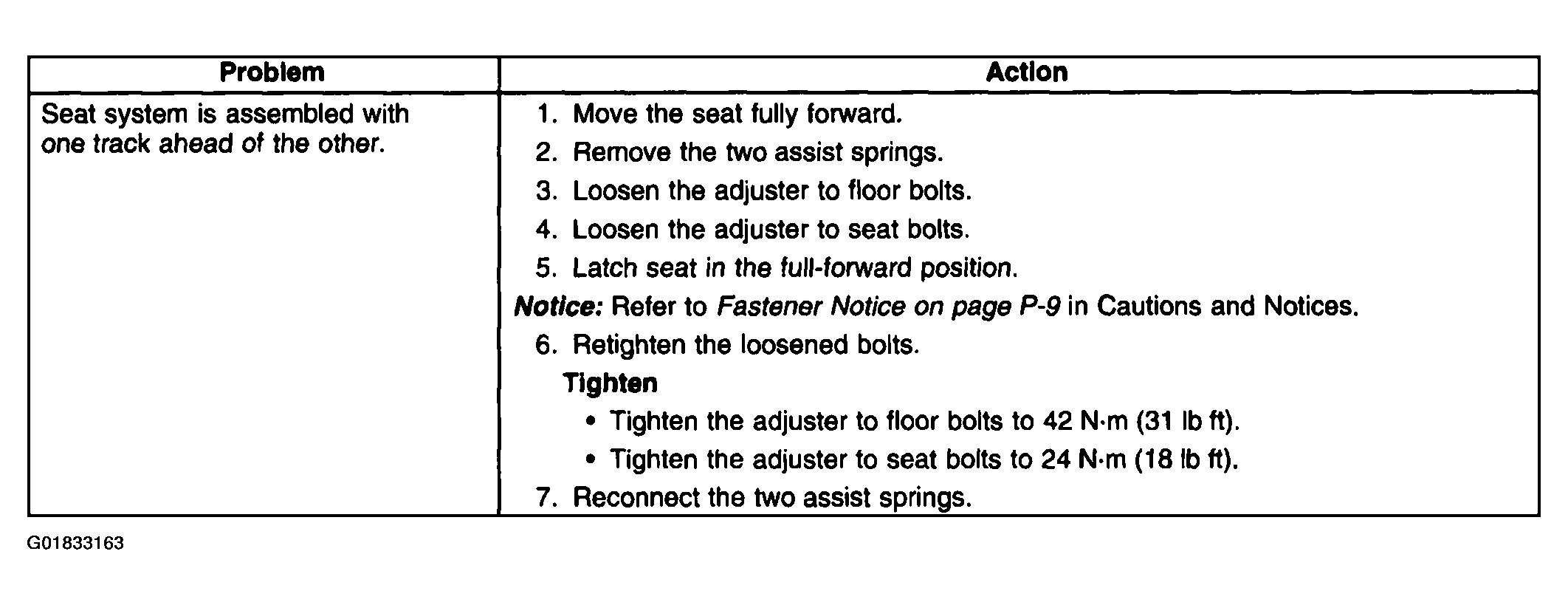

Fig 1: Seats - Adjuster Track Locks Ahead Of Other Track
G01833163Courtesy of GENERAL MOTORS CORP.
