Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the seat belt guide loop cover.
  2. Remove the guide loop nut.
  3. Remove the guide loop from the guide adjuster bracket.
  4. Remove the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR in Interior Trim.

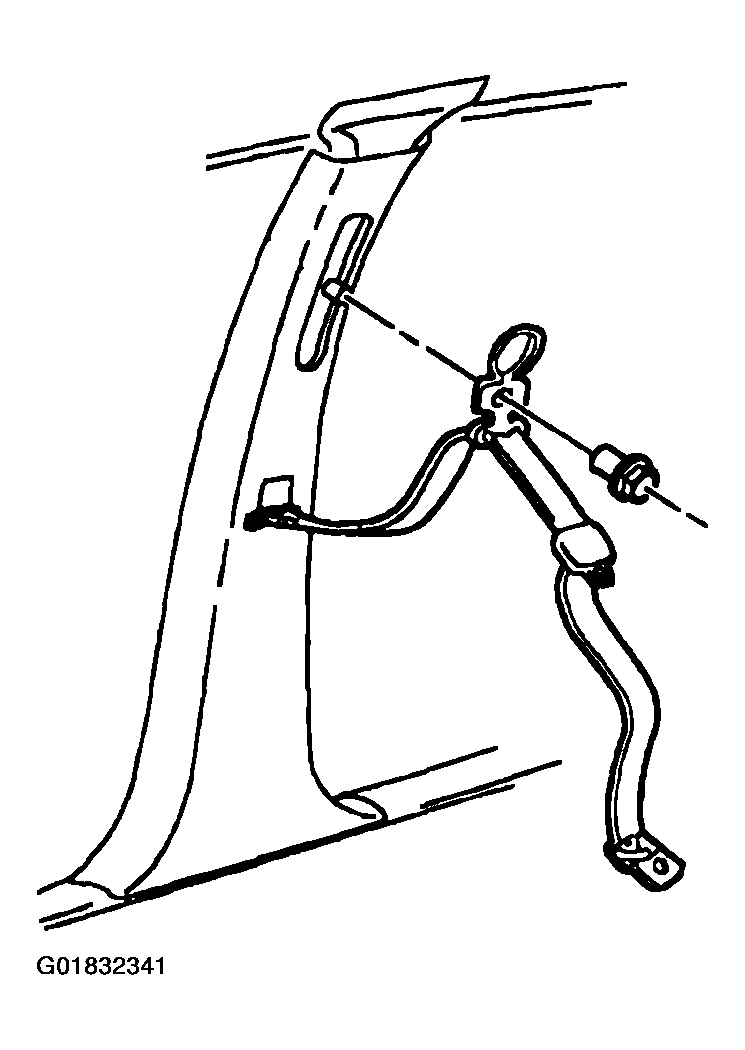

    Fig 1: Removing Guide Loop And Nut From Guide Adjuster Bracket
    G01832341Courtesy of GENERAL MOTORS CORP.
  5. Remove the shoulder belt guide adjuster bracket bolts.
  6. Remove the shoulder belt guide adjuster bracket from the center pillar.

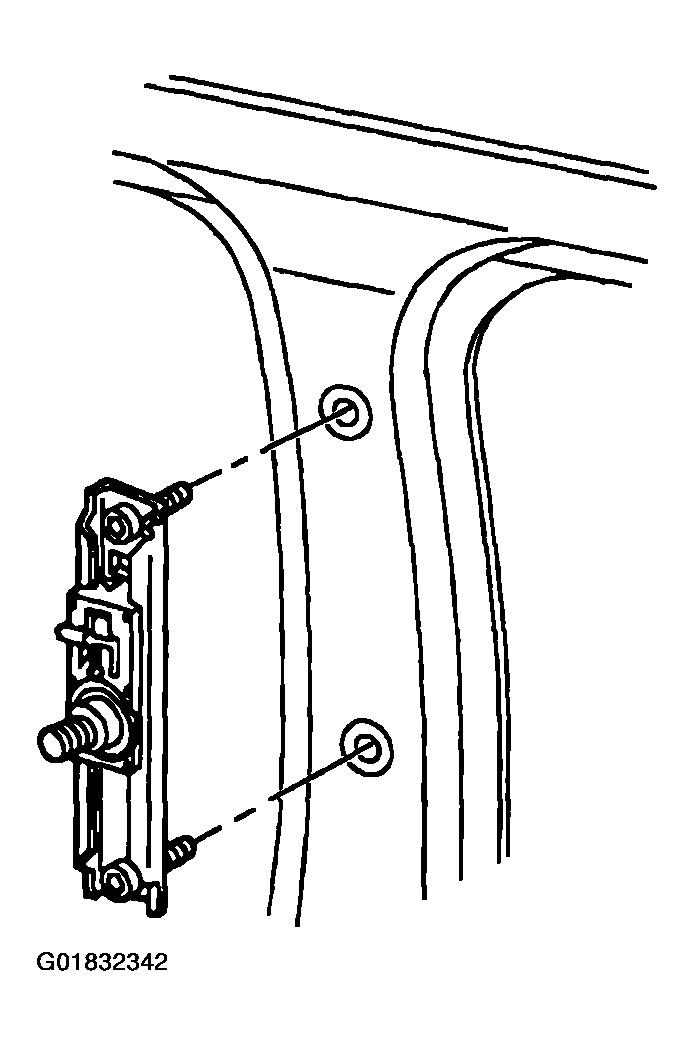

    Fig 2: Removing Shoulder Belt Guide Adjuster Bracket And Bolts From Center Pillar
    G01832342Courtesy of GENERAL MOTORS CORP.
