Installation Procedure

Important:  Verify that the release lever at the top of the bracket is in the full up position.

1. Position the shoulder belt guide adjuster bracket to the center pillar.
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
2. Install the shoulder belt guide adjuster bracket bolts.

   Tighten

   Tighten the bolts to 42 N.m (31 lb ft).

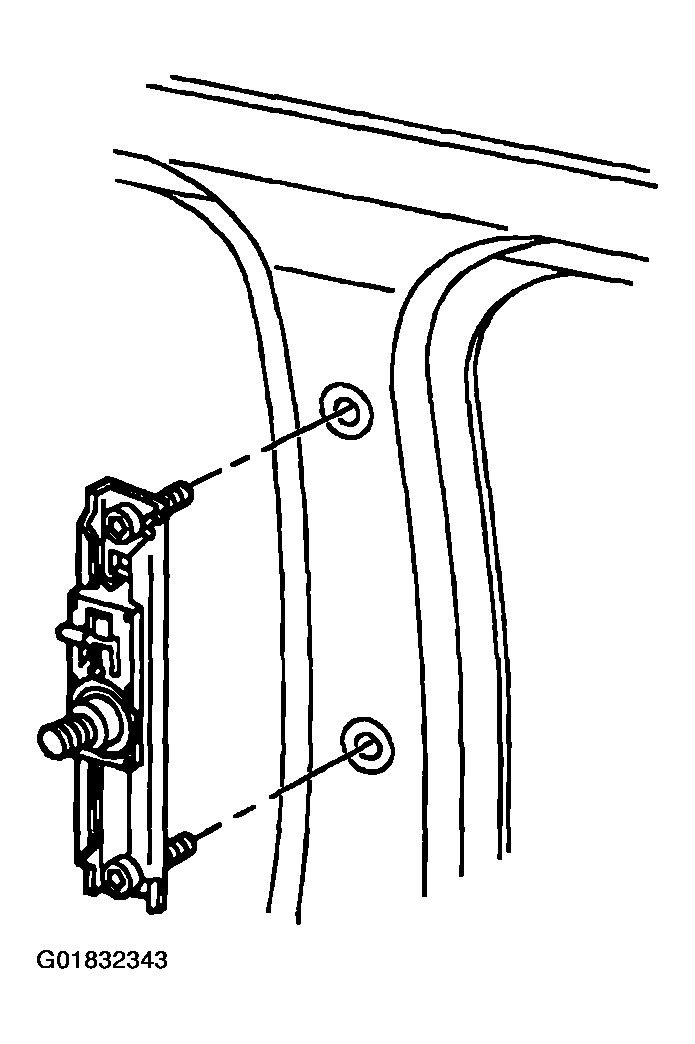

   Fig 1: Installing Shoulder Belt Guide Adjuster Bracket And Bolts

   Courtesy of GENERAL MOTORS CORP.
3. Install the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR in Interior Trim.
4. Install the guide loop to the guide adjuster bracket.
5. Install the guide loop nut.

   Tighten

   Tighten the nut to 42 N.m (31 lb ft).

6. Close the seat belt guide loop cover.

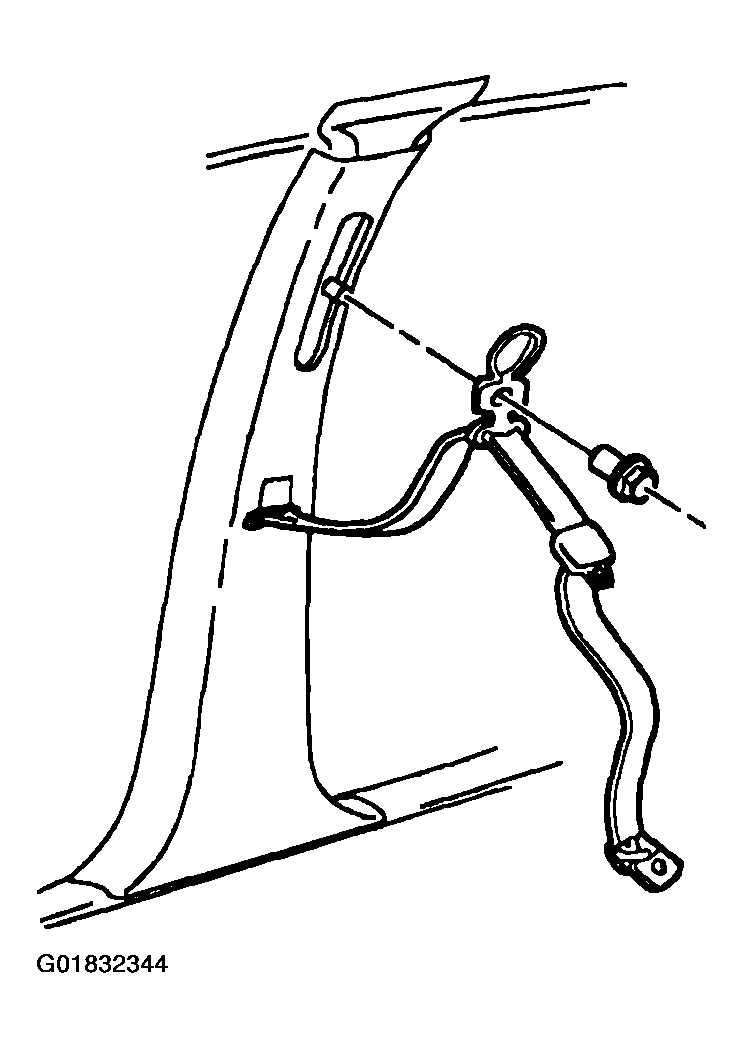

   Fig 2: Installing Guide Loop To Guide Adjuster Bracket

   Courtesy of GENERAL MOTORS CORP.
