Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) in Seats.
  3. Remove the rear quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER in Interior Trim.
  4. Remove the rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER in Interior Trim.
  5. Remove the rear seat belt retractor bolt (anchor).

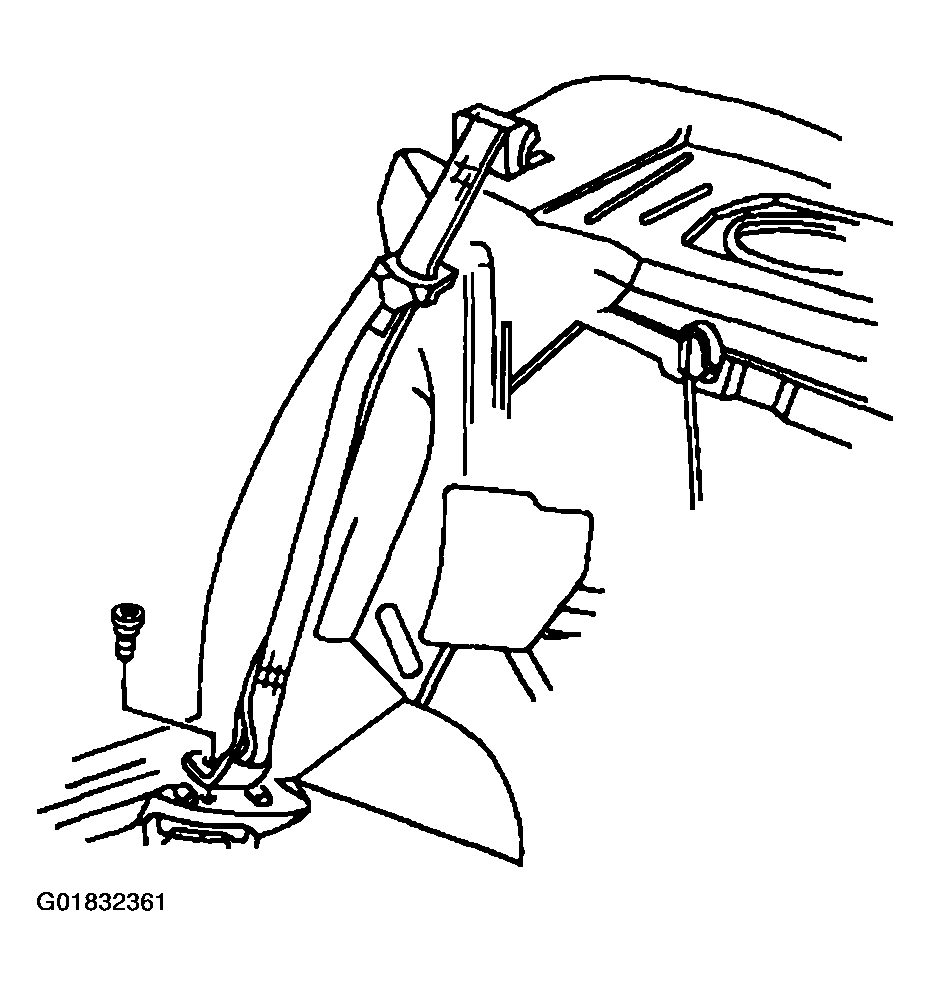

    Fig 1: Removing Rear Seat Belt Retractor Bolt (Anchor)
    G01832361Courtesy of GENERAL MOTORS CORP.
  6. Loosen the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  7. Remove the rear sound barrier. Refer to SOUND BARRIER REPLACEMENT - REAR SEAT BACK in Interior Trim.
  8. Remove the rear seat belt retractor bolt.
  9. Remove the rear seat belt retractor from the vehicle.

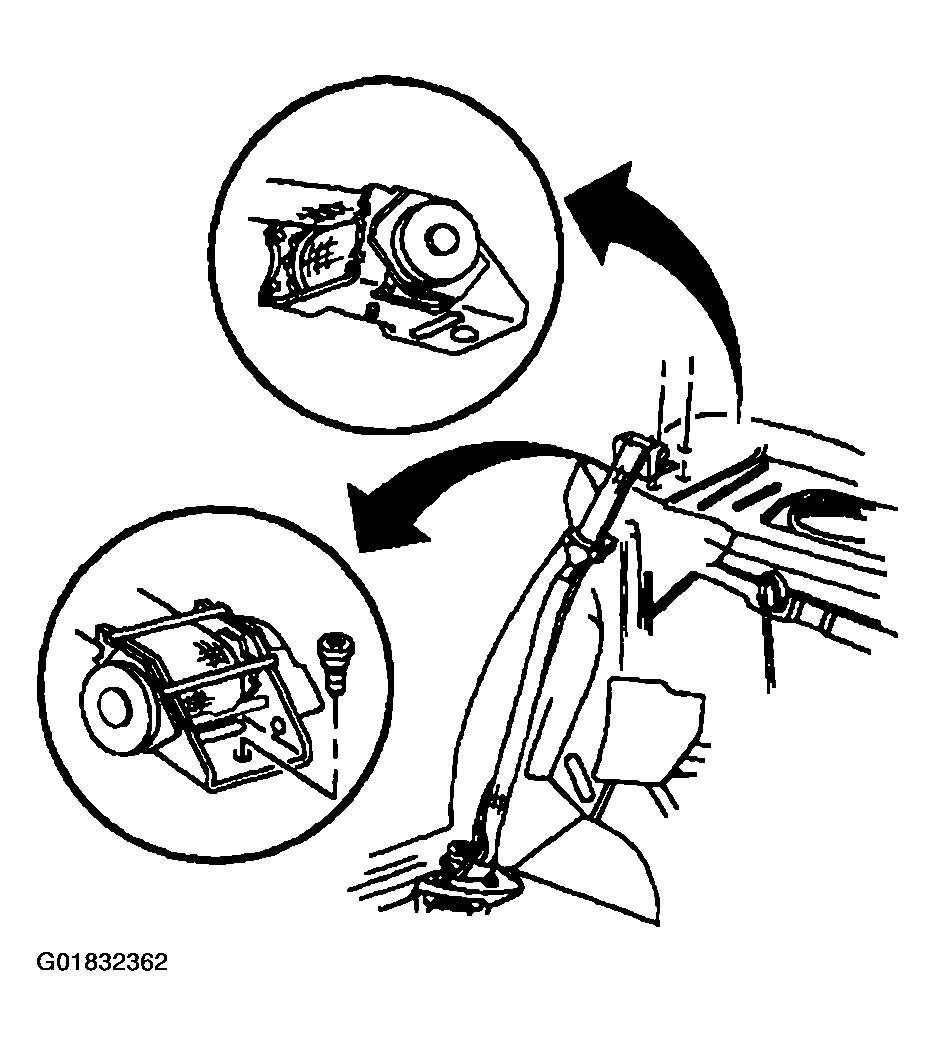

    Fig 2: Removing Rear Seat Belt Retractor From Vehicle
    G01832362Courtesy of GENERAL MOTORS CORP.
