Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat belt retractor to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

    Important:  Be sure to seat the alignment tabs.

  2. Install the rear seat belt retractor bolt.

    Tighten

    Tighten the bolt to 68 N.m (50 lb ft).

  3. Install the rear sound barrier. Refer to SOUND BARRIER REPLACEMENT - REAR SEAT BACK in Interior Trim.
  4. Install the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.

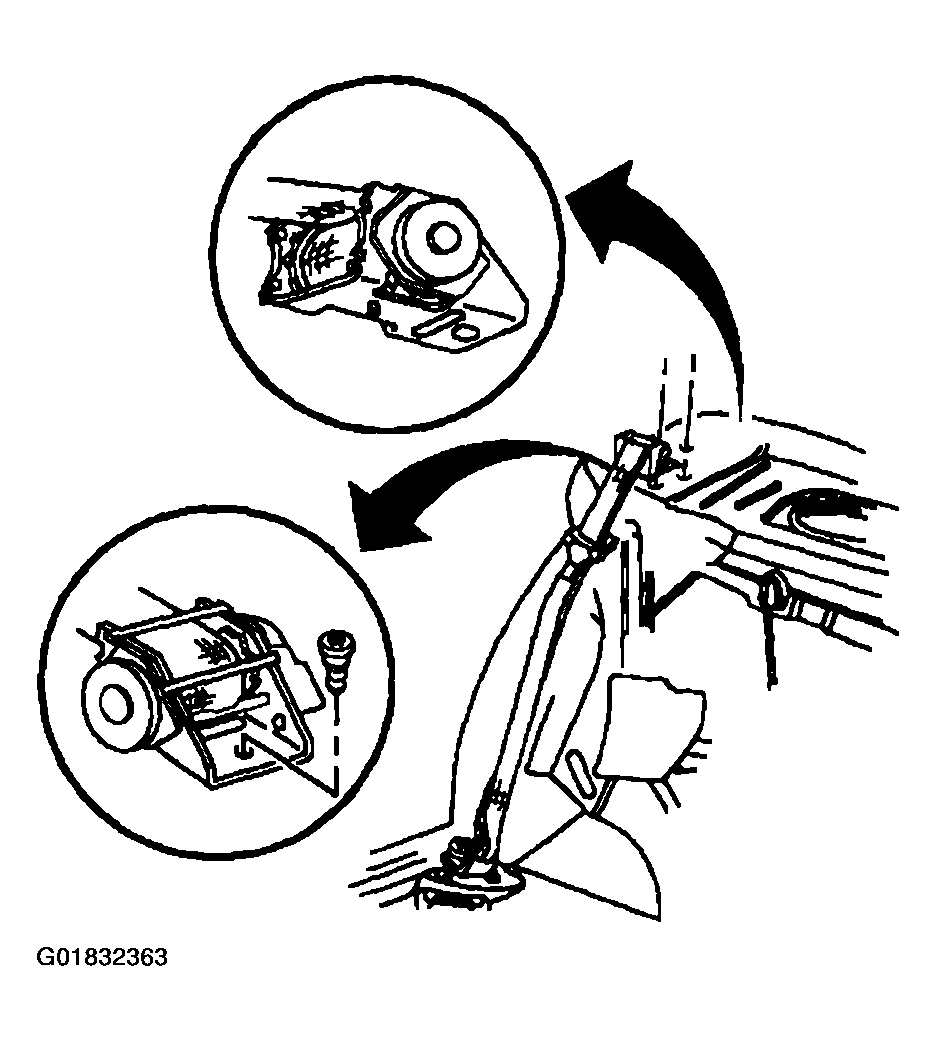

    Fig 1: Installing Rear Seat Belt Retractor To Vehicle
    G01832363Courtesy of GENERAL MOTORS CORP.
  5. Install the rear seat belt retractor bolt (anchor).

    Tighten

    Tighten the bolt to 42 N.m (31 lb ft).

  6. Install the rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER in Interior Trim.
  7. Install the rear quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER in Interior Trim.
  8. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) in Seats.
  9. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.

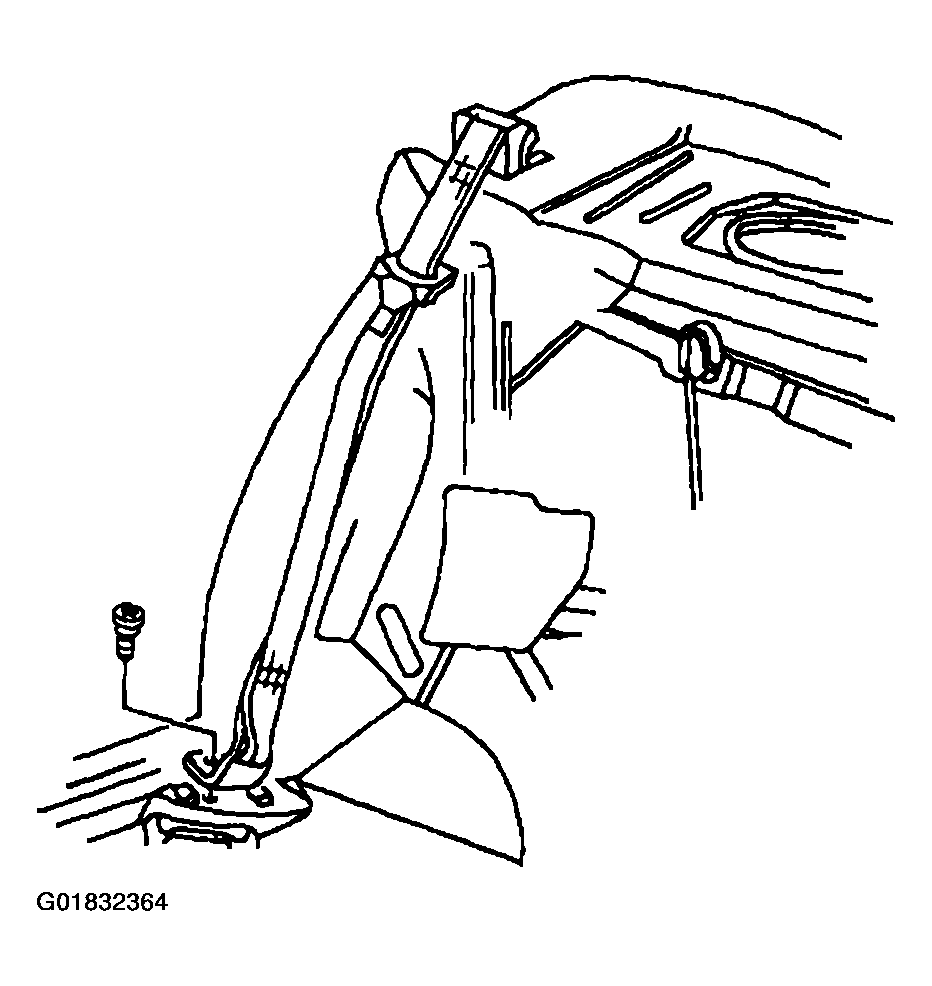

    Fig 2: Installing Rear Seat Belt Retractor Bolt (Anchor)
    G01832364Courtesy of GENERAL MOTORS CORP.
