Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  2. Remove the center seat belt nuts.
  3. Remove the center seat belts from the vehicle.

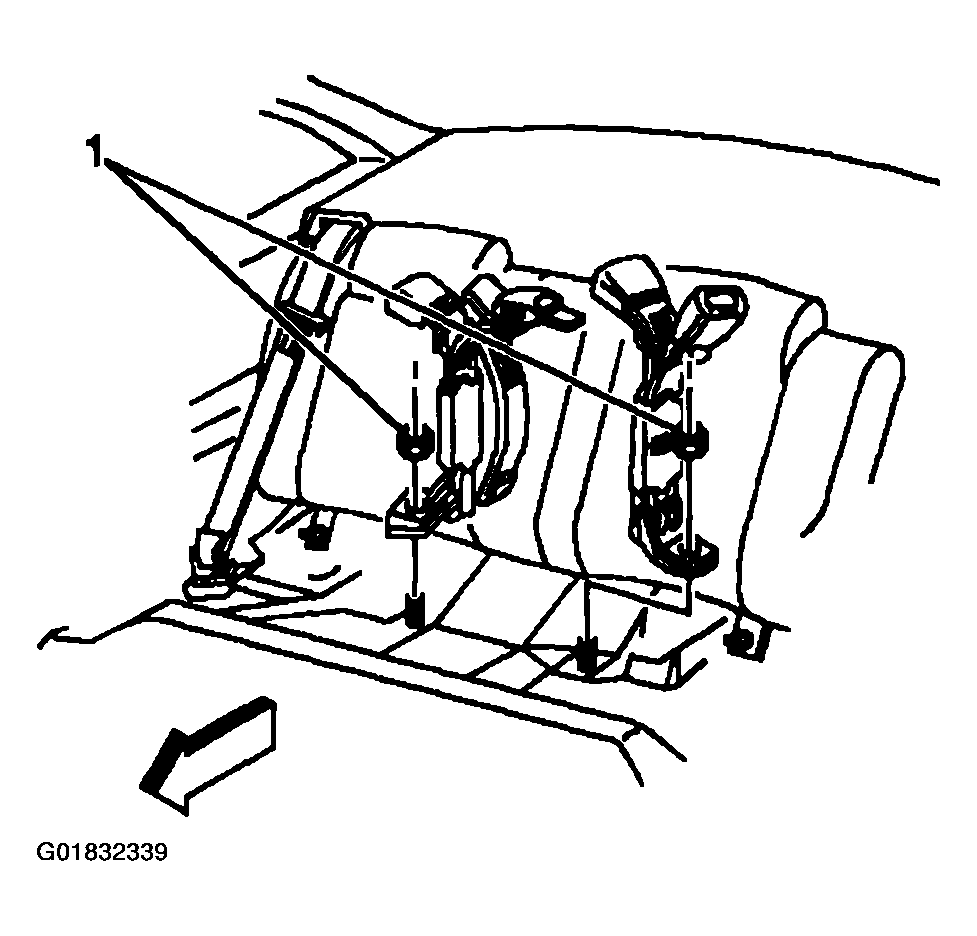

    Fig 1: Removing Center Seat Belts And Nuts From Vehicle
    G01832339Courtesy of GENERAL MOTORS CORP.
