Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the passengers seat to the forward position.
  2. Remove the seat belt buckle nut.
  3. Remove the seat belt buckle from the passengers seat.

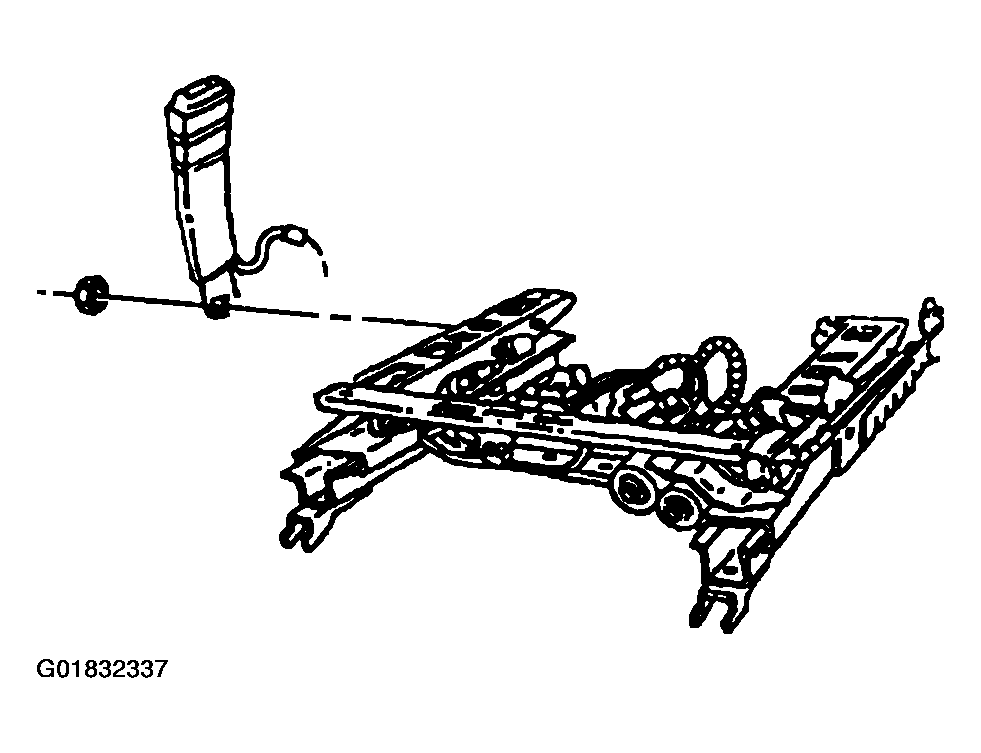

    Fig 1: Removing Seat Belt Buckle And Nut From Passengers Seat
    G01832337Courtesy of GENERAL MOTORS CORP.
