Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle to the passengers seat.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat belt buckle nut.

    Tighten

    Tighten the seat belt buckle nut to 42 N.m (31 lb ft).

  3. Position the passengers seat to the original position.

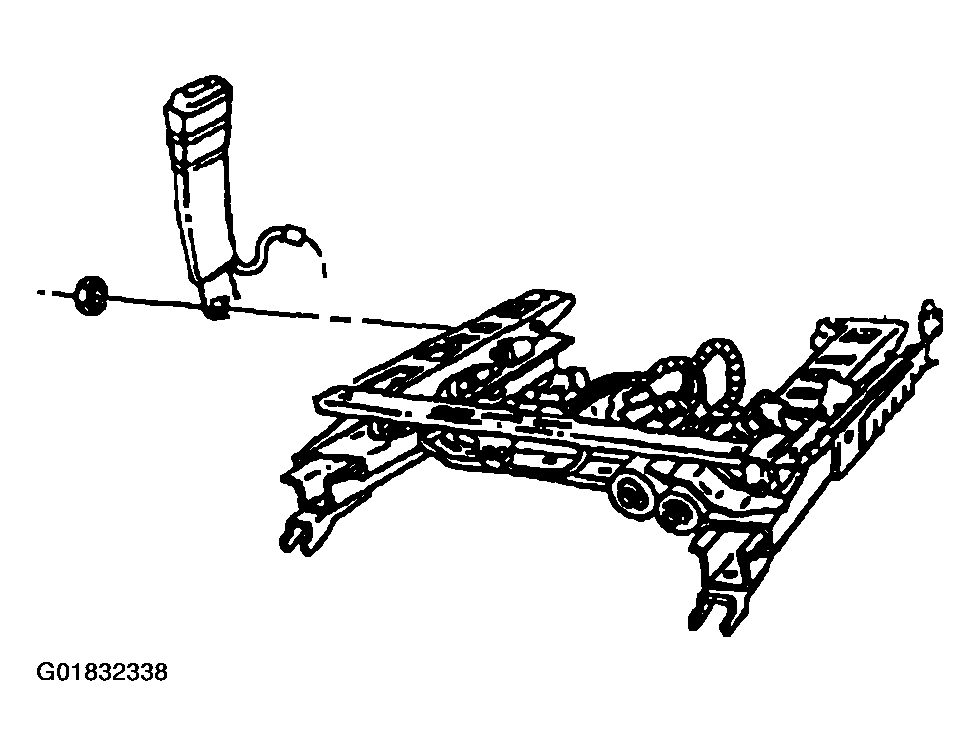

    Fig 1: Installing Seat Belt Buckle And Nut From Passengers Seat
    G01832338Courtesy of GENERAL MOTORS CORP.
