Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the drivers seat to the forward position.
  2. Remove the seat belt buckle nut.
  3. Disconnect the electrical connector.
  4. Remove the seat belt buckle from the drivers seat.

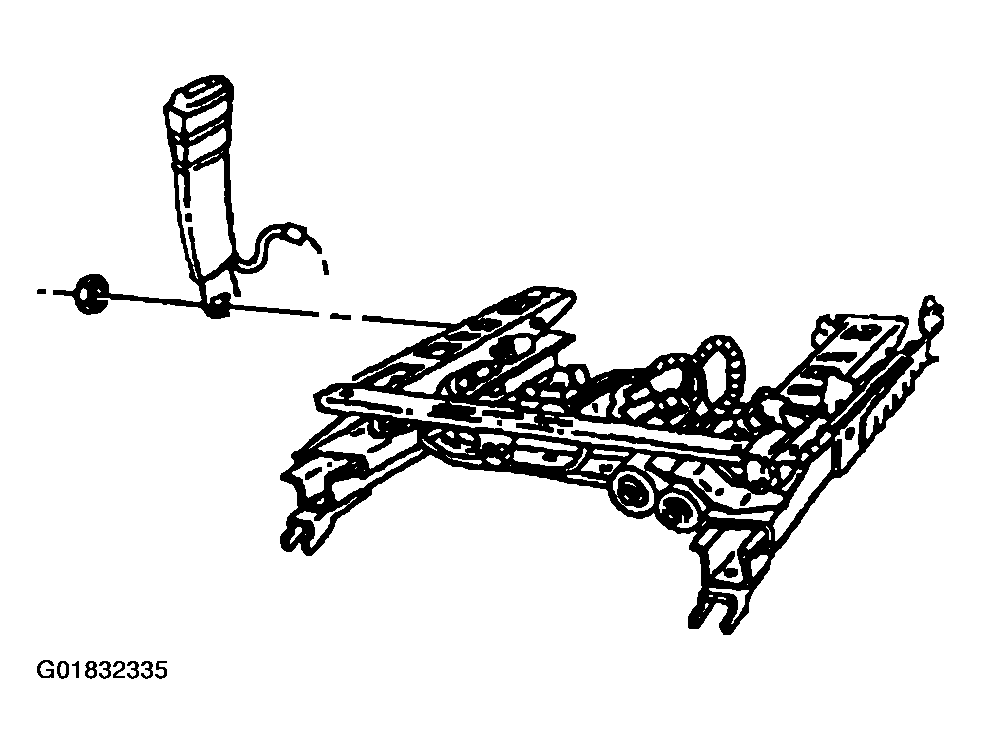

    Fig 1: Removing Seat Belt Buckle And Nut From Drivers Seat
    G01832335Courtesy of GENERAL MOTORS CORP.
