Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle to the drivers seat.
  2. Connect the electrical connector.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the seat belt buckle nut.

    Tighten

    Tighten the nut to 42 N.m (31 lb ft).

  4. Position the drivers seat to the original position.

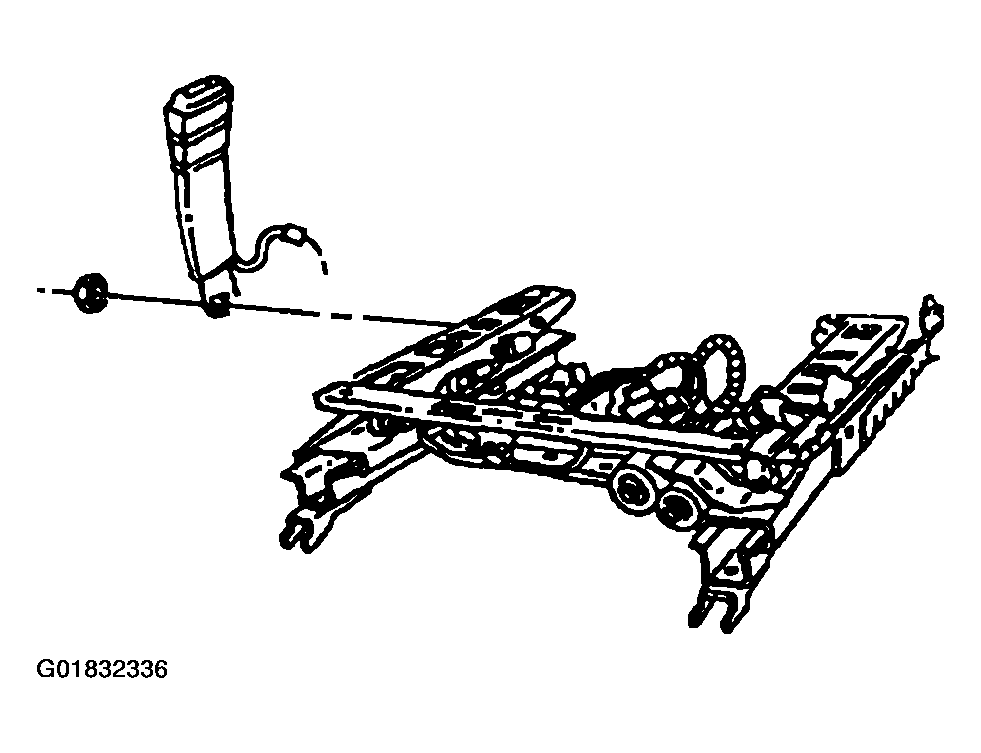

    Fig 1: Installing Seat Belt Buckle And Nut From Drivers Seat
    G01832336Courtesy of GENERAL MOTORS CORP.
