Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  2. Remove the child seat tether bracket to rear shelf bolts.
  3. Turn the child seat tether brackets 90 degrees.
  4. Lift the child seat tether brackets to remove from the rear shelf.

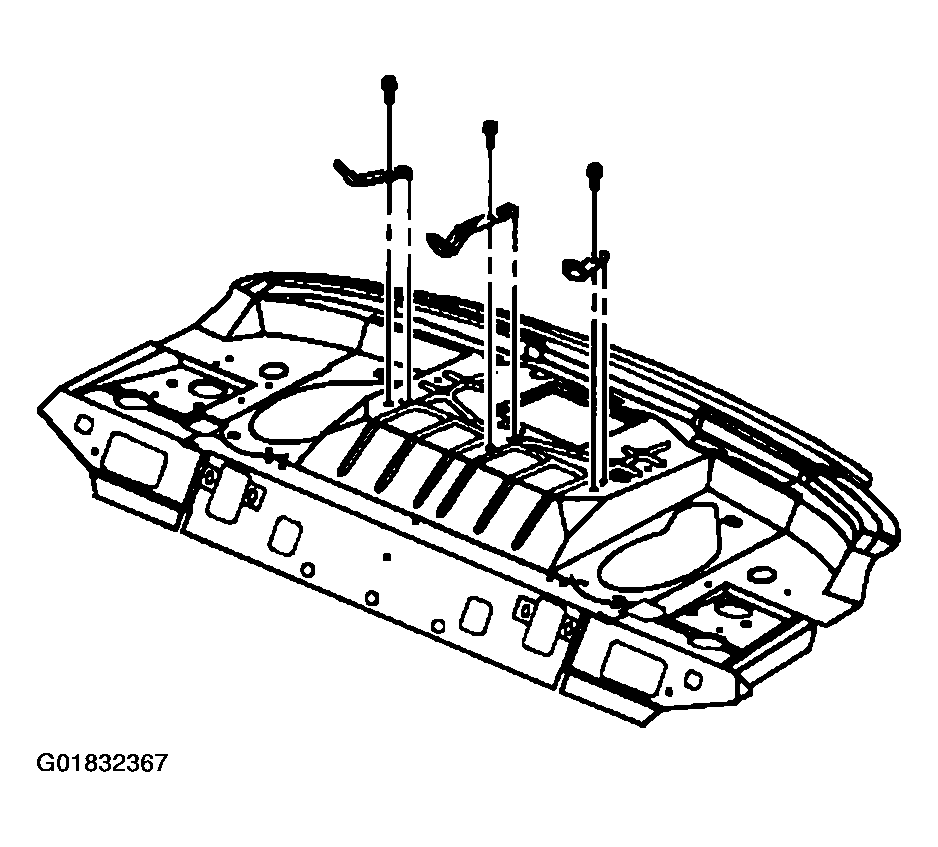

    Fig 1: Removing Child Seat Tether Bracket To Rear Shelf Bolts
    G01832367Courtesy of GENERAL MOTORS CORP.
