Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) in Seats.
  2. Remove the rear center seat belts. Refer to Seat Belt Replacement - Center Rear
  3. Remove the bracket nut (1) located between the center seat belts.
  4. Remove the bolts (2) from each end of the bracket.
  5. Remove the bracket from the vehicle.

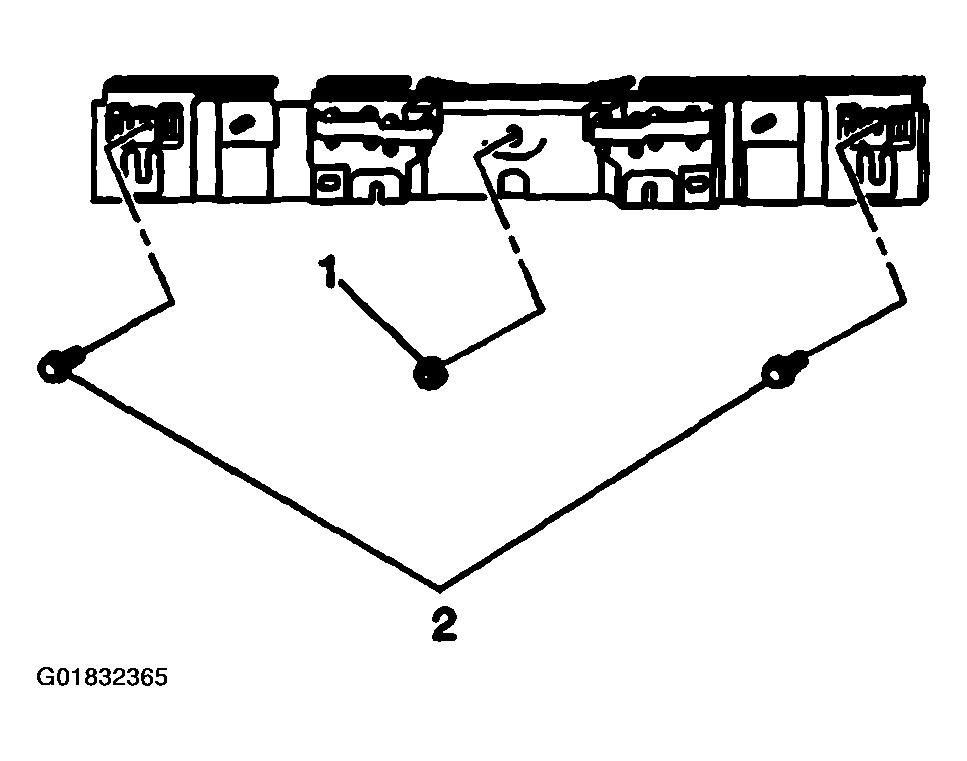

    Fig 1: Removing Bracket Nut And Bolts
    G01832365Courtesy of GENERAL MOTORS CORP.
