Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the bracket in the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Apply a thread sealant, GM P/N USA 12345382 Canada 10953489, Loctite 242, Permatex 24200 to the threads of the bolts (2) and also the stud for the bracket nut (1).
  3. Install the bolts (2) to each end of the bracket.

    Tighten

    Tighten the bolts to 42 N.m (31 lb ft).

  4. Install the bracket nut (1) between the center seat belts.

    Tighten

    Tighten the child seat latch bracket nut to 42 N.m (31 lb ft).

  5. Install the rear center seat belts. Refer to Seat Belt Replacement - Center Rear
  6. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) in Seats.

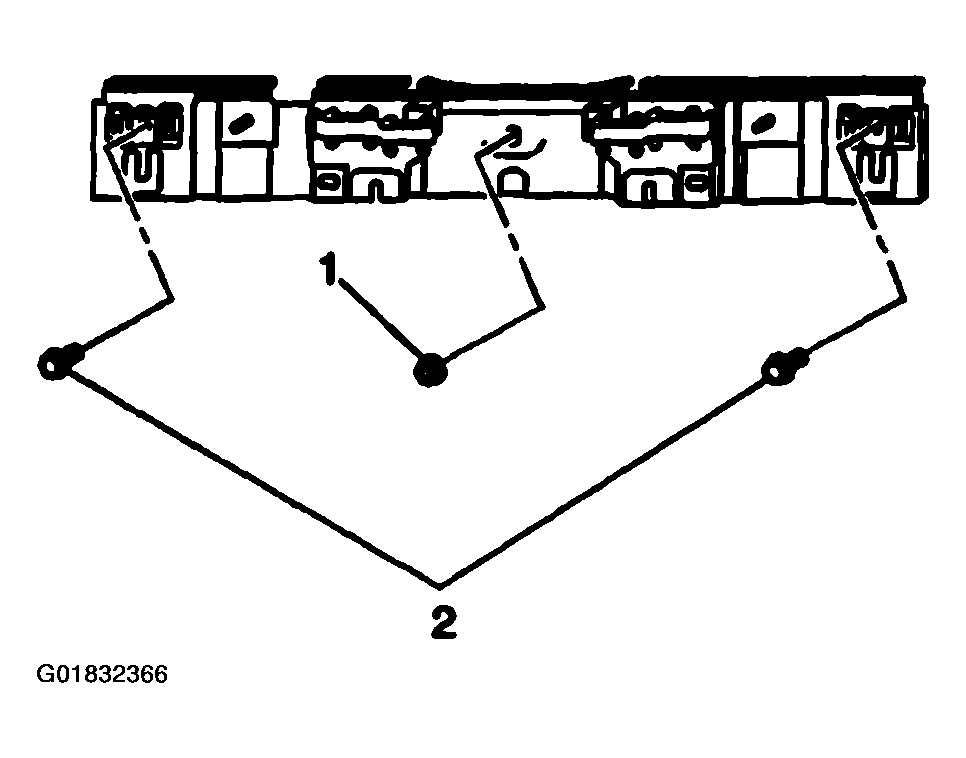

    Fig 1: Installing Bracket Nut And Bolts
    G01832366Courtesy of GENERAL MOTORS CORP.
