Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the right headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT .
  3. Disconnect the horn electrical connector.

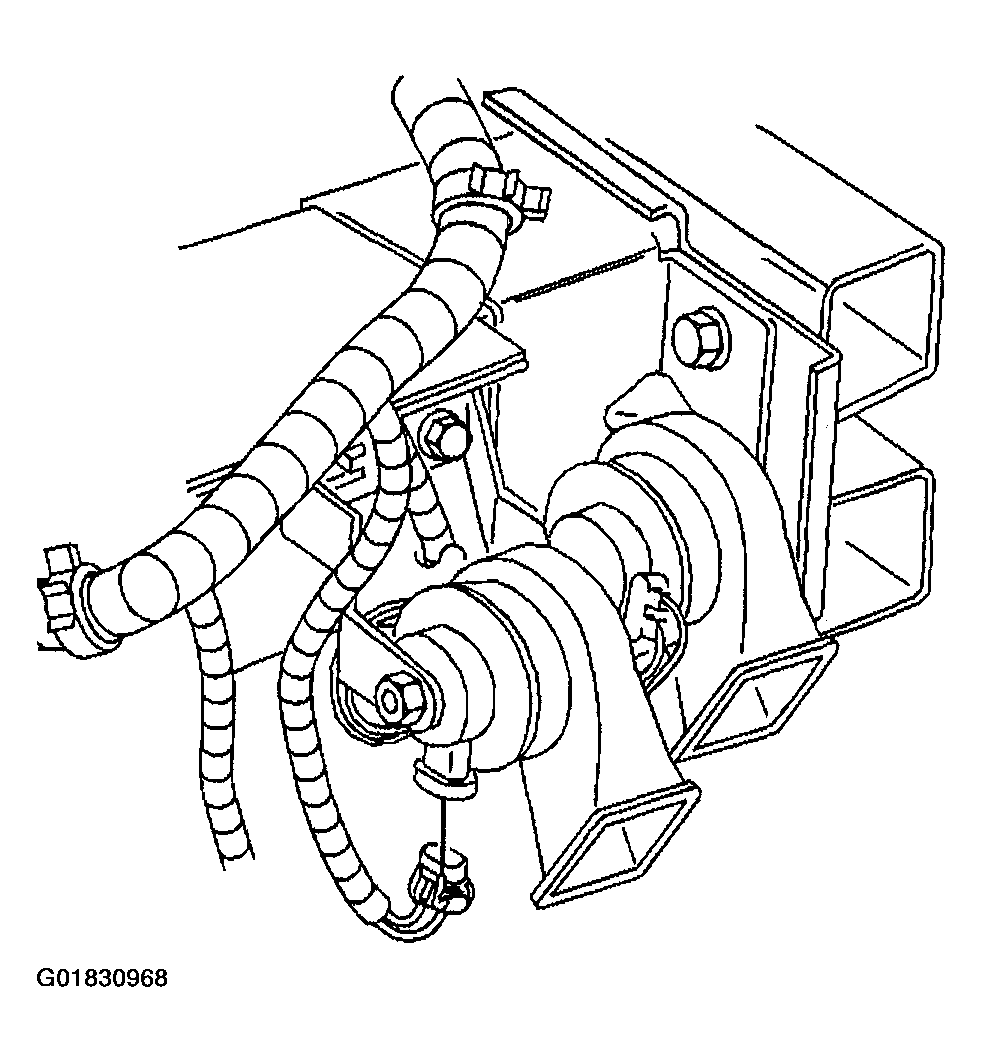

    Fig 1: Remove Right Headlamp Assembly & Horn Electrical Connector
    G01830968Courtesy of GENERAL MOTORS CORP.
  4. Remove the horn bracket bolt.
  5. Remove the horn from the frame rail extension.

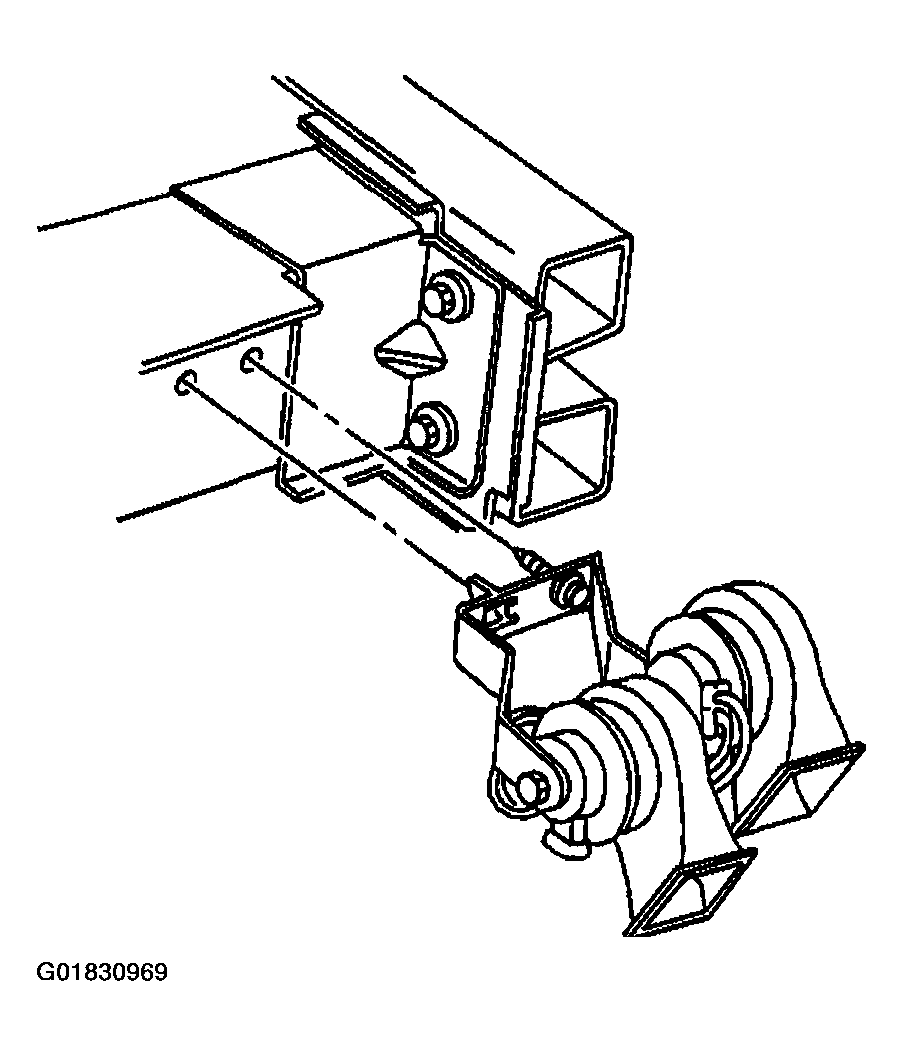

    Fig 2: Remove Horn Bracket Bolt & Horn
    G01830969Courtesy of GENERAL MOTORS CORP.
