Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the horn to the frame rail extension; insert the horn anti-rotation tab into the slot on the frame rail.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the horn bracket bolt.

    Tighten

    Tighten the bolt to 15 N.m (11 lb ft).

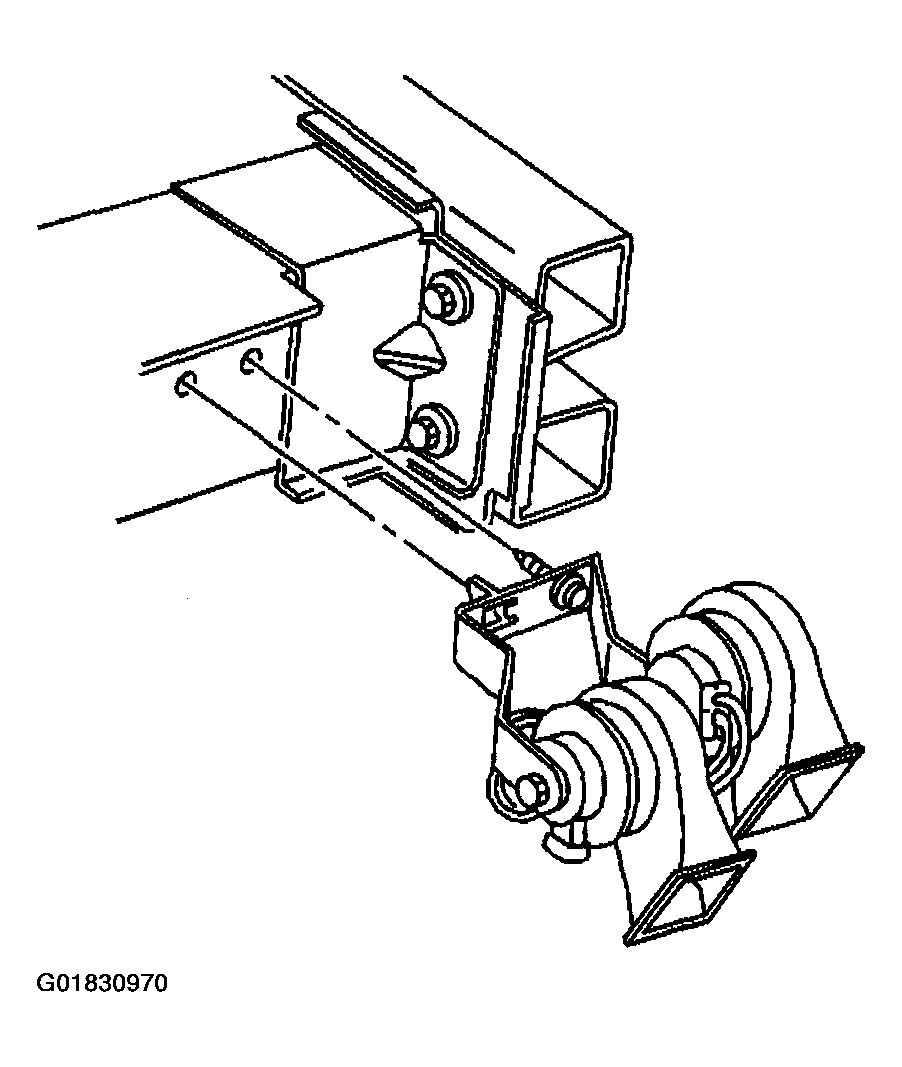

    Fig 1: Install Horn Bracket Bolt & Horn
    G01830970Courtesy of GENERAL MOTORS CORP.
  3. Connect the horn electrical connector.
  4. Install the right headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT .
  5. Close the hood.

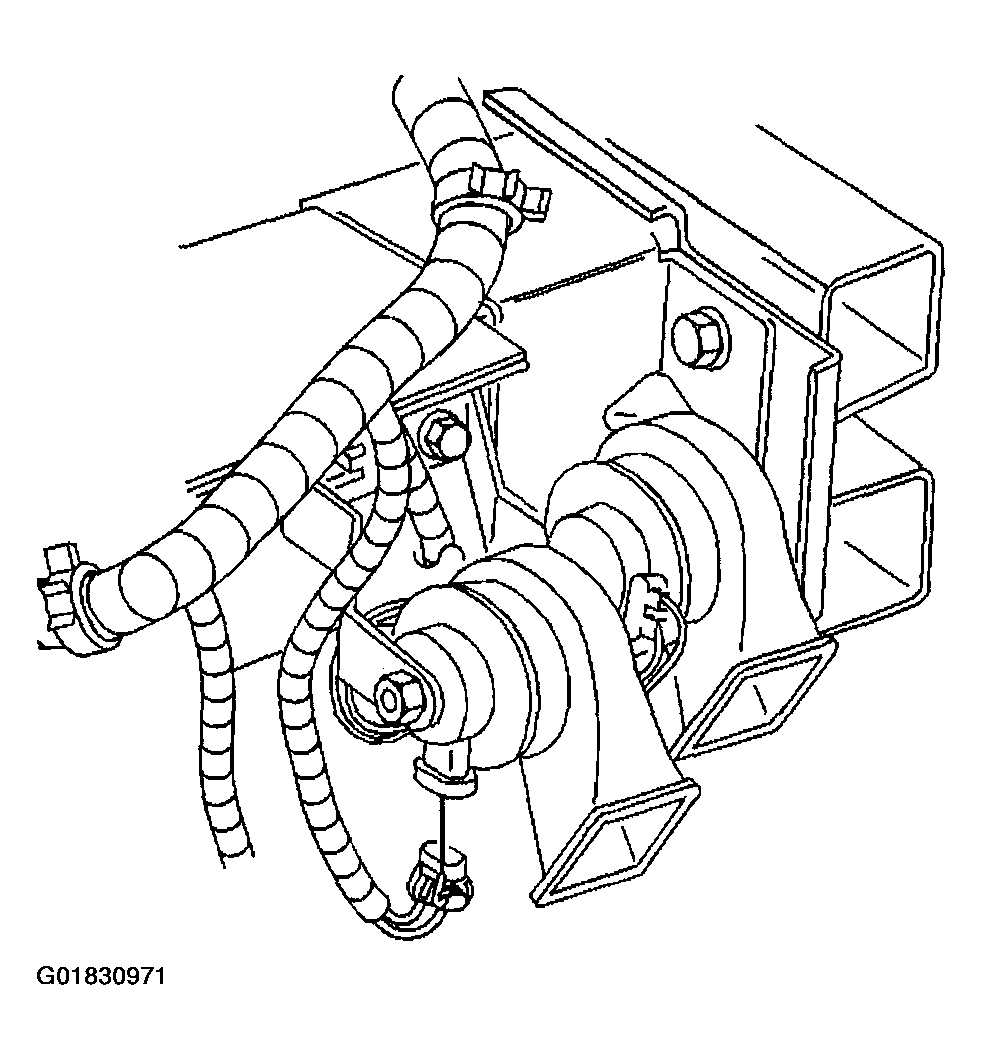

    Fig 2: Install Right Headlight Assembly & Horn Electrical Connector
    G01830971Courtesy of GENERAL MOTORS CORP.
