Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the cover from the underhood electrical center.

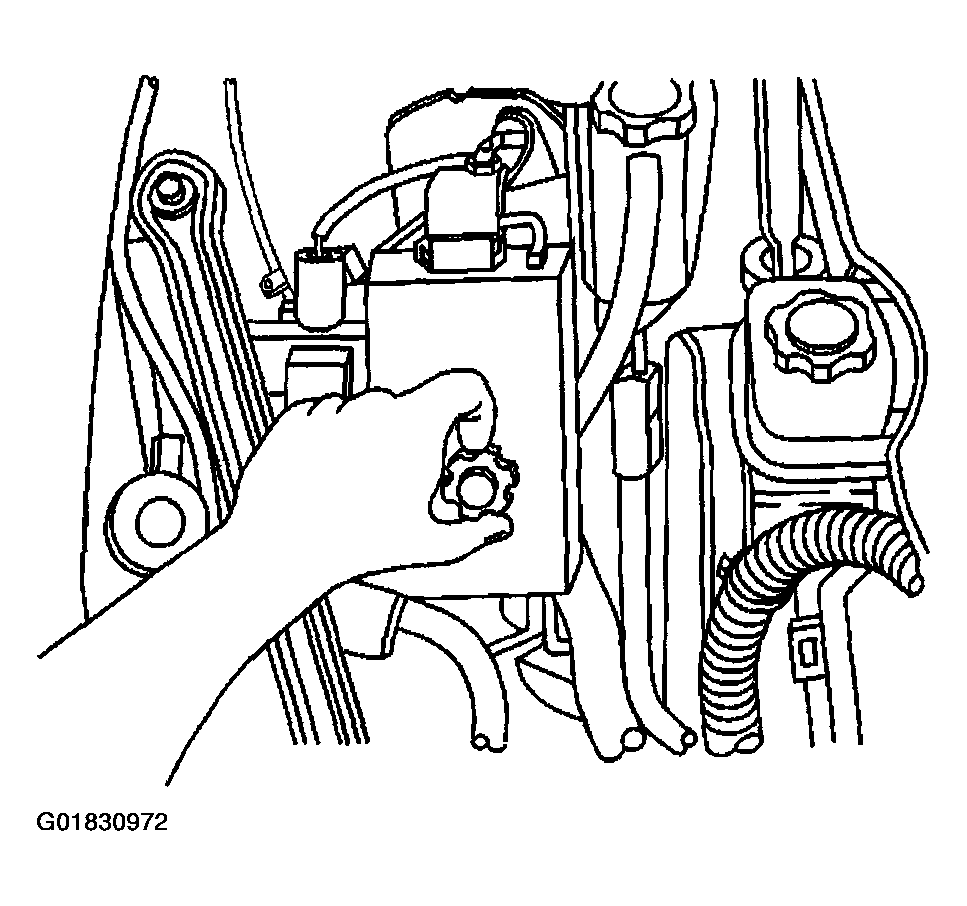

    Fig 1: Remove Cover From Underhood Electrical Center
    G01830972Courtesy of GENERAL MOTORS CORP.
  3. Using J 43244,  remove the horn relay (1) from the underhood electrical center.

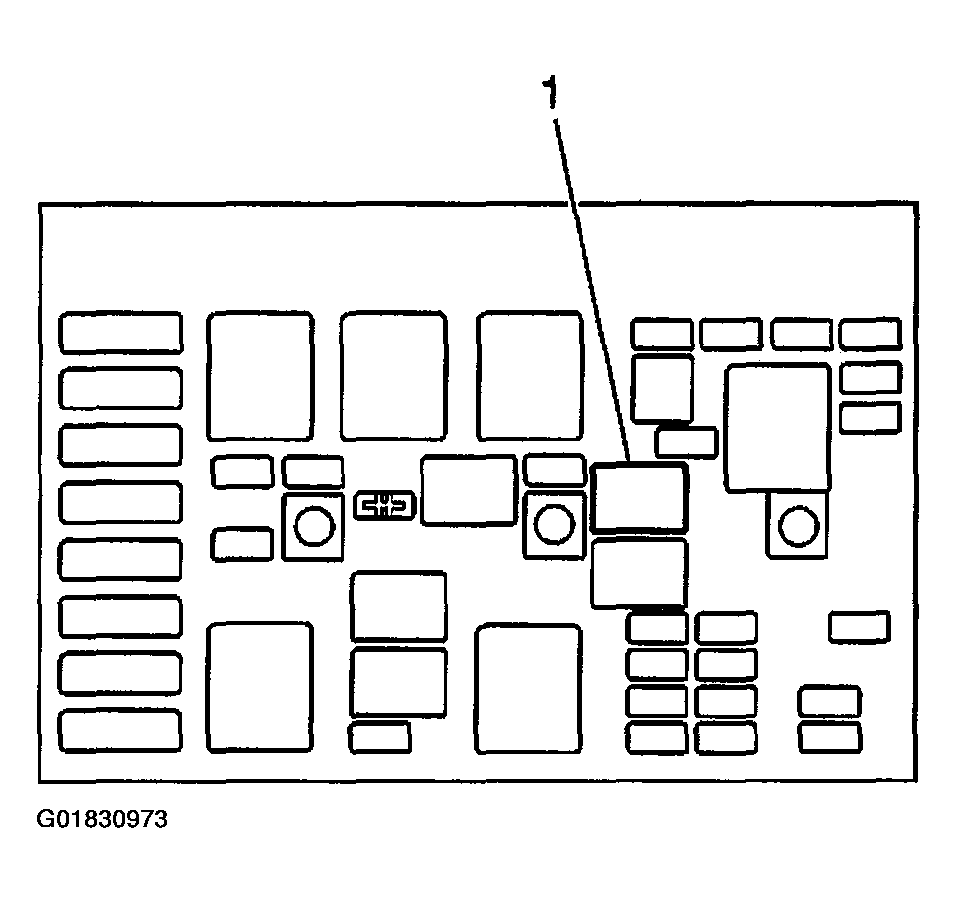

    Fig 2: Remove Horn Relay Using J 43244
    G01830973Courtesy of GENERAL MOTORS CORP.
