Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the horn relay (1) to the underhood electrical center pressing in until fully seated.

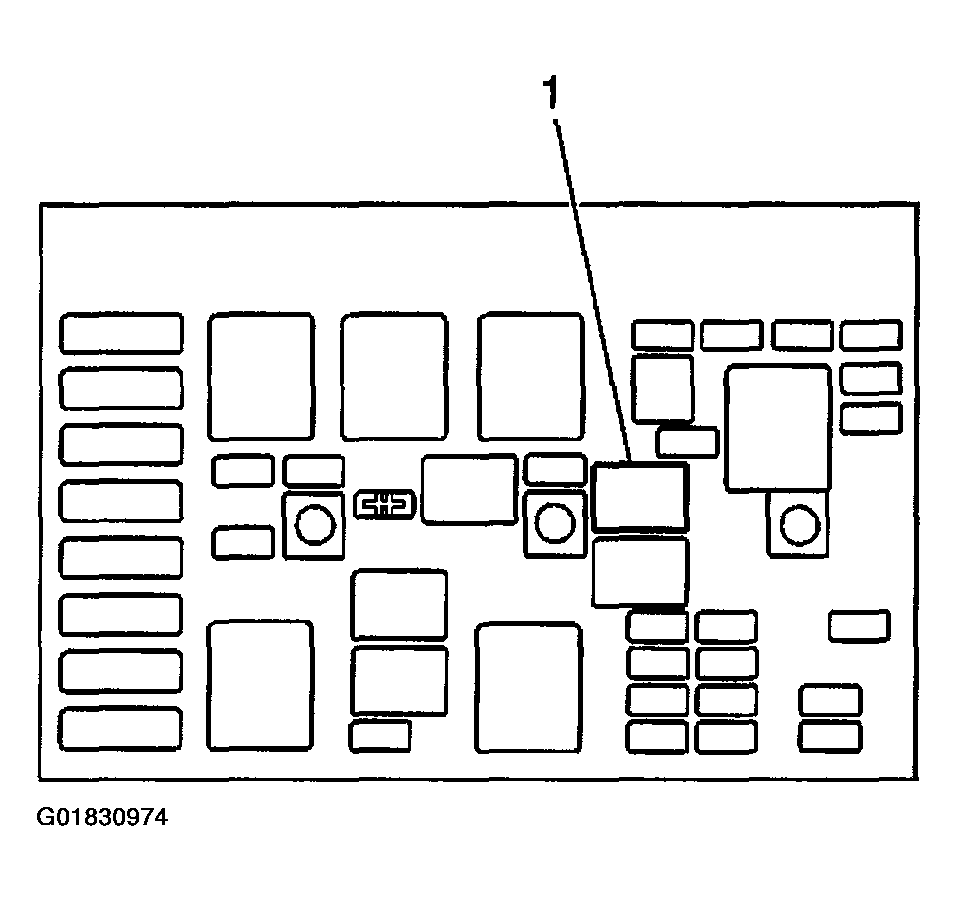

    Fig 1: Position Horn Relay To Underhood Electrical Center
    G01830974Courtesy of GENERAL MOTORS CORP.
  2. Install the cover to the underhood electrical center.
  3. Close the hood.

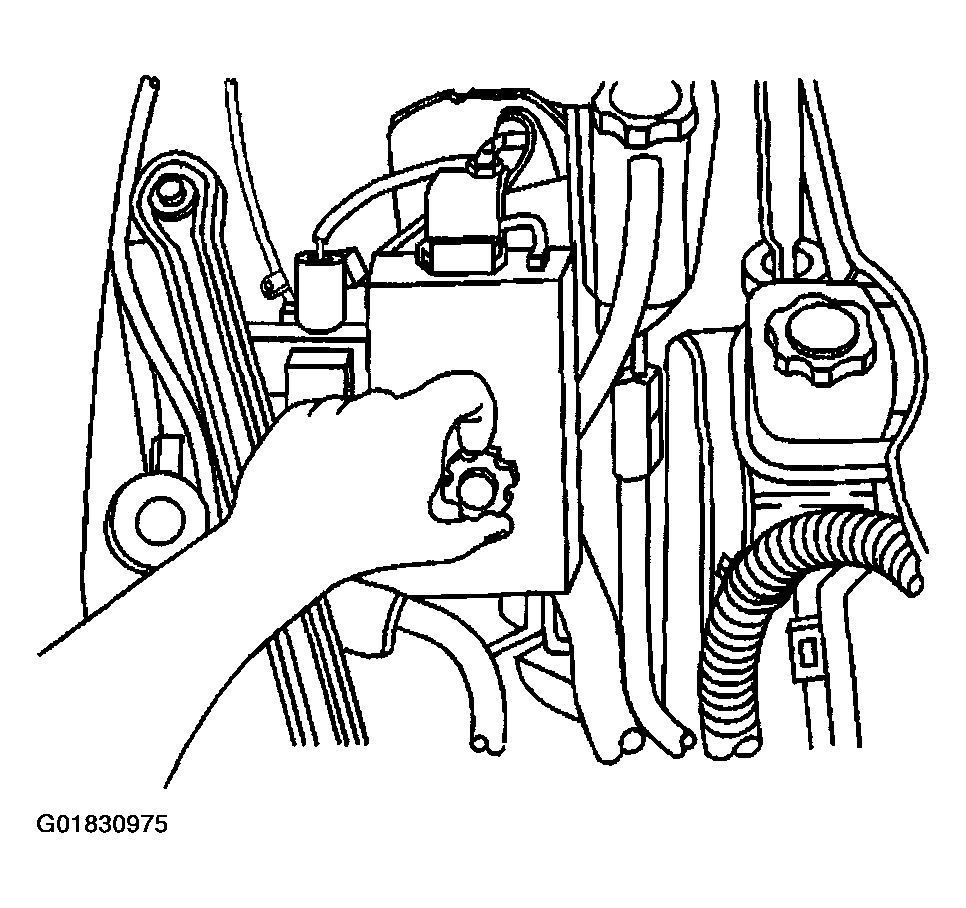

    Fig 2: Install Cover To Underhood Electrical Center
    G01830975Courtesy of GENERAL MOTORS CORP.
