Test Description
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

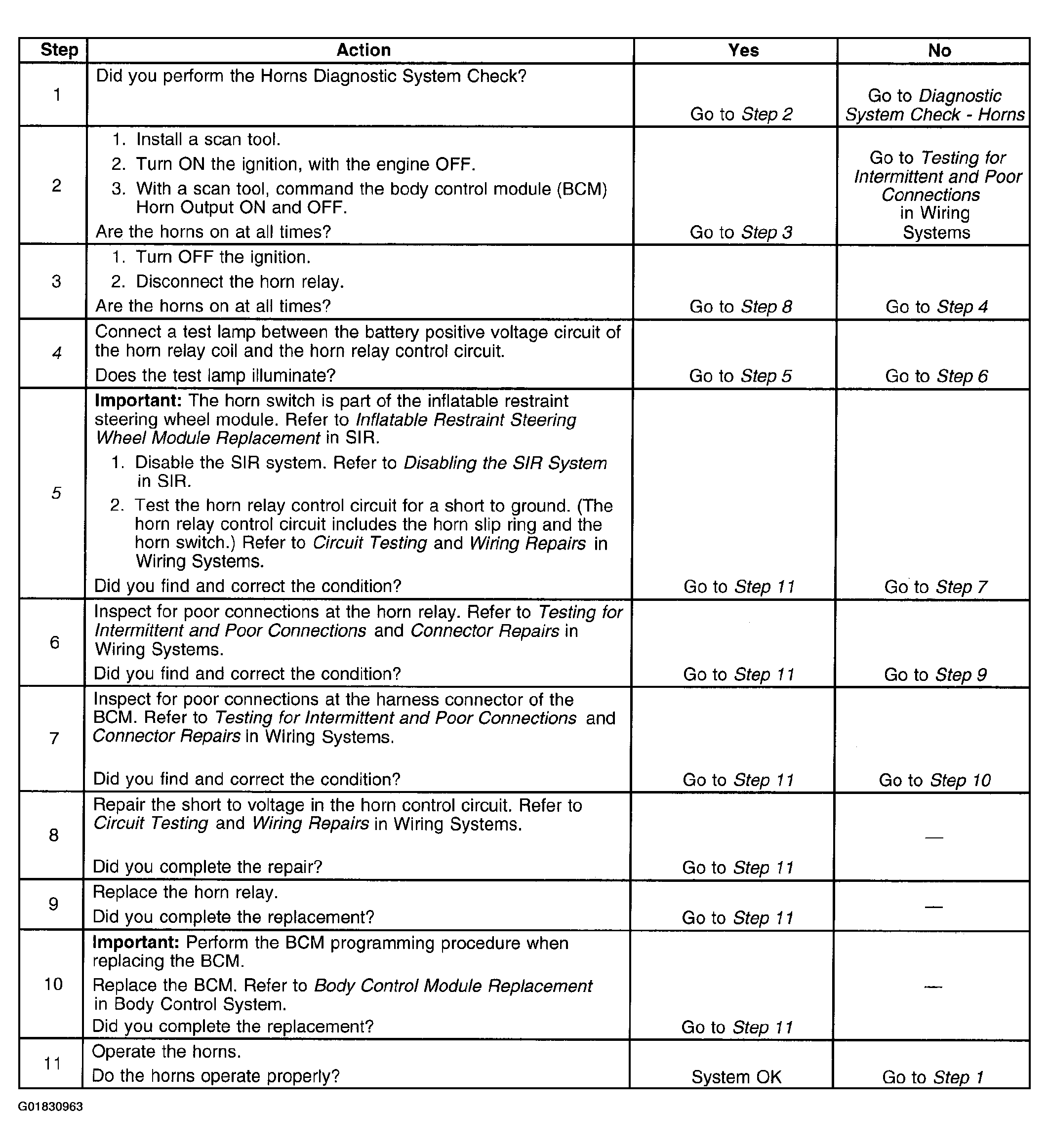

The number(s) below refer to the step number(s) on the diagnostic table.
- 4. Tests if ground is constantly being applied to the horn relay.
- 5. The horn relay control circuit includes the horn slip ring and the horn switch. The horn switch is part of the inflatable restraint steering wheel module. The horn slip ring and the horn switch must be tested for a short to ground when testing the relay control circuit. Refer to CIRCUIT TESTING and WIRING REPAIRS in Wiring Systems and AIR BAG MODULES .
