Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF
Depress the rear speaker retainer. Raise the rear of the speaker slightly.

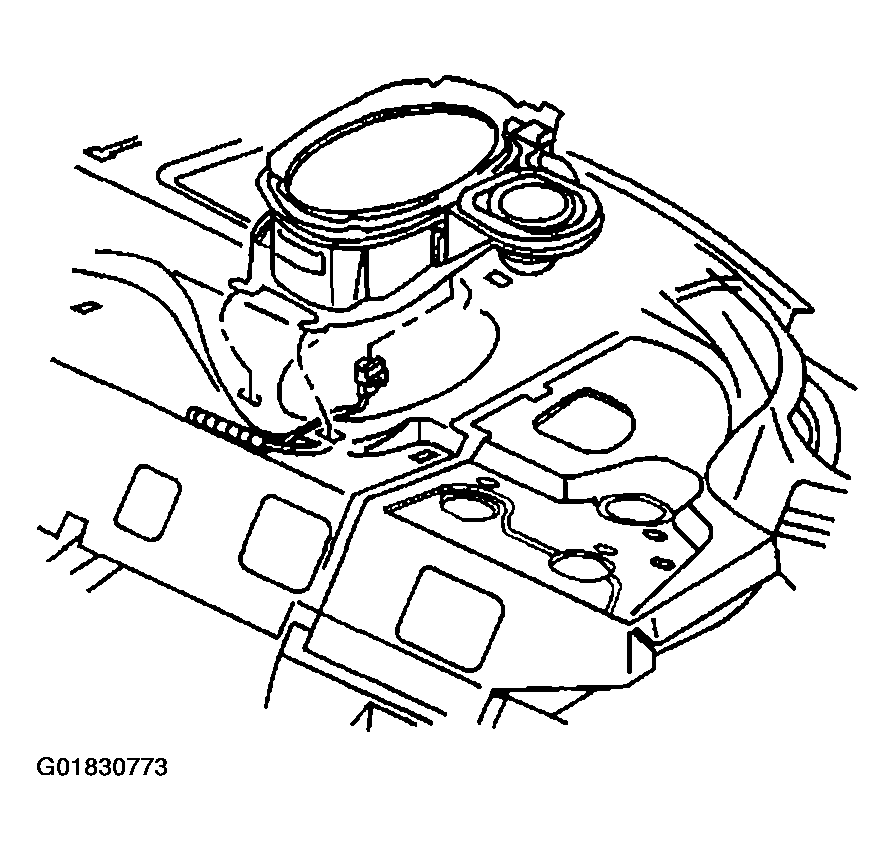

Fig 1: Remove Rear Window Trim Panel
Courtesy of GENERAL MOTORS CORP.
Slide the speaker rearward enough to release the speaker forward retaining tabs.

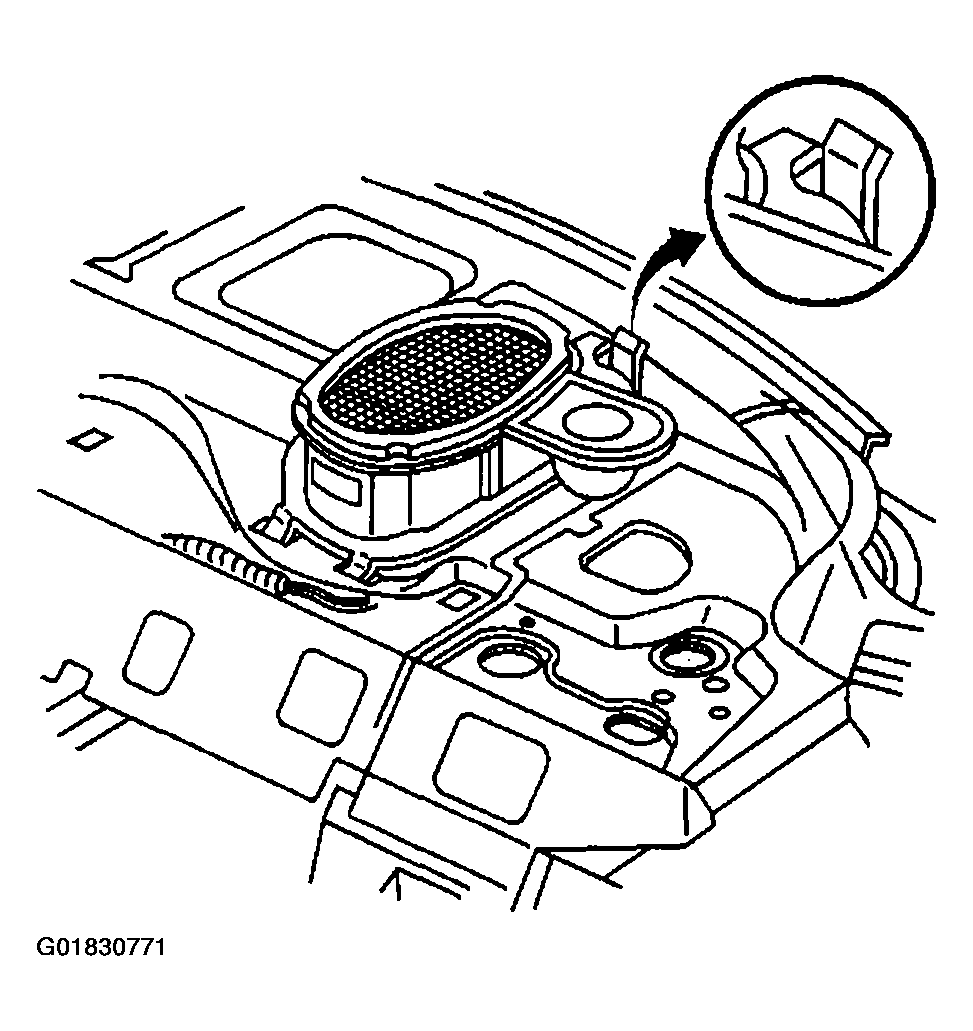

Fig 2: Release Speaker Retaining Tabs
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical/audio connector from the rear speaker.
Remove the rear speaker from the rear shelf.

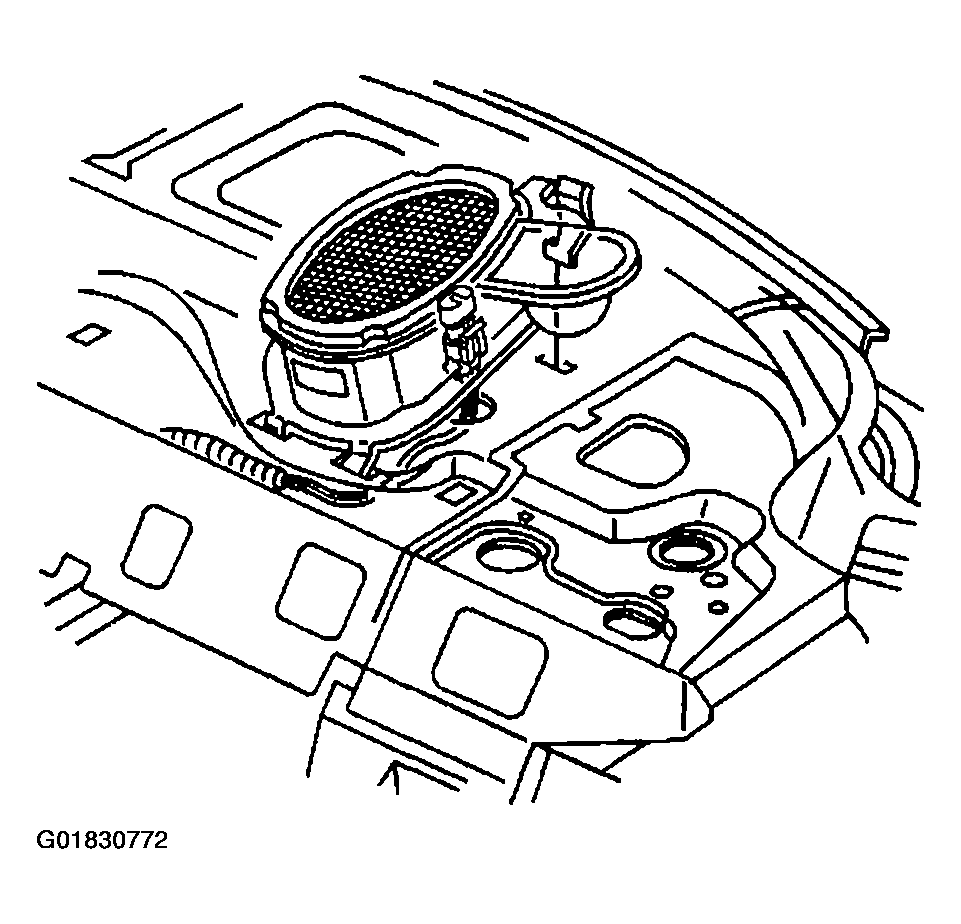

Fig 3: Remove Rear Speaker From Rear Shelf
Courtesy of GENERAL MOTORS CORP.
