Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door inner trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR
    IMPORTANT: Note the position of the speaker to the retainers before removal.
  2. Use a small flat-bladed tool to remove the speaker from the inner trim panel.

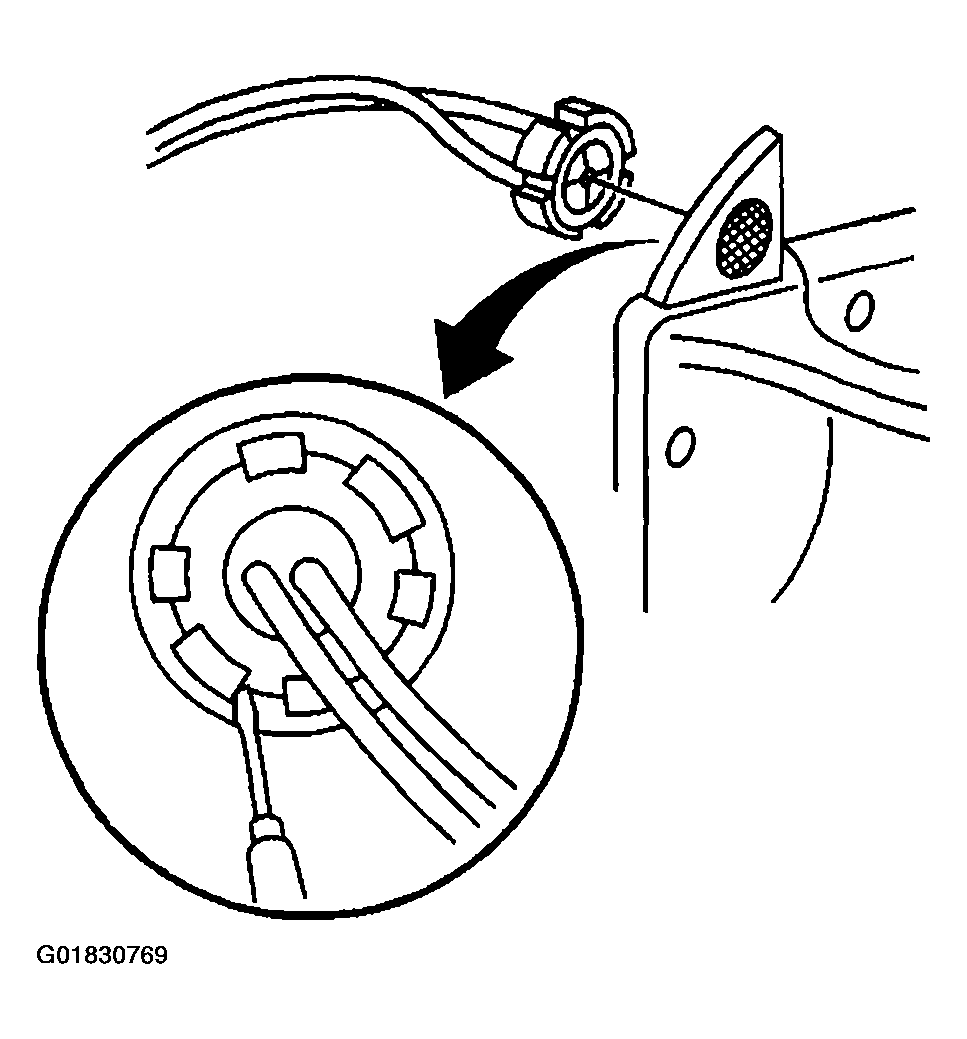

    Fig 1: Remove Front Door Inner Trim Panel & Speaker
    G01830769Courtesy of GENERAL MOTORS CORP.
